Blackmagic Design Videohub 20x20 12G
Blackmagic Design Videohub 20x20 12G is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Blackmagic Design Videohub 20x20 12G
Blackmagic Design Smart Videohub 12G 20x20
Medium 20x20 model zero latency 12G-SDI video router supports any combination of SD, HD and Ultra HD on the router at the same time. Features control panel, re-clocking and external Ethernet control.

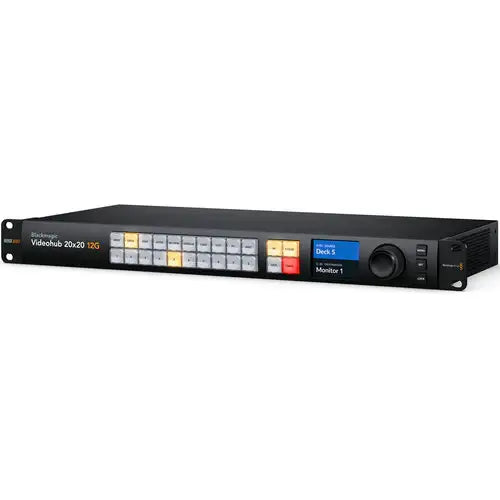

The Blackmagic Design Smart Videohub 12G 20x20 is a compact, high-performance 12G-SDI video router designed for professional broadcast and live production environments. Offering 20 inputs and 20 outputs, it supports SD, HD, and Ultra HD video formats up to 2160p60 through single 12G-SDI connections. Its built-in LCD control panel with rotary knob allows for intuitive and rapid routing decisions, making it suitable for smaller studios or mobile setups that require reliable multi-format video routing.
Features
-
20x20 12G-SDI routing capacity ideal for compact production setups
-
Supports SD, HD, and Ultra HD video signals up to 2160p60
-
Built-in color LCD control panel with rotary knob for easy operation
-
Auto-detection of SDI formats for seamless switching
-
Dual redundant power supplies for enhanced reliability
-
2RU rackmount form factor for space efficiency
-
Remote control via Ethernet and RS-422 protocols
Specifications
| Specification | Details |
|---|---|
| Model | VHUBSMAS12G020020 |

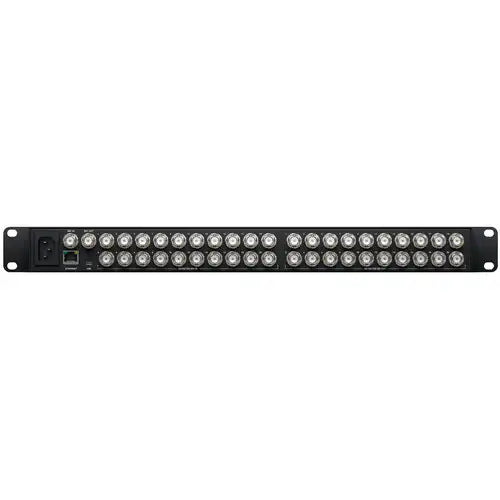

| Inputs | 20 x 12G-SDI |
| Outputs | 20 x 12G-SDI |
| Supported Video Formats | SD, HD, Ultra HD (up to 2160p60) |
| Control Panel | Built-in color LCD and rotary knob |
| External Control | Ethernet, RS-422 |
| Power Supply | Dual redundant 100-240V AC |
| Rack Units | 2RU |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
Comparison Table
| Model | Routing Capacity | Max Resolution | Rack Units | Control Panel |
|---|---|---|---|---|
| Smart Videohub 12G 20x20 | 20x20 | Ultra HD 2160p60 | 2RU | Built-in |
| Smart Videohub 12G 40x40 | 40x40 | Ultra HD 2160p60 | 2RU | Built-in |
| Smart Videohub 12G 80x80 | 80x80 | Ultra HD 2160p60 | 6RU | Built-in |
