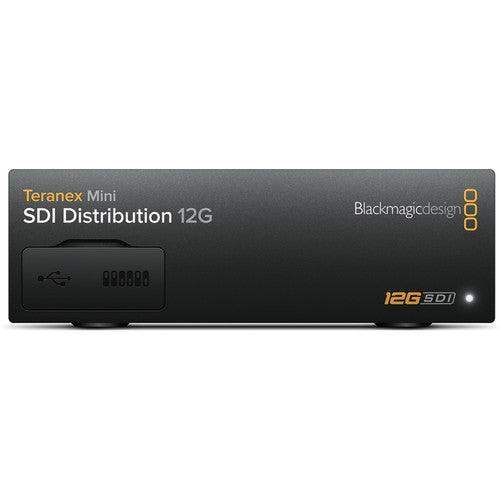

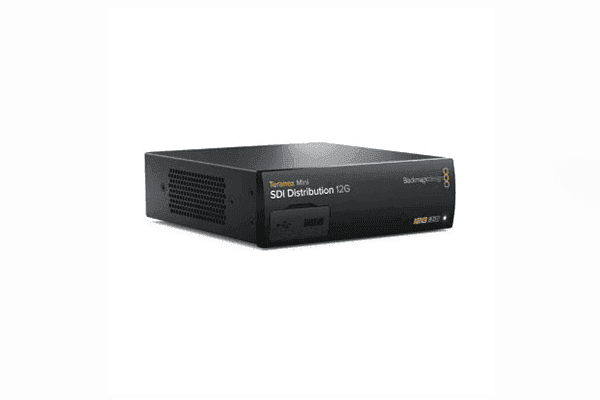

Blackmagic Design Teranex Mini SDI 12G Distribution - CONVNTRM/EA/DA
Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.

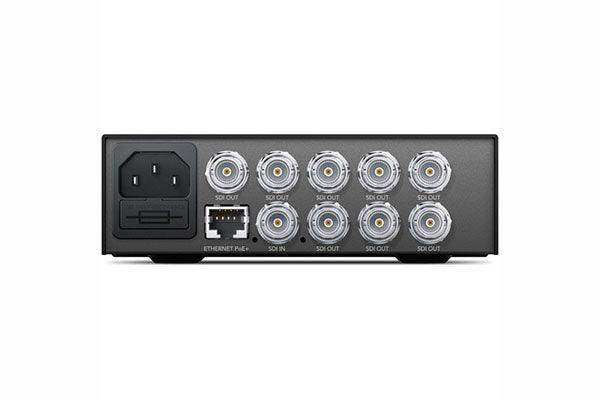

Connections:
SDI Video Input
1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Output
8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input
Multi Rate Support
Automatic switching between SD/HD/2K and 4K
Updates and Configuration
USB or Ethernet
Re-Clocking
Yes
Standards:
SD Format Support
525/29.97 NTSC, 625/25 PAL
HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
2K Format Support
1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25,
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60.
4K Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
SDI Compliance
SMPTE 259M, 292M, 296M, 372M, 425M, ST 2081 & ST 2082
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Space
YUV & RGB
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB and Ethernet.
Internal Software Upgrade
Via included updater application
Settings Control
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
Power Requirements
Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption
18 Watts
Operational Voltage Range
90 - 240V AC
Environmental Specifications
Operating Temperature
0°to 40°C (32° to 104°F)
Storage Temperature
-20°to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
What's Included:
Teranex Mini - S DI Distribution 12G
Software SD Card
Warranty
3 year Limited Manufacturer’s Warranty.
Features
- 1 x 12G-SDI SD/HD/2K/4K auto switching
- Automatic switching between SD/HD/ 2K and 4K
- USB or Ethernet
- Automatic switching between SD/HD/ 2K and 4K
Specification
| Package Weight | 2.2 lb |
| Box Dimensions (LxWxH) | 9 x 7.7 x 2.5" |
