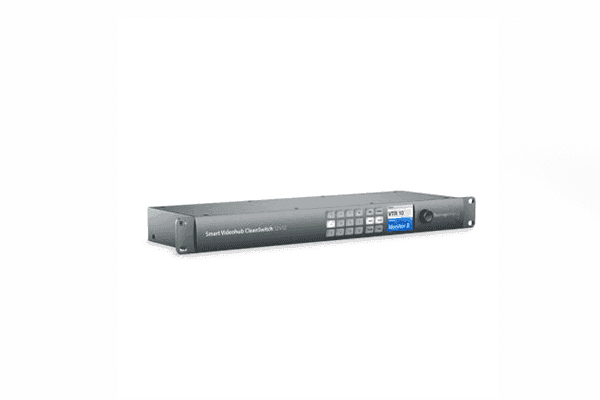

Blackmagic Design Smart Videohub CleanSwitch 12x12 - VHUBSMTCS6G1212
- 12x 6G-SDI inputs / 12x 6G-SDI outputs
- Auto-detects between SD, HD, Ultra HD 4K, and DCI 4K and instantly switches standards
- Built-in SDI reclocking on every SDI input
- Supports 8-bit, 10-bit, and 12-bit 4:2:2 and 4:4:4 signals
- 4:2:2 or 4:4:4 color sampling with 10-bit processing
- UHD 4K (3840 x 2160) up to 30p
- Supports DCI 4K (4096 x 2160) at 24p
- HD Video Resolutions up to 1080p60
- Supports 16 channels of embedded audio on each SDI signal
- Genlock
- Reference input compatible with black burst and tri-sync

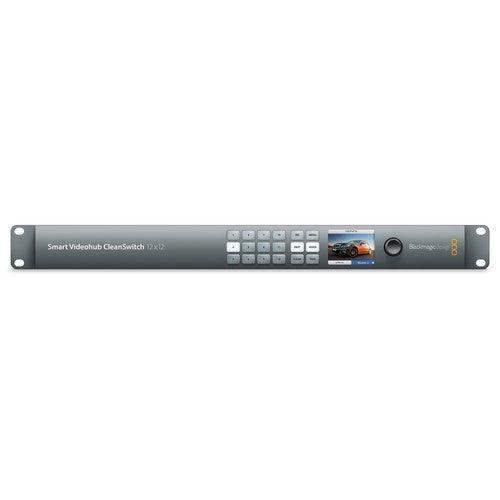

- Built-in video monitoring and spin knob control
- Push buttons on front panel
- On-screen labels support Unicode so they work in non-Roman character sets such as Chinese, Japanese, Korean, Russian, German, French, Spanish, and more
- Videohub control software included for control over Ethernet
- Ethernet control allows direct connection to the computer network and is compatible with Videohub Smart Control and Videohub Master Control panels
- Apple iPad control panel app available
- Create your own custom router control with free software developer kit
- Machined aluminum 1RU chassis
- IEC power cable required
Features
- Routing Switcher with Frame Syncing
- 12 x 6G-SDI Inputs / 12 x 6G-SDI Outputs
- Supports SD, HD, Ultra HD 4K, DCI 4K
- 4:2:2 and 4:4:4 Sampling
- 10-Bit Processing
- SDI Reclocking
- Built-In LCD with Spin Knob Control
- Push Buttons on Front Panel
- Ethernet for Remote Control
- Videohub Control Software Included
Specification
Blackmagic Design CleanSwitch Specs
| SDI Video Input | 12 x 10-bit SD/HD/6G-SDI |
| SDI Video Output | 12 x 10-bit SD/HD/6G-SDI |
| Reference Input | Blackburst and TriSync for SD, HD and UHD 4K |
| Multi-Rate Support | Auto detection of SD, HD, or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI |
| Updates | USB 2.0 high speed (480 Mb/s) interface or via Ethernet |
| Control | 12 buttons for local control of Videohub 6 buttons and scroll wheel for control of LCD display 1 x RJ45 Ethernet 1 x RS-422 input for controlling router crosspoint switching |
| Configuration | Via front panel LCD or use either RJ45 Ethernet USB 2.0 for setting IP address only |
| Reclocking | On all SDI outputs, auto switching between SD, HD, or 6G-SDI video |
| Format Support | SD Format Support 625/25 PAL 525/29.97 NTSC 525/29.98 NTSC HD Format Support 720p 50/59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K Format Support 2048x1080p 23.98/24/25 2048x1080PsF 23.98/24/25 4K Format Support 3840x2160p 23.98/24/25/29.97/30 4096x2160p 24 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M Level B, ITU-R BT.656, and ITU-R BT.601 |
| SDI Video Rates | SD-SDI: 270 Mb/s HD-SDI: 1.5 Gb/s 3G-SDI: 3 Gb/s 6G-SDI: 6 Gb/s |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Color Precision | 4:2:2 and 4:4:4 10-bit |
| SDI Audio Sampling | 48 kHz and 24-bit |
| SDI Color Space | YUV or RGB |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M |
| Software Control | Router control included free for Windows and Mac OS X |
| Internal Software Upgrade | Via included updater application |
| Display | LCD for video and menu settings |
| Power Supply | IEC power cable required 90 to 240 VAC input |
| Power Fail Protection | Router connections preserved and restored instantly at power on |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 113°F (-20 to 45°C) |
| Relative Humidity | 0 to 90% non-condensing |
| Rack Space | 1 RU |
| Dimensions | 19.00 x 1.73 x 6.30" (48.26 x 4.39 x 16.00 cm) |
| Weight | 4.14 lb (1.88 kg) |
| Package Weight | 5.15 lb |
| Box Dimensions (LxWxH) | 19.1 x 7.6 x 3.4" |
