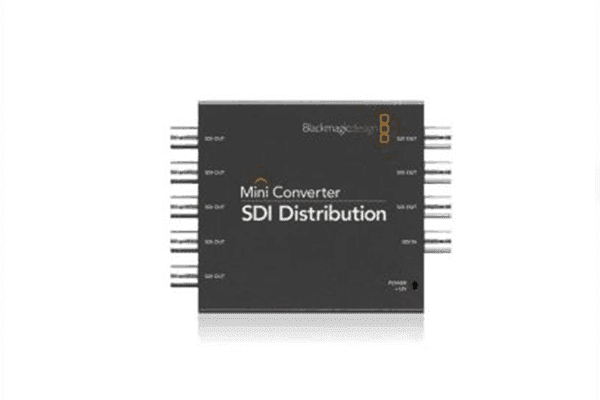

Blackmagic Design Mini Converter SDI Distribution - CONVMSDIDA
Blackmagic Design Mini Converter SDI Distribution - CONVMSDIDA is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Blackmagic Design Mini Converter SDI Distribution - CONVMSDIDA
The Mini Converter SDI Distribution supports all SDI-related transmission features, including embedded audio, ancillary data, and the 3 Gb/s transmission rate that accommodates video formats up to 1080p and 2K progressive. It even handles ASI signals – asynchronous signals that carry multiple compressed programs that can be at varying transmission speeds.
Features
- (1) SDI Input, (8) SDI Outputs
- 3G/HD/SD-SDI Auto-Switching Input
- Re-Clocked Outputs
- Ancillary Data & Embedded Audio
- 1080p & 2K Distribution
- Supports ASI Signals
Specification
Blackmagic Design Mini Converter Specs
| Inputs | 1x SDI: Detects & auto-switches between SD-, HD-, and 3G-SDI |
| Outputs | 8x SDI: Automatically match the SDI video input |
| Re-clocking | Yes |
| Supported Formats | NTSC, PAL, 720p, 1080i, 1080PsF, 1080p, 2K p, and 2K PsF |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M |
| Video Sampling | 4:2:2 and 4:4:4 |
| Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| Color Precision | 4:2:2 and 4:4:4 |
| Color Space | YUV and RGB |
| ASI Support | Yes |
| Power Supply | 12V universal power supply included |
| Power Consumption | 110V: 40mA 220V: 20mA |
| Voltage Range | 12-30V |
| Package Weight | 1.2 lb |
| Box Dimensions (LxWxH) | 5.6 x 5.4 x 2.6" |
