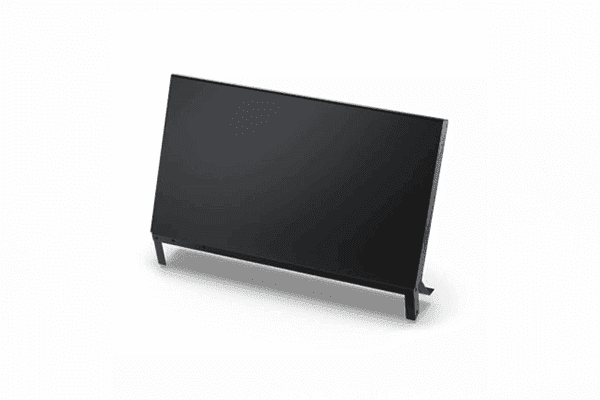

Equip every bay of your Fairlight console with a Blackmagic Design Fairlight Console LCD Monitor to achieve versatile and comprehensive visual referencing for your DaVinci Resolve 17 system. This self-contained computer and high-resolution display combo features Ethernet, HDMI, and SDI connectivity to accept video signal from various sources such as a channel control panel, a computer, and a DeckLink interface.
When configured with a Fairlight channel control panel, the Fairlight Console LCD Monitor provides graphical feedback for the panel's controls, even as you adjust them in real time. Paired with a Fairlight Audio Editor, this LCD monitor will show you the DaVinci Resolve GUI without relying on an additional monitor. Run a video feed from your DeckLink or UltraStudio interface into the BNC SDI input to use the Fairlight Console LCD Monitor for lip sync checks with full-screen video previewing.
Depending on the task, you'll see individual channel information in-line with each fader strip below, all parameters when used in single-channel mode, or all controls for master mode. Previewing the video program while mixing and editing allows you to see the talent up close; you get a detailed view of character faces for checking lip sync. You can add a Fairlight Console LCD Monitor to every bay.
Features
- For DaVinci Resolve 17 Systems
- Add a Monitor per Fairlight Console Bay
- Graphical Channel Control Feedback
- Shows DaVinci Resolve User Interface
- Full-Screen Video Preview Monitor
- Ethernet, HDMI, and SDI Connectivity
- USB Type-C Port for Configuration
- Internal Power Supply
Specifications
Blackmagic Design DV/RESFA/LCDMCS Specs
| OS Compatibility | macOS 10.15 or Later Windows 10 (64-Bit) |
| Ports | 1 x RJ45 Ethernet (10/100/1000 Base-T) 1 x HDMI Type-A Female Input 1 x BNC Female 3G-SDI Input 1 x USB Type-C (Software Configuration and Software Updates) |
| SDI Rate | 1.5G, 3G |
| HDMI Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| SDI Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, and 1080i60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, and SMPTE 425 Level A and Level B |
| SDI Video Sampling | 4:2:2 |
| SDI Color Precision | 10-Bit |
| SDI Color Space | YUV |
| Power Supply | Internal: 100 to 240 VAC at 50/60 Hz, IEC C14 Mains Input |
| Power Usage | 20 W Maximum |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Relative Humidity | 0 to 90% Noncondensing |
| Dimensions | 19.3 x 4.8 x 12.9" / 49 x 12.1 x 32.8 cm |
| Weight | 9.9 lb / 4.5 kg |
| Package Weight | 12.69 lb |
| Box Dimensions (LxWxH) | 22 x 17.5 x 6.6" |
