Blackmagic Design Decklink Quad 3G-SDI Mezzanine Card for Decklink 4K Extreme 12G - BDLKHDEXTR4KQUAD
Blackmagic Design Decklink Quad 3G-SDI Mezzanine Card for Decklink 4K Extreme 12G - BDLKHDEXTR4KQUAD is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Blackmagic Design Decklink Quad 3G-SDI Mezzanine Card for Decklink ...

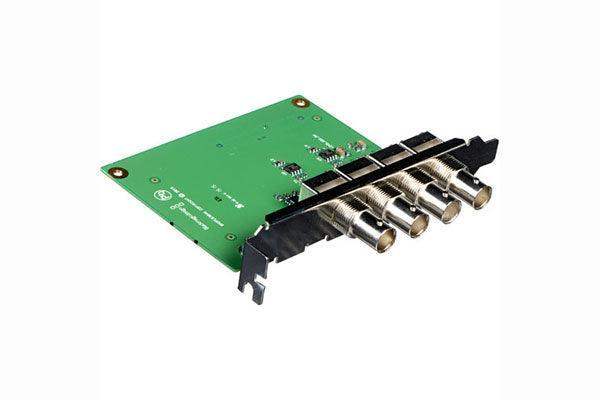

The daughter card features four BNC connectors that support 3G-SDI. The four connectors are grouped into two input and two output connectors that work in conjunction with the four 12G-SDI connectors on the main board. Replacing your original daughter (mezzanine) card with this one expands your cards input and output capabilities.
- Replacing the original HDMI/optical fiber output daughter card with the Quad 3G-SDI board allows you to input and output a Quad 3G-SDI signal, which the main board cannot do by itself. Another input/output capability of the card is to input a 12G-SDI signal and output a Quad 3G-SDI signal.
- Requires 10.4.2 driver to operate.
- This daughter card only works when connected to the optional main board.
Features
- For Decklink 4K Extreme 12G Main Board
- 2 x 3G-SDI Inputs, 2 x 3G-SDI Output
- Replacement for Original Daughter Card
Specification
Blackmagic Design Quad Specs
| Minimum Requirements | Driver: 10.4.2 |
| Connectors | 4 x BNC (Quad Link 3G-SDI) |
| Package Weight | 0.3 lb |
| Box Dimensions (LxWxH) | 5.4 x 5.3 x 1.1" |
