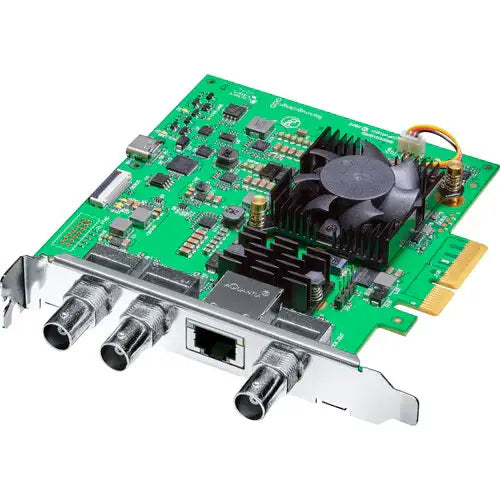

Blackmagic Design BDLKIPFIP/SDI/HD DeckLink IP/SDI HD
This card straddles the old and the new—combining SMPTE-2110 IP workflows with traditional SDI capture and playback in a single low-profile PCIe card. It's built for facilities not quite ready to ditch SDI but needing to move into IP. It’s an elegant compromise, but with that comes complexity—managing dual tech stacks isn't for the faint of heart or under-equipped.
Features
-
Dual-channel SMPTE-2110 IP capture and playback plus dual 3G-SDI inputs and outputs
-
Supports HD formats up to 1080p60 and legacy SD formats
-
Works with industry-standard codecs including ProRes, DNxHD/HR, AVC-Intra, HEVC, and uncompressed 10-bit 4:4:4
-
Frame buffer “video firewall” ensures network isolation and security
-
NMOS IS-04 and IS-05 compliant for network device discovery and connection management
-
Compatible across macOS, Windows, and Linux, and integrates with major editing/broadcast software
-
PCIe Gen 2 x4, low-profile form factor fits compact and rack-mounted systems
Specifications
| Specification | Details |
|---|---|
| Interface | PCIe Gen 2 x4, low profile |
| Network Connection | RJ45 10G Ethernet (SMPTE-2110) |
| SDI Ports | 2× 3G-SDI inputs and 2× outputs |
| Channels | 2 IP capture + 2 IP playback + 2 SDI inputs + 2 SDI outputs |
| Supported Formats | SD and HD up to 1080p60 |
| Codec Support | ProRes, DNxHD/HR, AVC-Intra, HEVC, uncompressed 10-bit 4:4:4 |
| Security | Frame buffer video firewall |
| IP Control | NMOS IS-04 and IS-05 compliant |
| OS Compatibility | macOS, Windows, Linux |
| Warranty | 3 years |
Comparison Table
| Feature / Model | DeckLink IP SDI HD | DeckLink IP HD Optical | DeckLink IP HD (RJ45) |
|---|---|---|---|
| Network Interface | 10G RJ45 + 3G-SDI | 10G Optical SFP+ | 10G RJ45 |
| SDI I/O | 2 inputs + 2 outputs | None | None |
| Channels (Capture/Playback) | 2 IP + 2 SDI | 2 IP | 2 IP |
| Max Resolution | 1080p60 | 1080p60 | 1080p60 |
| Security Firewall | Yes | Yes | Yes |
| MSRP (approximate) | ~$475 | ~$415 | ~$415 |
