LG LSBC Compact Series LSBC029-GD 2.9mm Pixel Pitch Indoor LED Signage Display Cabinet
LG LSBC Compact Series LSBC029-GD 2.9mm Pixel Pitch Indoor LED Signage Display Cabinet is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
LG LSBC Compact Series LSBC029-GD 2.9mm Pixel Pitch Indoor LED Sign...
LSBC Compact Series | Vivid Color Expression Powered by HDR
With HDR (HDR10, HDR10 Pro) support you can display content that has vivid colors that create an impact on customers. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy content.

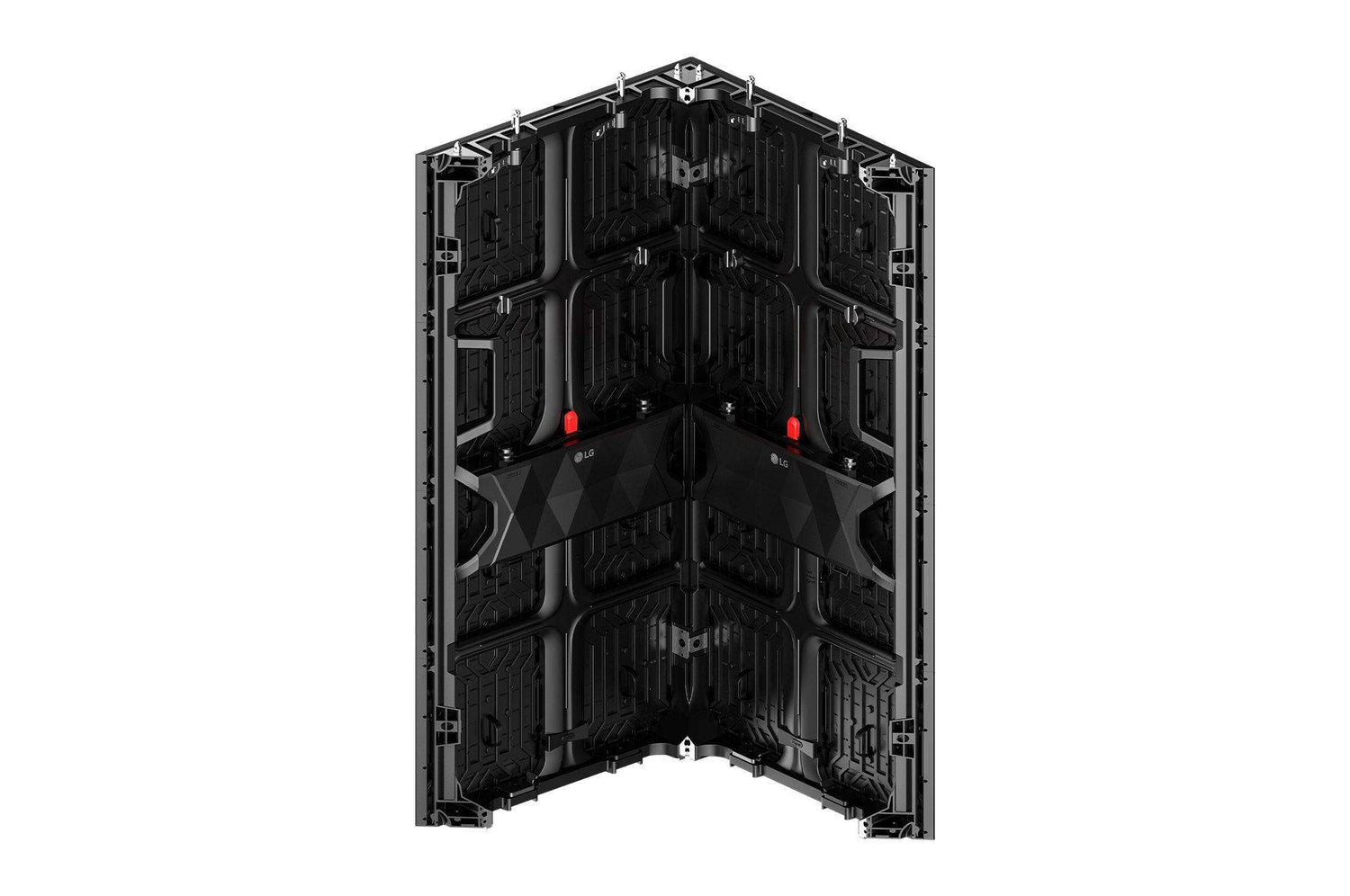

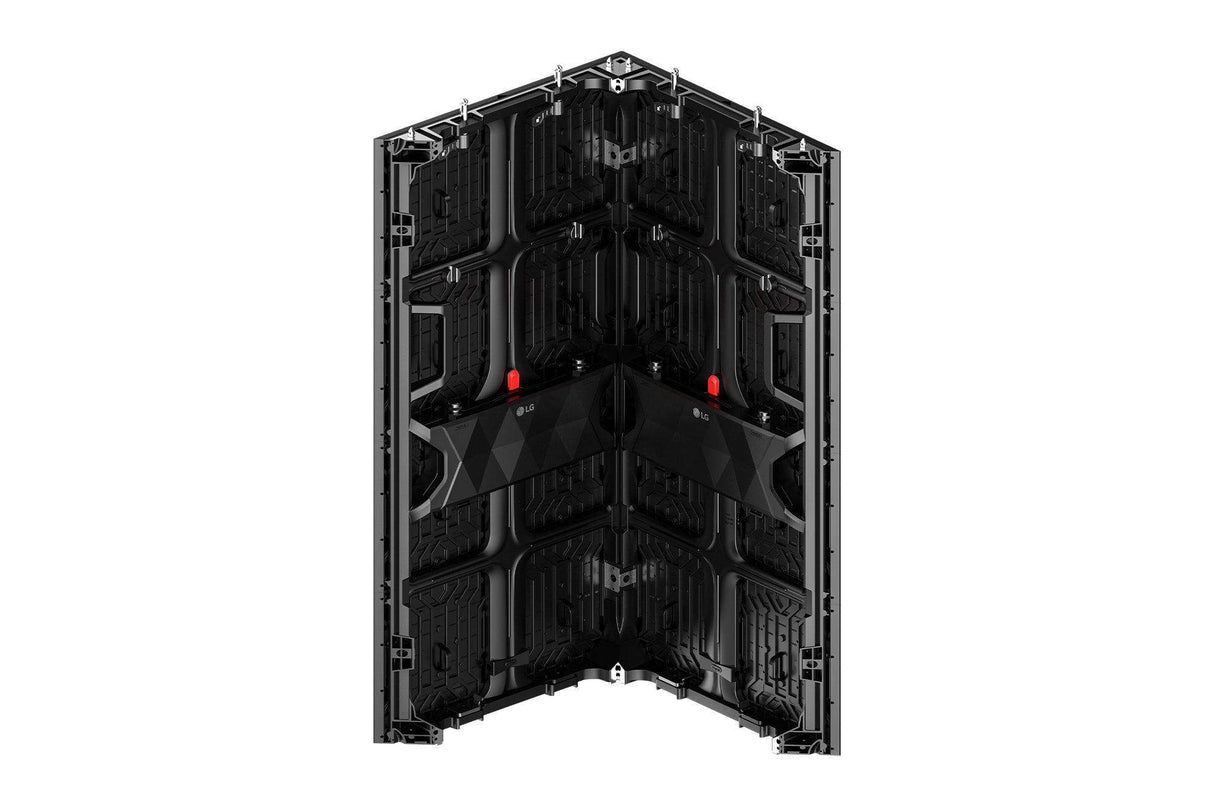

90° Corner Installation Available
The LSBC cabinet is designed to create a virtually seamless 90 degree corner. This option is a free add-on that must be requested.

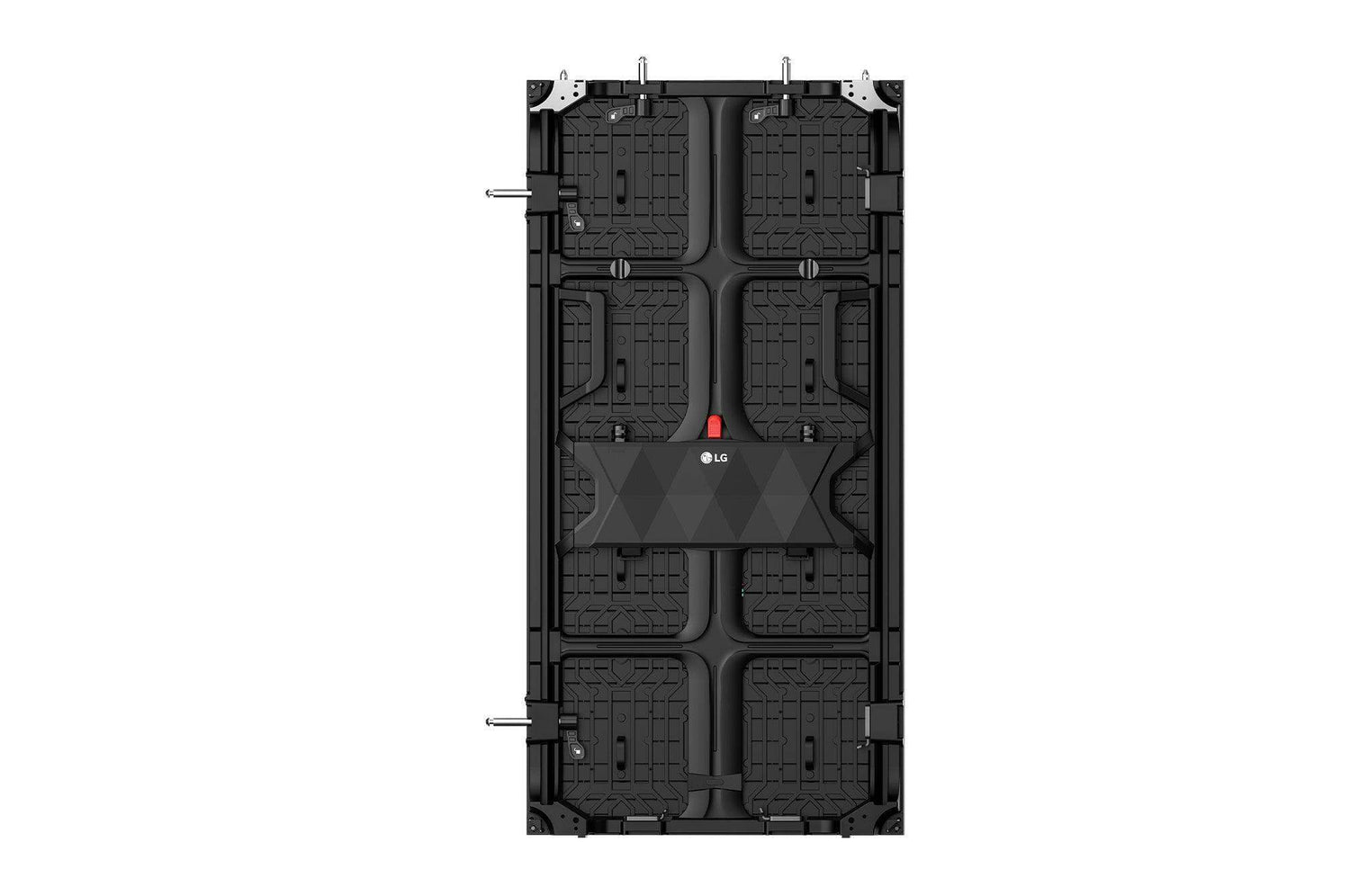

Front or Rear Installation & Maintenance
Easy access to front or rear cabinet for maintenance.
Quick Lock & Flip Design
The quick lock system & flip design allows for easy installation and maintenance.
Compatibility with LG Software Solution
Powered by LG's high performance system controller and webOS™, the LSBC series is compatible with LG software solutions, including SuperSign CMS, LED Assistant, and ConnectedCare™, which help customers operate their own business flawlessly.
Features
- 2.9 mm Pixel Pitch
- 1000 Nit Brightness & Expressive Colors with HDR
- Front & Rear Accessible
- Quick Lock & Flip Design for Easy Install
- 90° Corner Installation Available
Specs
-
Physical Parameter
Pixel Configuration 3 in 1 SMD Pixel Pitch (mm) 2.976 Module Resolution (W x H) 84 × 84 Module Dimensions (W x H, mm) 250 × 250 Weight per Module (kg) 0.70 No. of Modules per Cabinet (W × H) 2 x 4 Cabinet Resolution (W × H) 168 x 336 Cabinet Dimensions (W × H × D, mm) 500 x 1,000 x 68 Cabinet Surface Area (m²) 0.500 Weight per Cabinet (kg/cabinet) 12.0 Weight per Square Meter (kg/m²) 24.0 Physical Pixel Density (pixels/m²) 112,896 Flatness of Cabinet 0.5 Cabinet Material Die Casting Aluminum Service Access Front or Rear -
Optical Parameter
Max. Brightness (After Calibration) 1,000 Color Temperature 3,200-9,300 Visual Viewing Angle (Horizontal/Vertical) 160 × 140 Brightness Uniformity 97% Color Uniformity ±0.003 Cx,Cy Contrast Ratio 5,000 : 1 (Typ.) Processing Depth (bit) 16 (HDR10, HDR10 Pro) -
Electrical Parameter
Power Consumption (W/Cabinet, Max.) 300 Power Consumption (W/Cabinet, Avg.) 100 Power Consumption (W/m², Max.) 600 Power Consumption (BTU/Cabinet, Max.) 1,024 Power Consumption (BTU/Cabinet, Avg.) 341 Power Consumption (BTU/㎡, Max.) 2,047 Power Supply (V) 100 to 240 Frame Rate (Hz) 50 / 60 Refresh Rate (Hz) ≥3,840 -
Operation Conditions
Lifetime (Hours to Half Brightness) 100,000 Operating Temperature (°C) -20 to +40 Operating Humidity 10-90% RH IP rating Front / Rear IP5X / IP5X
