Lab Gruppen D 10:4L 1000W Amplifier with 4 Output Channels, Lake DSP & Dante Networking - D104LUS
Lab Gruppen D 10:4L 1000W Amplifier with 4 Output Channels, Lake DSP & Dante Networking - D104LUS is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Lab Gruppen D 10:4L 1000W Amplifier with 4 Output Channels, Lake DS...
1000W Amplifier with 4 Flexible Output-Channels, Lake Digital Signal Processing and Digital Audio Networking for Installation Applications
The Lab.Gruppen D 10:4L is a 1000W amplifier with four flexible output channels, Lake Digital Signal Processing (DSP), and Dante digital audio networking for installation applications. The D 10:4L is designed to provide an optimal solution for the most demanding digitally networked installed sound applications in settings such as arenas, theme parks, performing arts centers, racecourses, and other large venues. The total burst power for all four amplifier channels is 1000W.
Features
- For Large Commercial Sound Installations
- Lake Digital Signal Processing (DSP)
- Dante Digital Audio Networking
- 1000W Total Burst for 4 Amp Channels
Specs
General
| Processing / Network |
Lake / Dante |
| Number of amplifier channels |
4 |
| Total burst power all channels (share among channels with RPM) |
1000 W |
Max output power (all channels driven)1
| 2 ohms |
250 W |
| 2.67 ohms |
250 W |
| 4 ohms |
250 W |
| 8 ohms |
250 W |
| 16 ohms |
250 W |
| Hi-Z 25 V |
250 W |
| Hi-Z 70 V |
250 W |
| Hi-Z 100 V |
175 W |
Max output power single channel (all models)1
| 2 ohms |
850 W |
| 2.67 ohms |
1000 W |
| 4 ohms |
1000 W |
| 8 ohms |
1000 W |
| 16 ohms |
600 W |
| Hi-Z 25 V |
500 W |
| Hi-Z 70 V |
1000 W |
| Hi-Z 100 V |
700 W |
Amplifier output modules (all models, all channels)
| Peak output voltage |
142 Vpk |
| Max output Current |
30 Apk |

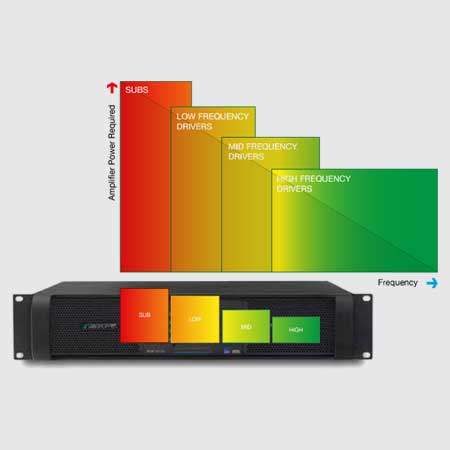

| Rational Power Management (RPM) |
Share “Total burst power” of the product freely among channels. Any channel can scale up to the “single channel max power” |
| Default voltage limitation (can be lifted with RPM configuration) |
63 Vpk |
| Protection features |
Current Average Limiter (CAL), Very High Frequency Protection (VHF), Direct Current Protection (DC), Short Circuit Protection, Current-Clip Limiter, Voltage Clip Limiter, Temperature protection |
Amplifier platform
| Inter Sample Voltage Peak Limiter (ISVPL) |
Configurable Peak voltage threshold and profile |
| Amplifier gain |
Digital configurable amplifier gain 22 - 44 dB |
| Dynamic range |
> 112 dB |
| Load impedance analysis |
Yes |
| Temperature control |
Temperature regulated fans (front-to-rear airflow) and show must go on limitation (ATL, PTL) |
| Internal Sample Rate / Data path |
96 kHz / 32 bit floating point |
| Product propagation delay AES 96 kHz / analog input |
1.61 / 1.68 ms |
Lake processing
| Loudspeaker processing |
Up to 4 modules of Classic/linear-phase/FIR crossover, EQ, delay, LimiterMax™ - peak and RMS limiters |
| System tuning |
Group control with Raised Cosine™ MESA EG™ asymmetric filters |
| Input redundancy / Matrix |
Automatic 4 level input redundancy / 4 input mixers |
| System integration |
Comprehensive 3rd party protocol over UDP Ethernet |
Dante Audio Network
| Dante I/O |
8 x 8 |
| Network topology / redundancy |
Flexible topology / Supports daisy-chained and Dual redundant networks |
| Sample Rates / Transport |
48, 96 kHz / Uni + Multicast |
| Network latency |
0.25, 0.5, 1.0, 2.0, 5.0 ms |
AES Inputs
| Inputs |
4 AES inputs |
| Supported sample rates / resolution |
44.1, 48, 88.2, 96, 176.4, 192 kHz / up to 24 bits |
| Sample rate conversion THD+N 20 Hz - 20 kHz unweighted |
0.0000003 |
Analog Inputs
| Inputs |
4 high quality inputs with Iso-Float ground isolation |
| Maximum input / digital reference |
+26 dBu / +21 dBu |
| Sampling rate / Resolution |
96 kHz / 24 bit |
| Input impedance balanced / unbalanced |
20 / 10 kOhm |
| THD+N (typical at 1 kHz unweighted) |
0.0000022 |
| THD+N (typical at 20 Hz and 20 kHz unweighted) |
0.0000033 |

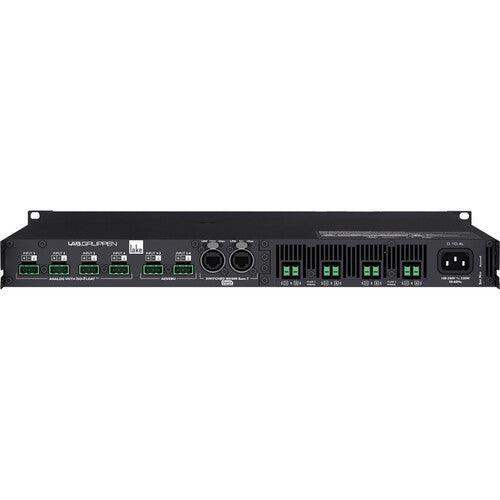

Back panel Interface
| Analog inputs |
4 x Terminal block connectors analog input with +, - and ground |
| AES inputs |
4 x Terminal block connectors analog input with +, - and ground |
| Output connectors |
4 x 2 pole Terminal block connectors rated at 1000 V / 41 A (exceeding amplifier capacity) Can take up to 8 mm2 (8.2 AWG) cables |
| Ethernet Ports |
2 x RJ45 Lake Controller, Dante controller and/or DLM (3rd party protocol) |
| Detachable mains cord |
Detachable locking 3-pin IEC rated at 250 V / 16 A |

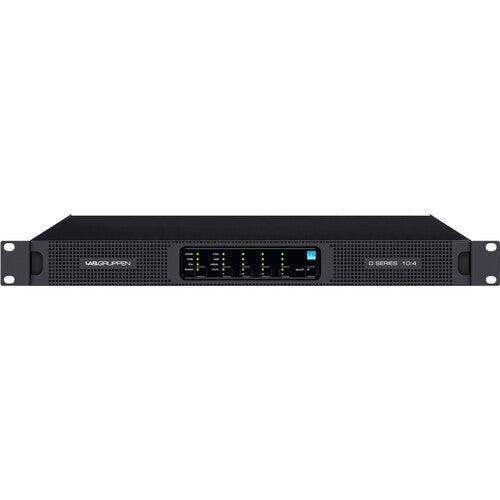

Front-panel user interface
| System status indication |
3 x tri-color LED. FRAME, TEMP, PSU for device status indication |
| Channel status indication |
3 x tri-color LED per channel. Status indication separated for channel LOAD, AMP, SIGNAL status |
| Mute |
Per channel touch button for MUTE control and tri-color LED for indication |
| Power |
Touch button for ON/STANDBY control and tri-color LED for power state indication |
| Select |
Touch button and LED for bidirectional device software select functionality |
Mains Power
| Nominal voltage |
100 - 240 Volt AC 50 - 60 Hz |
| Operating voltage |
70 - 265 V AC 45 - 66 Hz |
| Mains wall plug |
Selectable on order CEE 7/7 “Schuko” 230 V / 16 A, NEMA 5-15 125 V / 15 A, BS1363-A 250 V / 13 A, IA16A3 250 V / 16 A, AU/NZ 250 V / 10 A, JP 125 V / 15 A, CPCS-CCC 250 V / 10 A |
Power supply features
| Soft start / Inrush power |
Yes |
| Power factor correction |
> 0.98 for mains power > 300 W |
| Regulated switch mode power supply (R.SMPS) |
Yes |
| Breaker Emulation Limiter (BEL) |
No |
| BEL max current threshold |
Fixed 8 A |
| Power Average Limiter (PAL) |
Yes |
| Under Voltage Limiter (UVL) |
Yes |
| Mains undervoltage and overvoltage protection and mains glitch tolerance |
Yes |
Dimensions
| Rack rail to rear panel |
W: 483 mm (19”), H: 44 mm (1 U), D: 425 mm (16.7”) |
| Overall depth front-rear support |
D: 463 mm |
Weight
| Weight |
7.8 kg (17.1 lbs) |
Finish
| Finish |
Black painted steel chassis with grey painted steel front with detachable grille |
