K-Array Mugello KH2P I Ultra-thin 8+16 passive double 8" line array element (Black)
K-Array Mugello KH2P I Ultra-thin 8+16 passive double 8" line array element (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
K-Array Mugello KH2P I Ultra-thin 8+16 passive double 8" line ...

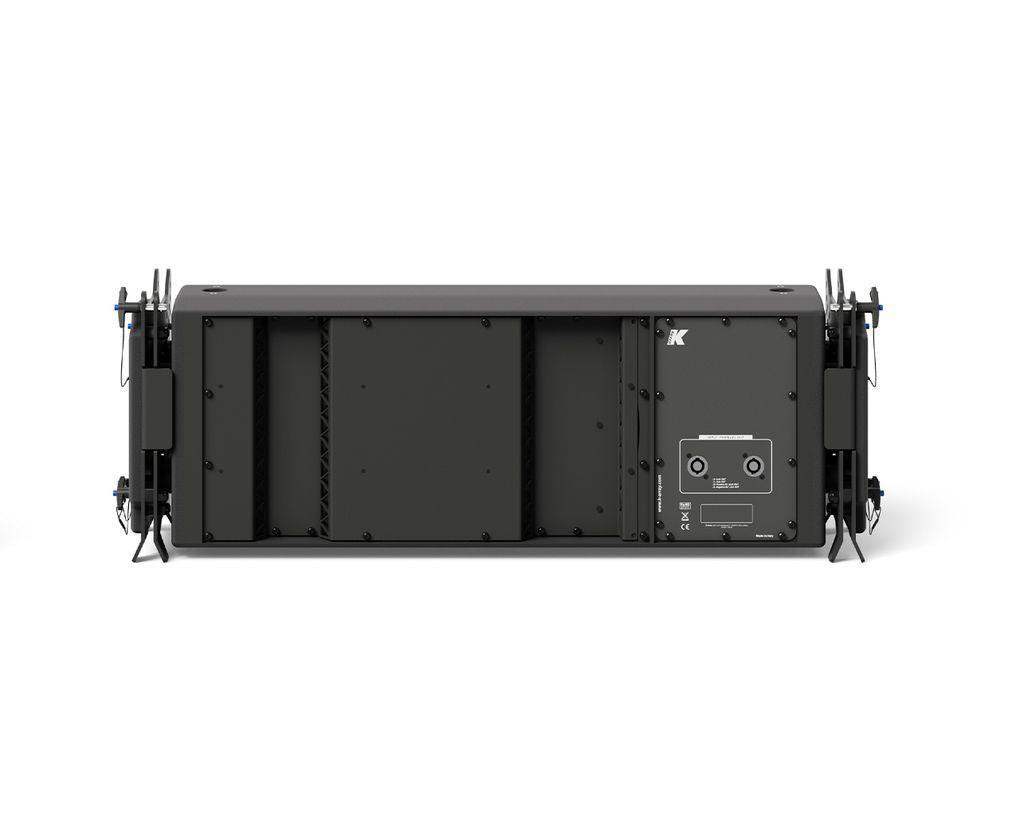

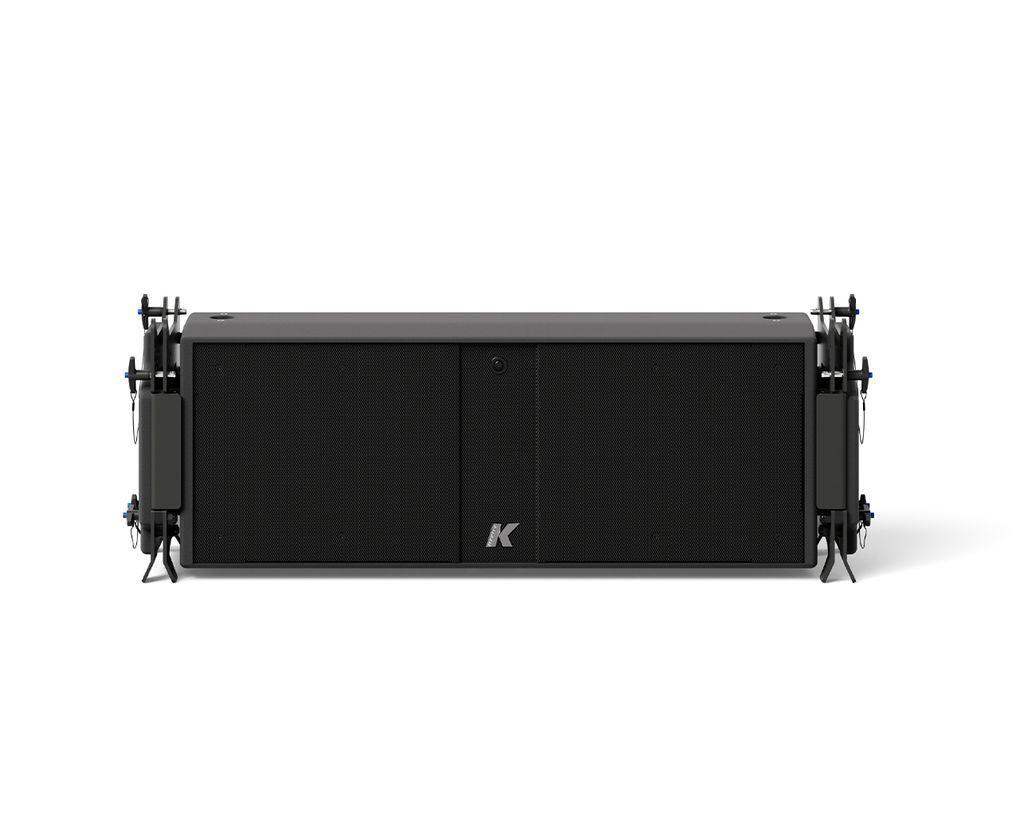

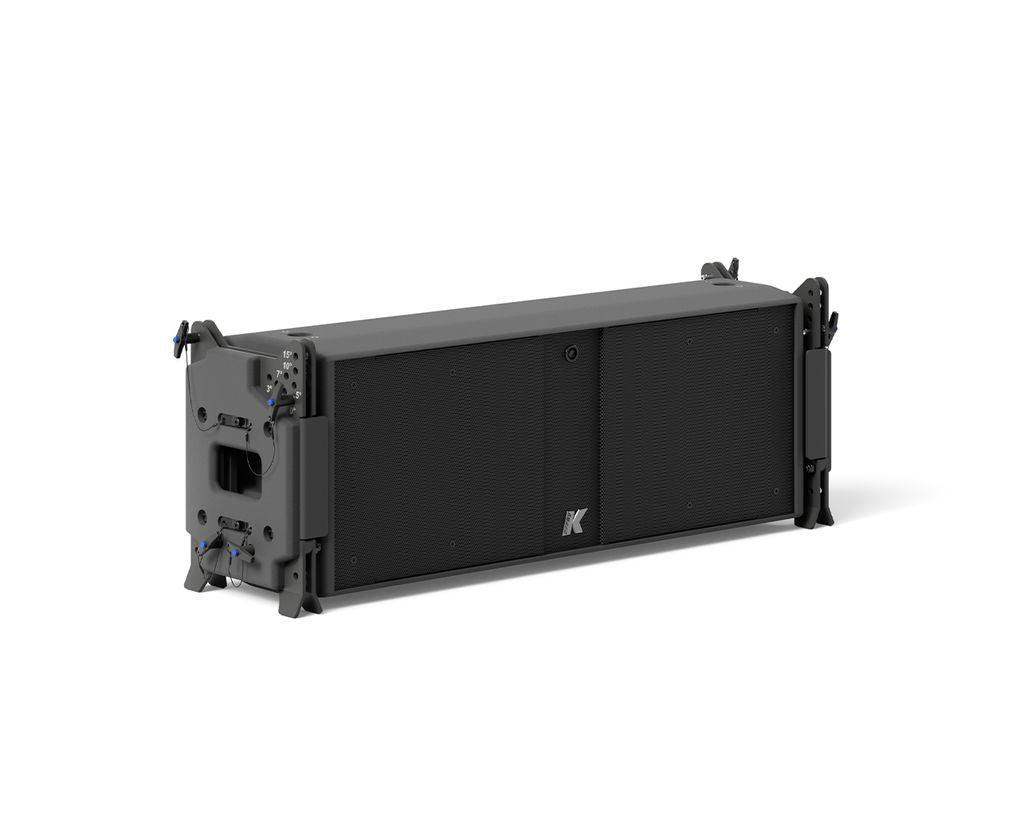

Incredibly flat and lightweight, the new Mugello-KH2P I is the smaller line array element in K-array Mugello Series. The passive speaker is comprised of two 8” neodymium magnet woofers each with a 2.5” voice coil and two compression drivers with a 2.5” voice coil.
The Slim Array Technology of the Mugello-KH2P I allows for a better impulse response and guarantees unique cardioid polar pattern over its entire frequency range. Along with the mechanical steering, K-array’s Electronic Beam Steering technology gives the Mugello-KH2P I the ability to digitally adjust the dispersion of the sound beams to ensure the perfect aiming of the sound field.
Specs
General
-
Type:
Passive line array element
-
Transducers:
2x 8” neodymium magnet woofer with 2.5” voice coil
2x compression driver with 2.5” voice coil -
Frequency Response:
120 Hz – 19 kHz (-6 dB)
(1) -
Max SPL:
142 dB peak
(2) -
Rated Power:
Bi-amp:
HF: 250 Wpeak
LF: 1200 Wpeak -
Nominal Impedance:
HF: 16 ohm
LF: 8 ohm -
Coverage:
V. 20° digitally adjustable in array | H. 110°
-
Connectors:
SpeakON 1
1+ 1- Driver 250W@16ohm
2+ 2- Woofer 1200W@8ohm
SpeakON 2
Link (SpeakON 1)
Handling and Finishes
-
Dimensions (W x H x D):
860 x 370 x 210 mm (33.8 x 14.6 x 8.3 in) with rigging hardware
735 x 285 x 200 mm (28.9 x 11.2 x 7.9 in) net dimensions -
Weight:
24 kg / 53 lb (with rigging hardware)
-
Material:
Polyurea coated birch plywood
-
Colors:
Black, White, Custom RAL
