Extron TLP Pro 1225TG 12" Tabletop TouchLink Pro Touchpanel

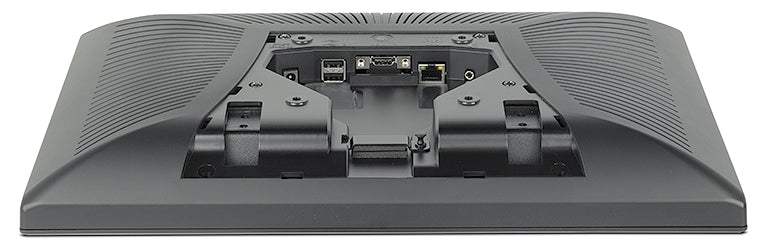

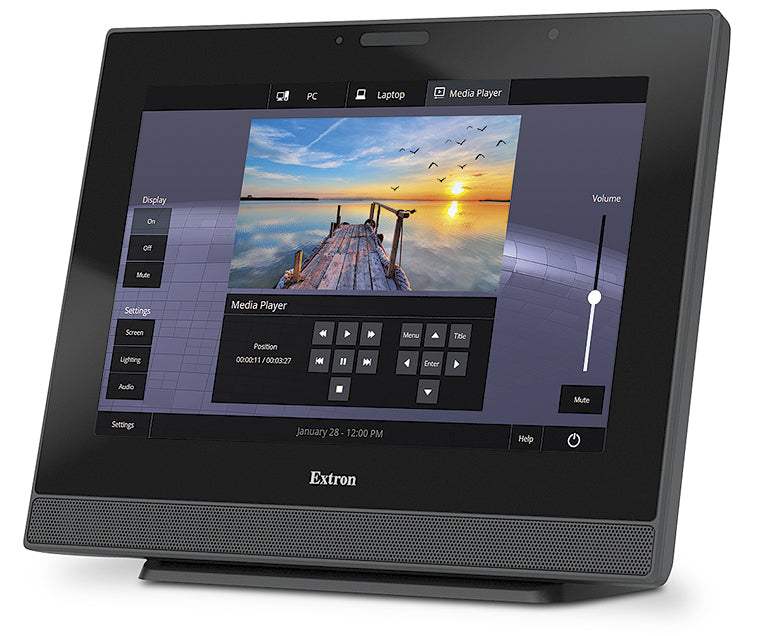

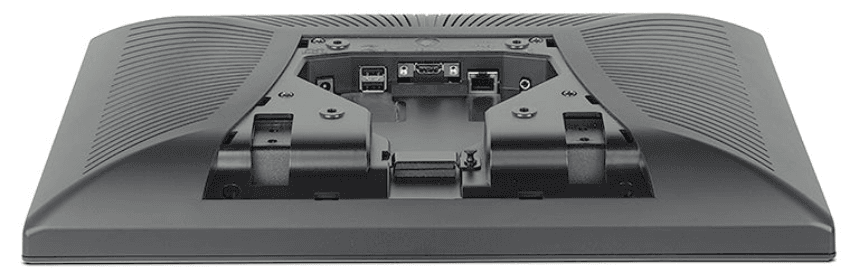

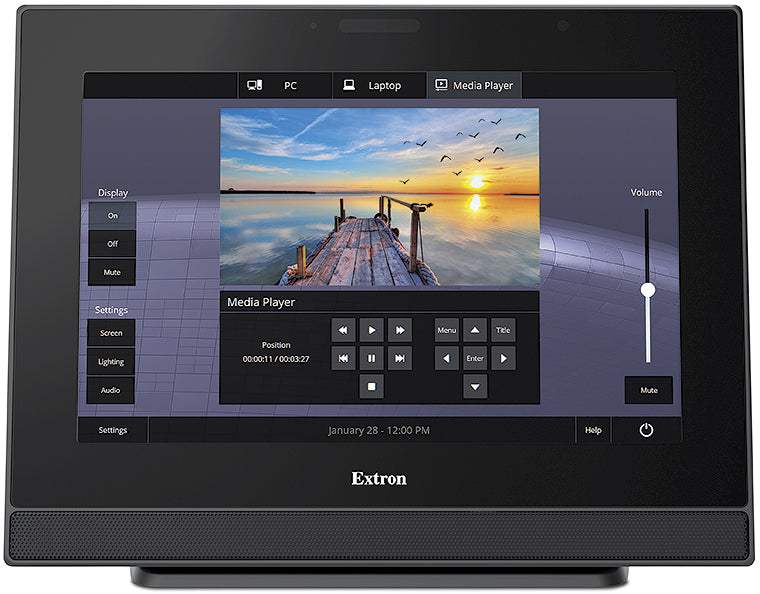

The Extron TLP Pro 1225TG is a 12” tabletop touchpanel with a capacitive, edge-to-edge glass touchscreen. It is designed to control video, audio, lighting, shades, HVAC, security, and other systems within virtually any environment. It is equipped with a 1280x800 resolution capacitive touchscreen and provides a vibrant look and a very responsive control surface. The TLP Pro 1225TG features video preview inputs that support high resolution HDCP-compliant video from HDMI sources and Extron XTP devices. Its stylish design and powerful features make it ideal for control applications that require a fully customizable tabletop touchpanel with a large control surface and multi-source video preview.

The TLP Pro 1225TG works with any Extron control processor and HC 400 Series system and is designed for use in AV system applications that require complete, interactive control of a broad range of source devices. TouchLink Pro touchpanels operate using standard network infrastructure and are easy to install with reliable and cost effective Ethernet cable.

All TouchLink Pro touchpanels can be customized using Extron GUI Designer software. This powerful interface design software offers ready-to-use templates for a wide variety of rooms and presentation environments. These designs may be used as is, or customized for the application by simply changing individual graphic elements.

Features

• 12” capacitive touchscreen with 1280x800 resolution and 16 million colors — Vibrant, edge-to-edge glass display with a more responsive control surface.
• Ultra-fast quad-core processor for quick page loads
• Full-motion video preview and monitoring with HDMI and XTP inputs
• Works with any Extron control processor and HC 400 Series system
• PoE+ compatible — Product is powered directly by a PoE+ switch or injector, eliminating the need for bulky local power supplies.
• Built-in speakers provide stereo audio — For video preview and audible feedback from button presses.
• Light sensor adjusts screen brightness as the ambient room lighting changes
• Configurable red and green status light indicate a room's availability or call status
• Two high speed USB 2.0 ports — For future expansion.
• 3.5mm headphone jack provides local audio out from the touchpanel
• Automatic clock synchronization allows touchpanel to display the accurate time and date
• Energy-saving features:
  - Adjustable sleep timer puts touchpanel into sleep mode
  - Motion detector wakes touchpanel
• Contemporary design that complements the aesthetics of any environment
• Sits on a tabletop or installs on a VESA mount — Threaded holes in baseplate allow for secure mounting to a table, while VESA FDMI Type D 100mm mounting pattern standard is used for VESA mounting.
• The optional back box, BB 700M, can be used where local codes require a rear metal enclosure
• Kensington lock support — Allows the touchpanel to be locked to a table or other flat surface.
• Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming.
• Supports the optional SMA-1 Swivel Mount Adapter
• Supports the Extron Control App
• Manage, monitor, and control this device remotely using GVE - GlobalViewer Enterprise Resource Management software
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.

Specs

Also see our  Specs in PDF format

TLP Pro 1225TG
Display
Screen type	TFT Active matrix color LCD
Size	12.1" (30.7 cm), measured diagonally
Resolution	1280x800 (WXGA)
Pixel density	124.75 PPI
Aspect ratio	16:10
Color depth	24-bit, 16.7 million colors
Transparency	8 bit alpha channel
Brightness	340 nits (cd/m2)
Contrast	1000:1
Backlight	LED
Viewing angle	±85° horizontal, ±85° vertical
Touch screen	Capacitive
Memory
RAM	2 GB
Storage	8 GB
XTP – Interconnection between transmitter and receiver
Termination standard	TIA/EIA T568A or T568B
Signal transmission distance	330' (100m) using CAT 5e/6/7 UTP or STP cable (24 AWG or better)
Cable requirements	Solid conductor, 24 AWG or better
Cable recommendations	400 MHz bandwidth, STP (Shielded Twisted Pair)
Video input
Resolution range	640x480 @ 60 Hz through 1920x1200 @ 60 Hz includes 480p, 576p, 720p, 1080p, and 2K
NOTE     Interlaced sources are not supported.
Quantity/type	1 HDMI (HDCP compliant) 1 XTP®
Connectors	1 female HDMI type A 1 female RJ-45 (shared with Ethernet interface)
Horizontal frequency	18.75 kHz to 75 kHz
Vertical frequency	24 Hz to 75 Hz
Standards	DVI 1.0, HDMI 1.4, HDCP 1.4
Audio sampling rate	48 kHz
Video processing
HDMI pixel data bit depth	8, 10, or 12 bits per channel; 165 MHz pixel clock
Colors	1 billion (10 bit processing)
Ethernet
Connectors	1 female RJ-45 connector (shared with XTP video input)
Data rate	10/100Base-T, half/full duplex with autodetect
Protocols	DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, SFTP, SSH, TCP/IP, UDP/IP
Default settings	Link speed and duplex level: autodetected IP address = 192.168.254.251 Subnet mask = 255.255.255.0 Default gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1
Software
Configuration software	Global Configurator Plus and Professional, GUI Designer
Programming software	ControlScript Programming
Control apps	Extron Control
Resource management software	GlobalViewer Enterprise
Utilities	Toolbelt, Embedded Web page
Sensors
Motion sensor	On/off
Light sensor	Auto/manual
USB
Quantity/type	2 high-speed USB 2.0
Connectors	2 USB type A receptacles
USB standards	USB 2.0, USB 1.1, USB 1.0 compatible
USB data rates	Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)
Audio output – Speaker
Speaker output	2 Stereo, 90 dB Max. SPL @ 0.1m
Frequency response	400 Hz to 20 kHz, ±5 dB
Playback format(s)
Container format	WAV (Microsoft RIFF)
Encoding	LPCM (uncompressed)
Bit depth	Unsigned 8-bit, Signed 16-bit, Signed 24-bit, Signed 32-bit
Sampling rate	Up to 192 kHz
Audio channels	Mono or stereo
Audio output – Line level
Quantity/type	1 stereo, unbalanced
Connectors	1 female 3.5 mm stereo mini jack; tip (L), ring (R), sleeve (GND)
Impedance	50 ohms unbalanced
Gain error	±0.1 dB channel to channel
Nominal level	-10 dBV (316 mVrms)
Maximum level (Hi-Z)	>+8.2 dBV unbalanced at 1% THD+N
Maximum level (600 ohm)	>7.1 dBm unbalanced at 1% THD+N
General
Power supply	Not included
Power input requirements	12 VDC or Power over Ethernet (802.3at, class 4)
Power consumption — Power injector (PI 140) with XTP
Device	22.5 watts
Device and power injector	26.4 watts
Power consumption — Power supply (PS 1230)
Device	20.3 watts
Device and power supply	23.8 watts
Auxiliary power output
USB	5 VDC, up to 275 mA on a single port: up to 275 mA total on both USB ports
Ambient temperature/humidity	Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing
Cooling	Convection, vents on rear top and sides
Thermal dissipation — Power injector (PI 140) with XTP
Device	72.1 BTU/hr
Device and power injector	85.3 BTU/hr
Thermal dissipation — Power supply (PS 1230)
Device	64.5 BTU/hr
Device and power supply	76.5 BTU/hr
Mounting
Furniture or wall mount	Set on tabletop or mount to optional VESA D 100 mm panel mount kit
Adjustment ranges	Tilts through a 40° range
Enclosure type	Plastic
Enclosure dimensions	9.8" H* x 12.8" W x 8.4" D (249 mm H* x 324 mm W x 212 mm D) (Maximum height and depth depend on angle of tilt.)
Product weight	10.98 lb (4.98 kg)
Regulatory compliance	BIS, CE, C-Tick, FCC Class B, ICES, VCCI, c-UL, UL, RoHS, and WEEE
Product warranty	3 years parts and labor; touchpanel display and overlay components are covered for 1 year
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6306-D5)
