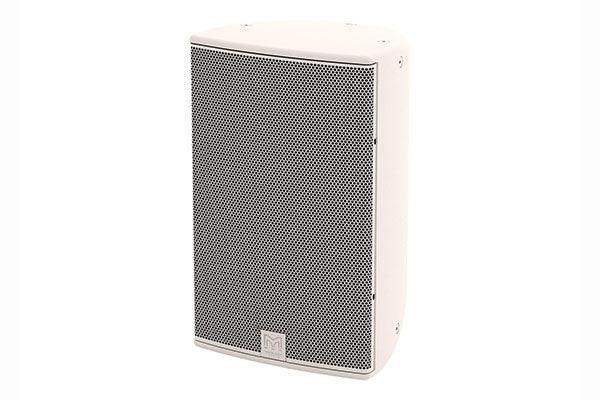

Martin Audio 15" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker (White) - CDD15W-WR
Martin Audio 15" Passive Coaxial Differential Dispersion Outdoor On-wall Loudspeaker (White) - CDD15W-WR is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Martin Audio 15" Passive Coaxial Differential Dispersion Outdo...
The white CDD15W-WR from Martin Audio is a very high-power, weatherised, passive two-way system designed for outdoor installations that demand the ultimate in sonic performance from a single enclosure and suitable for applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements.
Features
- Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- Outdoor operation when sheltered from direct exposure to elements
- Operating temperature -20°C to +70°C
- Environmentally tested to meet IP54
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free water and particle resistant grille
- 8Ω nominal impedance
- Integral inserts for eyebolt suspension
- Black or white standard colour options
Applications
- Outdoor Restaurants
- Bars
- Hotel Areas
- Nearfield Systems in Outdoor Stadia
- Transport Hubs
- Concourses and Theme Parks
Specification
| TYPE | High-output, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 55Hz-18kHz ± 3dB -10dB @ 45Hz |
| DRIVER | LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver |
| RATED POWER (2) | 400W AES, 1600W peak |
| SENSITIVITY (8) | 100dB |
| MAXIMUM SPL (9) | 126dB continuous, 132dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 100˚-60˚ horizontal, 60˚ vertical (user-rotatable) |
| CROSSOVER | 1.6kHz passive |
| ENCLOSURE | 68 litre, composite material |
| FINISH | Black or white as standard |
| PROTECTIVE GRILLE | Zinc plated mild steel with powder coated finish and weatherised backing |
| ENVIRONMENTAL | Rated at IP54 |
| CONNECTORS | Low profile 20A push-lock, weatherproof input panel cover with cable gland |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link+ |
| FITTINGS | 10 x M8 fly points |
| DIMENSIONS | (W) 429mm x (H) 691mm x (D) 413mm (W) 16.9ins x (H) 27.2ins x (D) 16.3ins |
| WEIGHT | 28.3kg (62.4lbs) |
