JBL VRX932LAP 12" Powered 2-Way Line Array Loudspeaker System (Black)
JBL VRX932LAP 12" Powered 2-Way Line Array Loudspeaker System (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
JBL VRX932LAP 12" Powered 2-Way Line Array Loudspeaker System ...

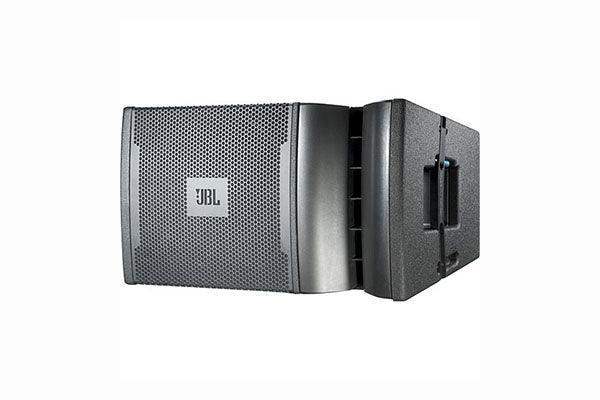

The black JBL VRX932LAP 12" Powered 2-Way Line Array Loudspeaker System is designed for playback and sound reinforcement in small to mid-sized venues.
The built-in JBL DrivePack DPC-2 amplifier module by Crown provides a whopping 1750W of peak power while the DSP-based resident input module provides system optimization and EQ. The Differential Drive woofer gives you high power while still maintaining a lightweight profile. Three 2408J annular ring diaphragm HF drivers incorporate the latest in JBL Professional compression driver design.
Features
- Built-in JBL Drivepack DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
- JBL's exclusive neodymium magned Differential Drive woofer for high-power capacity and light-weight.
- VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
- Array Configuration Selector permits "array shading".
Specs
| Configuration | Active 2-Way |
| Total Power Capacity | 1750 W Peak 875 W RMS |
| Amplifier Power Rating | LF: 1 x 750 W RMS HF: 1 x 125 W RMS |
| Amplifier Class | Class-D |
| HF Driver | 3 x 1.5" / 38.1 mm Horn-Loaded Compression Driver |
| LF Driver | 1 x 12" / 304.8 mm Woofer |
| LF Voice Coil | Dual |
| Magnet | HF: Neodymium LF: Neodymium |
| Frequency Range | 57 Hz to 20 kHz -10 dB |
| Frequency Response | 75 Hz to 20 kHz ±3 dB |
| Maximum SPL | 136 dB |
| Coverage Angle | 100° H x 15° V |
| Audio I/O | 1 x XLR 3-Pin Female Balanced Line Input 1 x XLR 3-Pin Male Balanced Line Thru |
| AC Input Power | User Selectable: 120 to 240 VAC, 50 / 60 Hz |

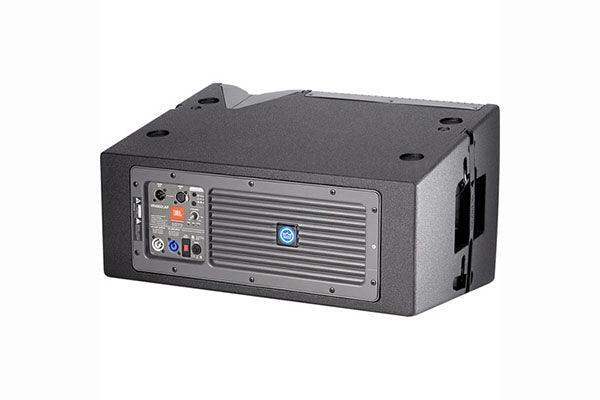

| AC Power I/O | 1 x powerCON Input (Locking) 1 x powerCON Output (Locking) |
| Current Consumption | 120 VAC: 6 A (Max) 240 VAC: 3 A (Max) |
| Mounting |
1 x 1.42" / 36 mm Pole Socket (Dual Angle, Bottom) 2 x Fly Point |
| Cooling | Heatsink |
| Construction Material | Plywood |
| Dimensions | 13.8 x 23.5 x 17.5" / 34.9 x 59.7 x 44.4 cm |
| Weight | 52 lb / 24 kg |
