JBL Control HST 100W 2-Way 5.25" Passive Wide-Coverage Speaker...

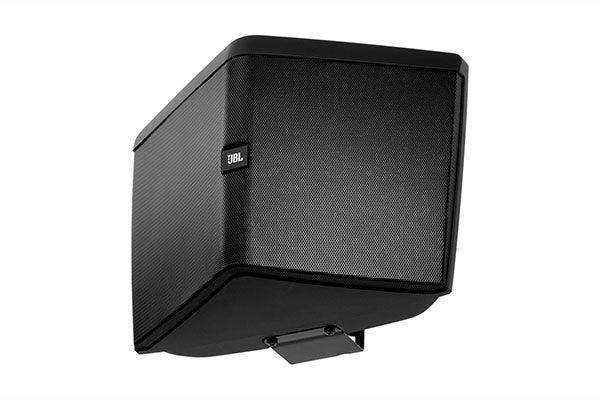

The black JBL Control HST is a single two-way 100W passive wallmount speaker offering extremely wide coverage and a broad frequency response for music reproduction and paging applications in a variety of indoor and outdoor environments such as stores, restaurants, educational facilities, hotels, and lobbies.
An integrated 60W multi-tap transformer allows the Control HST to be used in 70/100V, or 8-ohm system configurations at selectable wattage settings. Boasting IP54 and Mil-Std-810 ratings for resistance to water, humidity, and more, the Control HST is a capable speaker for a range of locations. It includes a color-matched U-bracket for simplified wallmount installation.
Note:
Features
- Dual horizontally splayed 0.75" fluid-cooled tweeters for high output, low distortion, and humidity resistance
- Wall-facing 5.25" woofer with a CMMD ceramic metal matrix diaphragm
- HST Hemispherical Soundfield Technology provides extremely wide horizontal coverage that approaches 180 degrees (covering a greater area with fewer speakers) and reduces the primary wall reflection to yield a flat frequency response and consistent sound character at all listening positions
- 100W (400W peak) power handling for two hours
- 50 Hz to 20 kHz frequency range (-10 dB)
- Integrated 60W multi-tap transformer allows 70/100V, or 8-ohm operation
- Built-in passive high-slope crossover network
- Removable locking Euroblock connector with screw-down input and loop-thru terminals
- Sealed cabinet features fiberglass-reinforced construction with an aluminum grille
- IP54 and Mil-Std-810 rated for resistance to humidity, salt spray, temperature, and UV damage
- Includes a heavy-duty, weather-capable U-bracket for easy mounting (wall mounting required)
Specification
| Active or Passive | Passive |
| Number of Included Speakers | 1 |
| Speaker Configuration | 2-Way |
| Power Handling | For 2 Hours: 100 W Program 400 W Peak For 100 Hours: 75 W Program 300 W Peak |
| Constant Voltage / Transformer Taps | 70 V: 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass 100 V: 60 / 30 / 15 W or 8 Ohms Bypass |
| Impedance | 8 Ohms (Nominal) |
| Transformer Wattage | 60 W |
| Enclosure Type | Sealed |
| Shielded | No |
| HF Driver | 2 x 0.75" / 1.91 cm Aluminum Tweeter |
| LF Driver | 1 x 5.25" / 13.34 cm Woofer |
| LF Voice Coil | 1" / 2.54 cm |
| Magnet | HF: Neodymium |
| Frequency Range | 50 Hz to 20 kHz -10 dB |
| Frequency Response | 68 Hz to 18 kHz ±3 dB |
| Maximum SPL |
108 dB (Continuous) 114 dB (Peak) |
| Sensitivity | 88 dB (Average) |
| Coverage Angle | 160° H x 150° V |
| Directivity | 5.4 (Directivity/Q Factor) 7.2 dB (Directivity Index) |
| Crossover | High-Pass: 1.6 kHz, 18 dB/Octave (Passive) Low-Pass: 1.6 kHz, 12 dB/Octave (Passive) |
| I/O | 1 x Block 4-Pin Speaker Input/Thru (Locking, Removable) |
| Maximum Wire Gauge | 12 AWG / 2.5 mm |
| Water / Weather Resistance | Humidity Resistant, Water Resistant |
| IP Rating | IP54 |
| Color | Black |
| Mounting | 4 x M6 Bracket Point (Rear) 1 x M6 Suspension (Rear) |
| Construction Material | ABS, Aluminum Grille, Fiberglass |
| Dimensions | 14.25 x 10.1 x 7.2" / 36.2 x 25.65 x 18.29 cm |
| Weight | 8 lb / 3.6 kg (Each Speaker, without Bracket) 9.5 lb / 4.3 kg (Each Speaker, with Bracket) |
| Package Weight | 12 lb |
| Box Dimensions (LxWxH) | 17 x 13 x 10" |
