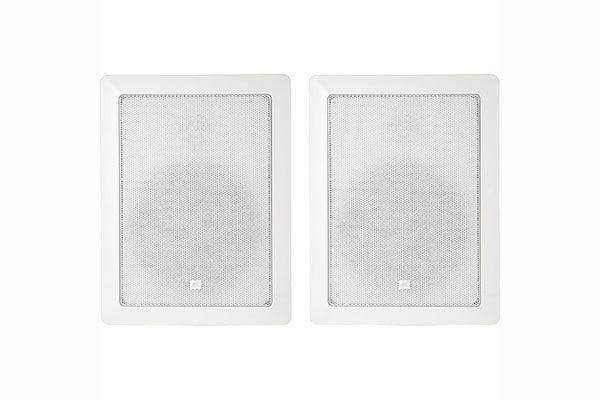

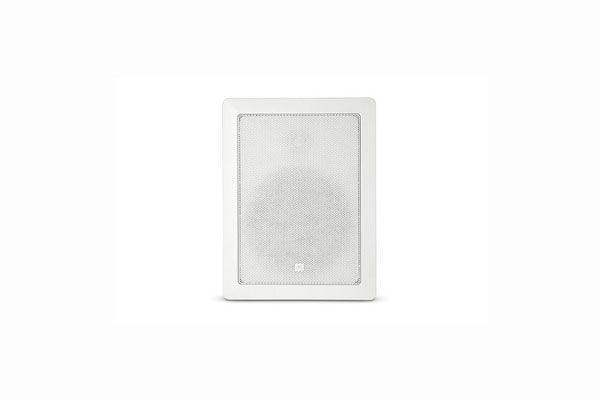

JBL Control 126WT 6.5" 2-Way 100W In-Wall 70V/100V Installation Speakers (Pair, White) is backordered and will ship as soon as it is back in stock.
Free Ground Shipping on Most Orders Over $250.00
JBL Control 126WT 6.5" 2-Way 100W In-Wall 70V/100V Installatio...
The Control 126WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.
| Active or Passive | Passive |
| LF Driver | 6.5" / 16.5 cm Polymer-Coated Aluminum Cone with Pure Butyl Rubber Surround |
| HF Driver | 1" / 2.5 cm Pure Titanium Dome with Cloth Suspension on Low-Diffraction Swivel Mount with -10° Aimability |
| Frequency Range | 38 Hz to 20 kHz (-10 dB) |
| Power Capacity | Peak: 200 W Continuous Program: 100 W Continuous Pink Noise: 50 W |
| Sensitivity | 88 dB SPL (1 W, 1 m) |
| Impedance | Not applicable |
| Transformer Taps | Watts at 70 V: 3.7, 7.5, 15, 30 Watts at 100 V: 7.5, 15, 30 |
| Crossover | Low-Pass Filter to Woofer: 3rd Order (18 dB/Octave) High-Pass Filter to Tweeter: 3rd Order (18 dB/Octave) |
| Input | Screw-Down Euroblock Connector (14 AWG Maximum Wire Size) |
| Shielded | No |
| Air Gap | Optimum Air Cavity Behind Speaker: 0.7 to 1.4 ft³ / 20 to 40 L |
| Cutout Dimensions (H x W) | 9.7 x 7.1" / 24.6 x 18.1 cm |
| Maximum Wall Thickness | 1.3" / 3.2 cm |
| Dimensions | 11.0 x 8.5 x 4.1" / 28.0 x 21.5 x 10.5 cm 3.9" / 9.9 cm Front of Wall to Back of Speaker |
| Weight | 5.9 lb / 2.7 kg |
| Package Weight | 13.6 lb |
| Box Dimensions (LxWxH) | 12.5 x 10.5 x 9.5" |
At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Creation Networks Nationwide Audiovisual Services - Sales, Design, Programming, Installation & Support - A Partner You Can Trust.
Creation Networks offers audiovisual & video conferencing equipment and professional services for projects of all sizes - from a single meeting room to a nationwide AV deployment. You can count on us for your audiovisual technology sales, design, configuration, programming, installation, and support. It is important that you get Top Quality products from the best manufacturers, and then purchase from a trusted partner who tests and installs what they sell, giving you the best value. Our goal at Creation Networks is to only represent the top products, test and install everything before recommending or selling our solutions. Contact us Today! 1.888.230.3661
The Control 126WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.
| Active or Passive | Passive |
| LF Driver | 6.5" / 16.5 cm Polymer-Coated Aluminum Cone with Pure Butyl Rubber Surround |
| HF Driver | 1" / 2.5 cm Pure Titanium Dome with Cloth Suspension on Low-Diffraction Swivel Mount with -10° Aimability |
| Frequency Range | 38 Hz to 20 kHz (-10 dB) |
| Power Capacity | Peak: 200 W Continuous Program: 100 W Continuous Pink Noise: 50 W |
| Sensitivity | 88 dB SPL (1 W, 1 m) |
| Impedance | Not applicable |
| Transformer Taps | Watts at 70 V: 3.7, 7.5, 15, 30 Watts at 100 V: 7.5, 15, 30 |
| Crossover | Low-Pass Filter to Woofer: 3rd Order (18 dB/Octave) High-Pass Filter to Tweeter: 3rd Order (18 dB/Octave) |
| Input | Screw-Down Euroblock Connector (14 AWG Maximum Wire Size) |
| Shielded | No |
| Air Gap | Optimum Air Cavity Behind Speaker: 0.7 to 1.4 ft³ / 20 to 40 L |
| Cutout Dimensions (H x W) | 9.7 x 7.1" / 24.6 x 18.1 cm |
| Maximum Wall Thickness | 1.3" / 3.2 cm |
| Dimensions | 11.0 x 8.5 x 4.1" / 28.0 x 21.5 x 10.5 cm 3.9" / 9.9 cm Front of Wall to Back of Speaker |
| Weight | 5.9 lb / 2.7 kg |
| Package Weight | 13.6 lb |
| Box Dimensions (LxWxH) | 12.5 x 10.5 x 9.5" |
