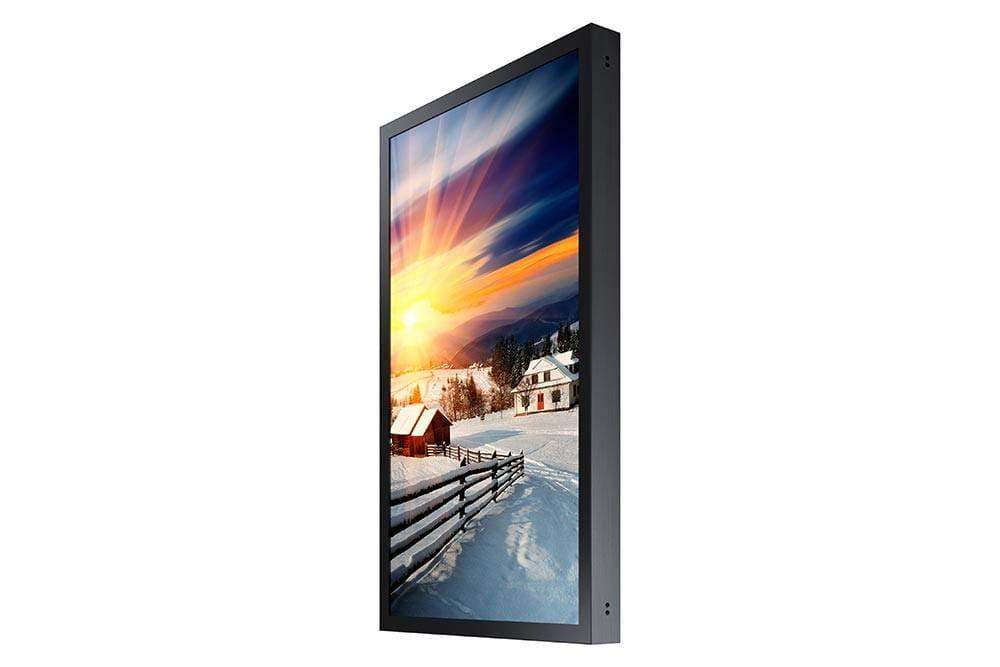

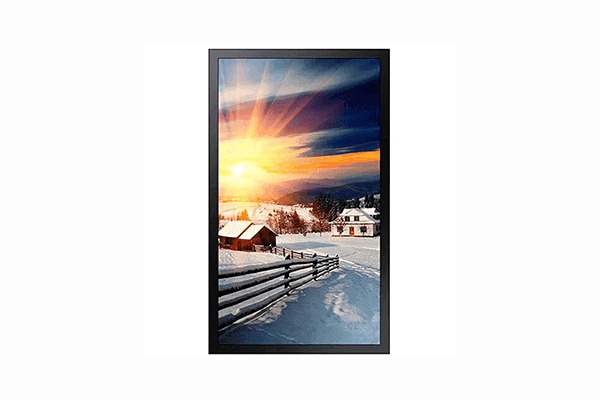

Samsung OH85N-S 85" OHN-S Series Class 4K UHD Single-Sided Outdoor Digital Signage Display
Samsung OH85N-S 85" OHN-S Series Class 4K UHD Single-Sided Outdoor Digital Signage Display is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Samsung OH85N-S 85" OHN-S Series Class 4K UHD Single-Sided Out...
Samsung’s OH85N-S Series outdoor displays are designed to endure harsh outdoor conditions and deliver your message with exceptional clarity around the clock. Perfect for bus stops and roadside billboards with high brightness and a built-in dimming sensor, your content will shine day or night. Plus, you can easily manage your signage remotely thanks to an embedded media player.
- Find convenience in an all-in-one solution with an embedded power box and network hub

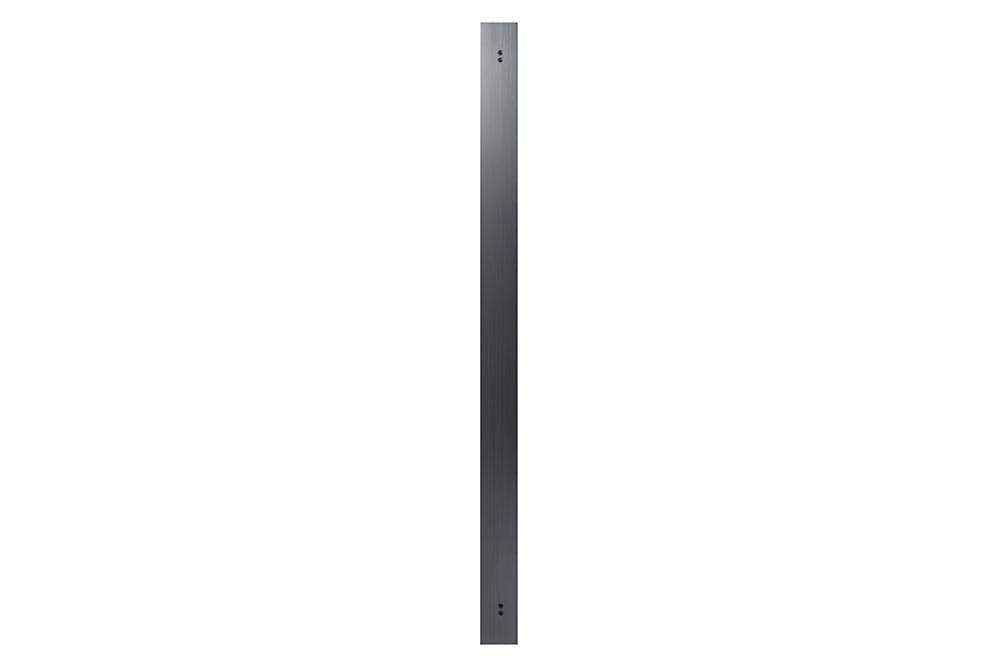

- Clearly showcase featured content through an ultra-slim depth (85 mm.) design
- Validate overall endurance with IK10 certifi cation
- Ensure 24/7, IP56-certifi ed durability in extreme weather environments
- Leverage a fi lter-less self-cooling system for easy maintenance and reduced TCO
- Deliver excellent visibility in direct sunlight through high 2,500nit brightness and anti-refl ection glass
- Achieve convenient content management through an advanced, TIZEN-powered platform
Samsung’s OHN Series SMART Signage delivers an all-inclusive engagement solution that is completely equipped for virtually any outdoor environment. Featuring a slim depth (85 mm.) design, along with the added convenience of an embedded power box, the OHN Series displays ensure durability, fl exibility and 24/7 performance even in extreme temperatures. And with 2,500 nit brightness, a 5,000:1 contrast ratio and anti-refl ection glass, businesses can ensure their messages are showcased almost anytime or anywhere.
Specs
|
OH85N-SK (kit type for harsh conditions) |
OH85N-DK Dual Sided (kit type for harsh conditions) |
||
|---|---|---|---|
|
Display |
Screen Size |
85" |
85" |
|
Panel Technology |
60Hz D-LED Local Dimming BLU |
60Hz D-LED Local Dimming BLU |
|
|
Resolution |
3840 x 2160 (16:9) |
3840 x 2160 (16:9) |
|
|
Brightness |
3,300 nits (w/o glass) |
3,300 nits (w/o glass) |
|
|
Contrast Ratio (Typical) |
3000:1 |
3000:1 |
|
|
Viewing Angle |
178˚ / 178˚ |
178˚ / 178˚ |
|
|
Orientation |
Landscape / Portrait |
Portrait |
|
|
Response Time |
8ms |
8ms |
|
|
Panel Surface Treatment |
Anti-Reflection |
Anti-Reflection |
|
|
Features |
Tuner |
No |
No |
|
Wi-Fi / BT |
No / No |
No / No |
|
|
Built in Speaker |
No |
No |
|
|
Operation Time |
24 / 7 |
24 / 7 |
|
|
Special |
IP56-Rated Simple Enclosure Outdoor (Kit Version Requires Third-Party Glass), Polarized Sun Glasses-Viewable in Any Direction, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor |
IP5-Rated Simple Enclosure Outdoor (Kit Version Requires Third-Party Glass), Polarized Sun Glasses-Viewable in Any Direction, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor |
|
|
Input |
RGB |
DP 1.2 |
DP 1.2 (2) |
|
Video |
HDMI 2.0 (2) |
HDMI 2.0 (4) |
|
|
HDCP |
HDCP 2.2 |
HDCP 2.2 |
|
|
Audio |
N/A |
N/A |
|
|
USB |
USB 2.0 (1) |
USB 2.0 (2) |
|
|
Output |
RGB |
N/A |
N/A |
|
Video |
N/A |
N/A |
|
|
Audio |
Stereo Mini Jack |
Stereo Mini Jack |
|
|
External Control |
External Control |
RS232C (In), RJ45 (In) |
RS232C (In), RJ45 (In) |
|
External Sensor |
N/A |
N/A |
|
|
Power / Operation |
Power Supply |
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
AC 100 - 240 V (+/- 10 %), 50/60 Hz |
|
Power Consumption (Typical / Max) |
1010W / 1800W |
2020 W / 3600W |
|
|
Power Consumption Sleep Mode / Off Mode |
<1W |
<1W |
|
|
Operating Temperature / Operating Humidity |
-30°C - 50°C / 10 - 100% (Non-Condensing) |
-30°C - 50°C / 10 - 100% (Non-Condensing) |
|
|
Internal Media Player |
Processor |
Cortex A72 1.7GHz Quad-Core CPU |
Cortex A72 1.7GHz Quad-Core CPU |
|
On-Chip Cache Memory |
L1 Instruction Cache: 48KB L1 Data Cache: 32KB L2 Cache: 2MB |
L1 Instruction Cache: 48KB L1 Data Cache: 32KB L2 Cache: 2MB |
|
|
Clock Speed |
1.7GHz |
1.7GHz |
|
|
Main Memory Interface |
2.5GB, LPDDR4 1.5GHz 64bit |
2.5GB, LPDDR4 1.5GHz 64bit |
|
|
Graphics |
Graphic resolution: 1920 x 1080 Output resolution: Up to 3840 x 2160 (Scale up from graphic processing result) - Supports OpenGL ES |
Graphic resolution: 1920 x 1080 Output resolution: Up to 3840 x 2160 (Scale up from graphic processing result) - Supports OpenGL ES |
|
|
Storage (FDM) |
8 GB (3.88 GB Occupied by O/S, 4.12GB Available) |
8 GB (3.88 GB Occupied by O/S, 4.12GB Available) |
|
|
Multimedia |
Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder - AC3 (DD), MPEG |
Video Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder - AC3 (DD), MPEG |
|
|
IO Ports |
USB 2.0 |
USB 2.0 |
|
|
Operating System |
Tizen 4.0 (VDLinux) |
Tizen 4.0 (VDLinux) |
|
|
Dimensions / Weight |
VESA Standard Wall Mount Interface |
1000 x 1118.4 (M8 x 4 Hole), 500 x 1118.4 (M8 x 4 Hole) |
N/A |
|
Product Dimension (without Stand) / Packing Dimensions |
78.9" x 46.7" x 4.7" / 85.6" x 54.4" x 19.5" (without pallet) |
79.2" x 47" x 9" / 89.9" x 59.4" x 22.7" (without pallet) |
|
|
Bezel Width |
N/A |
N/A |
|
|
Product Weight / Shipping Weight |
302 lbs. / 407 lbs. |
562 lbs. / 684.8 lbs. |
|
|
Service |
Standard Warranty |
3 Years Parts Labor |
3 Years Parts Labor |
