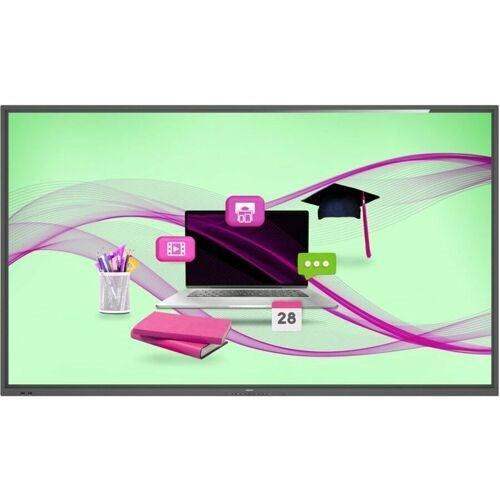

Philips 86BDL4052E/02 86" E-Line, UHD, Android 11, HEIR 20 points, USB-C
Philips 86BDL4052E/02 86" E-Line, UHD, Android 11, HEIR 20 points, USB-C is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Interactive education display | Featuring multi-touch technology
- 86"
- Powered by Android
- Multi-touch
Operate, monitor and maintain with CMND & Control
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
Multi-touch technology capable of 20 touchpoints
Create a memorable interactive experience with up to 20 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality, and retail settings. The touch panel is HID compliant, providing true plug-and-play operation.
Whiteboard mode built-in
Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on screen can then be captured for easy printing or file sharing.
Wireless screen sharing & advanced collaboration
Display four feeds on the one screen. Wireless screen sharing allows you to connect multiple devices at the same time for quick content switching when you need it. Use your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI interact dongles to cast directly to the screen without needing to connect to your secured/protected network.
Android: Run your own app or choose your favorite app to run
WIth Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto orientation feature, showing content in portrait or landscape is as simple as turning the display.
Features
- Bezel Width (Top): 0.70"
- Bezel Width (Bottom): 1.25"
- Bezel Width (Left): 0.70"
- Bezel Width (Right): 0.70"
- Panel Technology: Vertical Alignment (VA)
- Operation Hours: 18 Hours/7 Days
- Number of Screens: 1
- Screen Size: 85.6"
- Display Screen Type: LCD
- Multi-touch Screen: Yes
- Response Time: 8 ms
- Touchscreen: Yes
- Display Resolution: 3840 x 2160
- Orientation: Landscape
- Graphics Modes: 4K UHD
- Aspect Ratio: 16:9
- Scan Format: 2160p
- Native Contrast Ratio: 4,000:1
- Dynamic Contrast Ratio: 500,000:1
Specs
General Information | |
Manufacturer | Philips Electronics |
Manufacturer Part Number | 86BDL4052E02 |
Manufacturer Website Address | http://www.usa.philips.com |
Brand Name | Philips |
Product Line | E-Line |
Product Model | 86BDL4052E |
Product Name | Signage Solutions E-Line Display |
Product Type | Digital Signage Display |
Technical Information | |
Bezel Width (Bottom) | 1.25" |
Bezel Width (Top) | 0.70" |
Bezel Width (Left) | 0.70" |
Bezel Width (Right) | 0.70" |
Panel Technology | Vertical Alignment (VA) |
Operation Hours | 18 Hours/7 Days |
Display & Graphics | |
Number of Screens | 1 |
Screen Size | 85.6" |
Display Screen Type | LCD |
Touchscreen | Yes |
Multi-touch Screen | Yes |
Number of Simultaneous Touchpoints | 20 |
Display Resolution | 3840 x 2160 |
Graphics Modes | 4K UHD |
Response Time | 8 ms |
Pixel Pitch | 19.4 mil |
Aspect Ratio | 16:9 |
Orientation | Landscape |
Video | |
Scan Format | 2160p |
Dynamic Contrast Ratio | 500,000:1 |
Native Contrast Ratio | 4,000:1 |
Brightness | 400 Nit |
Network & Communication | |
Ethernet | Yes |
Wireless LAN | Yes |
Interfaces/Ports | |
USB | Yes |
DVI | Yes |
HDMI | Yes |
Serial | Yes |
Number of USB 2.0 Ports | 3 |
Number of USB 3.0 Ports | 3 |
Number of HDMI Inputs | 3 |
Number of HDMI Outputs | 1 |
Number of DVI Ports | 1 |
USB Type-C | Yes |
RS-232C Input | Yes |
RS-232C Output | Yes |
Number of HDMI 2.0 Ports | 4 |
Number of DVI-D Ports | 1 |
Software | |
Operating System | Android 11 |
Power Description | |
Input Voltage | 120 V AC |
230 V AC | |
Environmental Conditions | |
Minimum Operating Temperature | 32°F (0°C) |
Maximum Operating Temperature | 104°F (40°C) |
Minimum Storage Temperature | -4°F (-20°C) |
Maximum Storage Temperature | 140°F (60°C) |
Minimum Operating Humidity | 20% |
Maximum Operating Humidity | 80% |
Minimum Storage Humidity | 5% |
Maximum Storage Humidity | 95% |
Physical Characteristics | |
VESA Mount Standard | 600 x 400 |
Mount Type | Wall Mountable |
Miscellaneous | |
Package Contents | Signage Solutions E-Line Display 1 x Cleaning cloth 1 x HDMI Cable (3m) Remote Control AAA Batteries 1 x USB A to B Cable (3m) AC Power Cord AC Switch Cover 3 x Cable Clip 1 x DVI - I Cable (1.8m) 1 x IR Sensor Cable (1.8 m) 1 x Philips Logo 1 x Quick Start Guide RS232 Cable 1 x RS232 Daisy Chain cable 2 x Touch Pen USB Cover and Screws |
Application/Usage | Education |
Corporate | |
Hospitality | |
Retail | |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Warranty | |
Limited Warranty | 5 Year |
