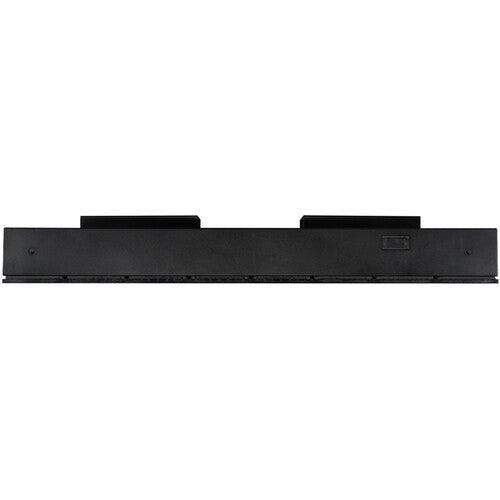

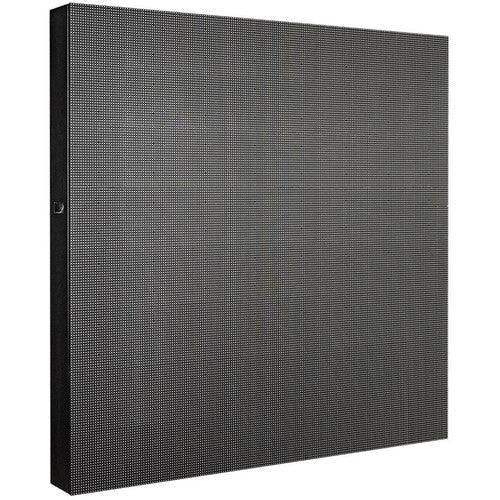

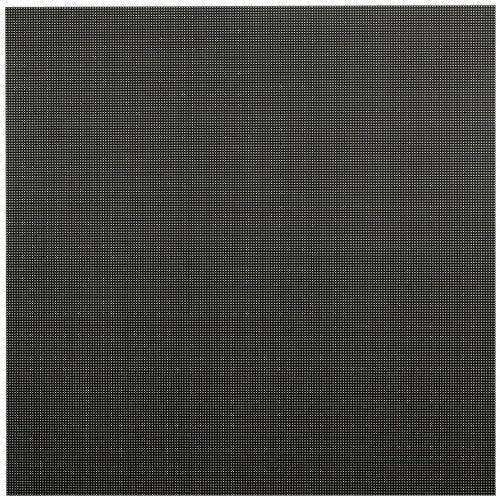

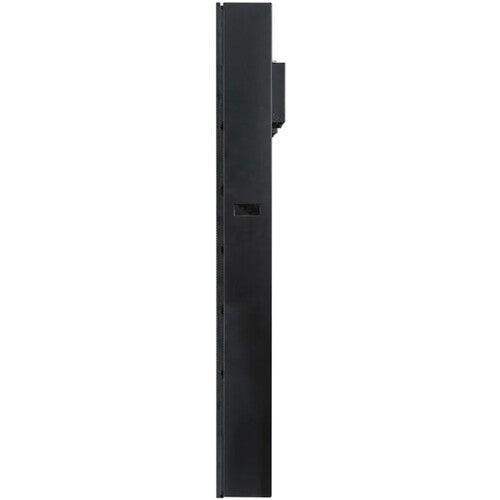

LG GSEH100-GRR 10.67mm Pixel Pitch LED Signage Display Cabinet Right Cut
LG GSEH100-GRR 10.67mm Pixel Pitch LED Signage Display Cabinet Right Cut is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
LG GSEH100-GRR 10.67mm Pixel Pitch LED Signage Display Cabinet Righ...
LG GSEH100-GRR Digital Signage Display - LCD - 8500 Nit
Ultra High Brightness
With a great brightness of 8,500 nits, it clearly delivers content and attracts public attention, which is the suitable display for outdoor visibility.
Quick Installation
The GSEH series is 1.5 times larger than a conventional LED cabinet, making it much easier to fit a screen of the same size.
* Normal size is 1.536 × 1.536 m except GSEH060 (1,152 × 768 mm)
* Conventional LED (e.g. GSED series) cabinet size is 1.0 × 1.0 m
Easy Maintenance
Both front and rear are supported. When rear service is required, the door itself can be removed as it is with an L-shaped hinge, which allows maintenance to be performed in a narrower space.
Compatibility with LG Software Solutions
When connected with LG's CVEA system controller, the GSEH series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* SuperSign CMS service needs to be purchased separately.
Features
- Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
- Experience luminescent visual images with LCD display
Specs
Physical Parameter
| Pixel Configuration | Single SMD |
|---|---|
| Pixel Pitch (mm) | 10.67 |
| Module Resolution (W x H) | 18 × 18 |
| Module Dimensions (W x H, mm) | 192 × 192 |
| Weight per Module (kg) | 0.56 |
| No. of Modules per Cabinet (W × H) | 8 × 8 |
| Cabinet Resolution (W × H) | 144 × 144 |
| Cabinet Dimensions (W × H × D, mm) | 1,536 × 1,536 × 222 |
| Cabinet Surface Area (m²) | 2.359 |
| Weight per Cabinet (kg/cabinet) | 104.0 |
| Weight per Square Meter (kg/m²) | 44.1 |
| Physical Pixel Density (pixels/m²) | 8,789 |
| Flatness of Cabinet | ±1.0 mm |
| Cabinet Material | Al |
| Service Access | Front and Rear |
Optical Parameter
| Max. Brightness (After Calibration) | 8,500 nit |
|---|---|
| Color Temperature (K) | 3,500 - 8,500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160 × 140 |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.05 Cx, Cy |
| Contrast Ratio | 8,000 : 1 |
| HDR Compatibility | 16 (HDR10, HDR10 Pro) |
Electrical Parameter
| Power Consumption (W/Cabinet, Max.) | 1,810 |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 724 |
| Power Consumption (W/m², Max.) | 767 |
| Heat Dissipation (BTU/h/Cabinet, Max.) | 6,177 |
| Heat Dissipation (BTU/h/Cabinet, Avg.) | 2,471 |
| Heat Dissipation (BTU/h/㎡, Max.) | 2,618 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 7,680 |
Operation Conditions
| LED Lifetime (Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | -30 to +50 |
| Operating Humidity | 0-90% RH |
| IP rating Front / Rear | IP65 / IP54 |
Certification
| CE / FCC / ETL |
Environment
| RoHS, REACH |
Controller
| CVEA |
90 Degree Corner Cut
| Yes |
