Blackmagic Design BDLKIPHIP/100G DeckLink IP 100G
Blackmagic Design DeckLink IP 100G – BDLKIPHIP/100G
The PerfectCapture and Playback for 2110 IP Broadcast Systems!
DeckLink IP cards are the easiest way to capture and play back video directly into 2110 IP based broadcast systems! They have the same DeckLink features so all your existing software will just work! DeckLink IP cards support multiple video channels plus each channel can capture and play back at the same time. This means you can build racks of servers generating broadcast graphics, virtual sets or GPU based AI image processing, all directly integrated into 2110 IP broadcast infrastructure. You can even use DaVinci Resolve for 2110 IP based broadcast editing workstations! DeckLink IP features a high speed PCIe connection so it works on the latest Mac Pro, Windows and Linux computers.

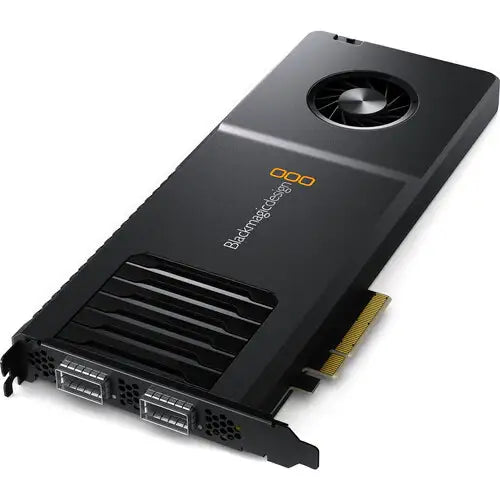

The Blackmagic DeckLink IP 100G is a high-performance capture and playback card designed for uncompressed broadcast-quality video over high-speed IP networks. With support for SMPTE ST 2110 workflows and an advanced 100 Gigabit Ethernet interface, it delivers exceptional performance for live production, broadcast, and post-production environments that demand ultra-low latency and pristine image quality.
Engineered for integration into professional IP-based infrastructures, the DeckLink IP 100G allows direct connection to IP video systems without the need for additional gateways or converters. It supports multiple channels of uncompressed video, along with embedded audio and ancillary data, making it ideal for studios, OB trucks, and enterprise AV applications moving to IP workflows.
Features
-
SMPTE ST 2110 Support – Seamless integration into modern IP broadcast systems
-
100 Gigabit Ethernet Interface – High-bandwidth connection for multiple uncompressed video streams
-
Capture and Playback – Supports simultaneous ingest and output in uncompressed broadcast formats
-
Multi-Channel Video – Handle multiple 4K video channels or a single 8K channel over IP
-
Embedded Audio & Ancillary Data – Full audio channel and metadata transport support
-
Ultra-Low Latency – Optimized for real-time production environments
-
Professional Reliability – Designed for mission-critical live production workflows
-
Cross-Platform Compatibility – Works with macOS, Windows, and Linux systems
Specifications
| Specification | Detail |
|---|---|
| Model Number | BDLKIPHIP/100G |
| Video Interface | SMPTE ST 2110 over 100GbE |
| Max Resolution | 8K (single channel) / multiple 4K channels |
| Ethernet | 100 Gigabit QSFP28 connector |
| Video Formats | Uncompressed 10-bit and 12-bit 4:2:2 / 4:4:4 |
| Audio Support | Embedded multi-channel audio |
| Ancillary Data | SMPTE-compliant metadata and timecode |
| Latency | Ultra-low, real-time optimized |
| Operating Systems | macOS, Windows, Linux |
| Form Factor | PCIe card |
| Dimensions |
Full-height PCIe board |
Comparison Table
| Feature | DeckLink IP 100G (BDLKIPHIP/100G) | DeckLink IP HD |
|---|---|---|
| Interface | 100GbE QSFP28 | 10GbE SFP+ |
| Max Resolution | 8K / multi-channel 4K | 1080p / 3G-SDI equivalent |
| Video Formats | 10-bit & 12-bit, uncompressed | 10-bit, uncompressed |
| SMPTE ST 2110 Support | Yes | Yes |
| Channel Capacity | Multiple UHD channels | Single or dual HD channels |
| Latency | Ultra-low | Low |
| Ideal Use Case | High-end IP broadcast, multi-cam 4K/8K | Standard HD IP production |
