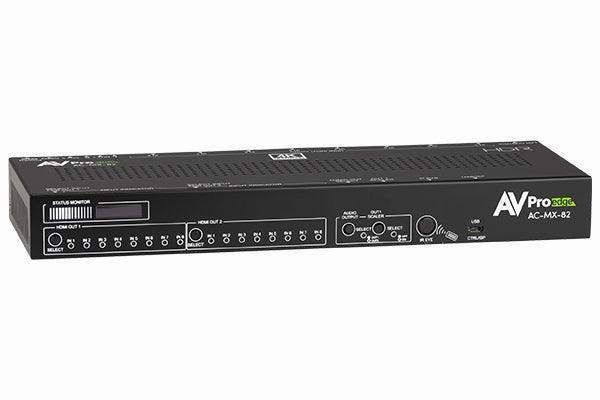

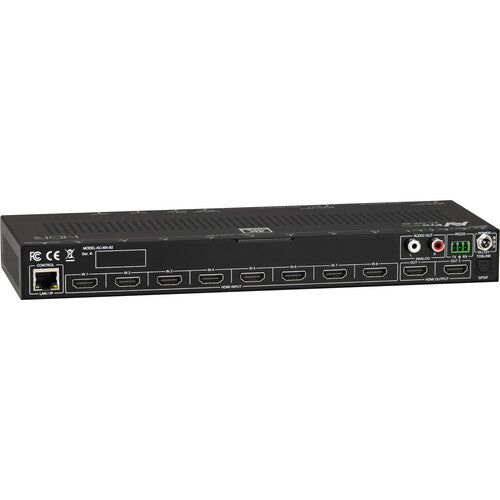

AVPro Edge AC-MX-82RM 18Gbps 4K60 4:4:4, 8x2 Matrix & Auto Switch/AVR Bypass
AVPro Edge AC-MX-82RM 18Gbps 4K60 4:4:4, 8x2 Matrix & Auto Switch/AVR Bypass is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
AVPro Edge AC-MX-82RM 18Gbps 4K60 4:4:4, 8x2 Matrix & Auto Swit...
The AVPro Edge AC-MX-82RM is an 8x2 HDMI matrix switcher built for demanding AV environments that require seamless switching, full 18Gbps bandwidth, and advanced audio/video routing. With support for 4K60 4:4:4, HDR, and HDMI 2.0b, this unit ensures pristine image quality across all connected displays. The AC-MX-82RM also integrates AVR bypass functionality and auto-switching modes, making it a flexible solution for both residential theaters and commercial installations.
Features
-
8 HDMI inputs and 2 HDMI outputs with full matrix switching
-
Supports 18Gbps bandwidth, 4K60 4:4:4, and HDR formats (HDR10, Dolby Vision, HLG)
-
HDMI 2.0b and HDCP 2.2 compliant
-
Auto-switching functionality for hands-free input selection
-
AVR bypass mode for simplified integration with audio systems
-
Full EDID management for compatibility with any display or source
-
Compact 1U rack-mountable design for professional installation
Specifications
| Specification | Detail |
|---|---|
| Model Number | AC-MX-82RM |
| Inputs | 8x HDMI |
| Outputs | 2x HDMI |
| Video Resolution | Up to 4K60 4:4:4 |
| Bandwidth | 18Gbps |
| HDR Support | HDR10, Dolby Vision, HLG |
| Compliance | HDMI 2.0b, HDCP 2.2 |
| Audio Support | AVR bypass mode, audio extraction, and pass-through |
| Control Options | Front panel, IR, RS-232, LAN, and web-based control |
| Rack Mountable | Yes, 1U |
| Applications | Residential theaters, conference rooms, commercial AV environments |
Compare Table
| Feature/Model | AC-MX-82RM | Standard 8x2 HDMI Matrix Switcher |
|---|---|---|
| Bandwidth | 18Gbps (full) | 10.2Gbps (typical) |
| Video Resolution | 4K60 4:4:4 with HDR | 4K30 or limited HDR support |
| HDR Formats Supported | HDR10, Dolby Vision, HLG | HDR10 only (varies by model) |
| Auto-Switching | Yes | Rarely included |
| AVR Bypass | Yes | Not available |
| EDID Management | Full | Limited or basic |
| Target Environment | Professional AV & residential theaters | Consumer/home entertainment |
