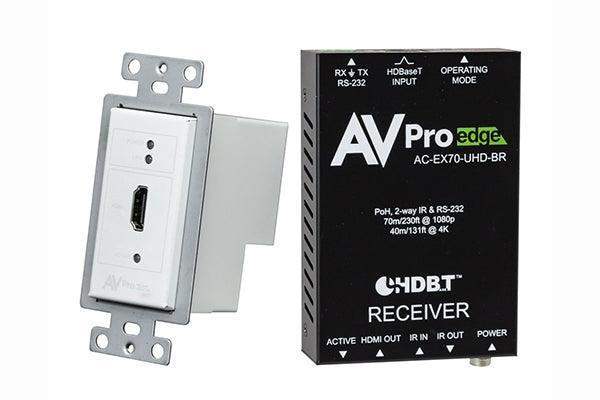

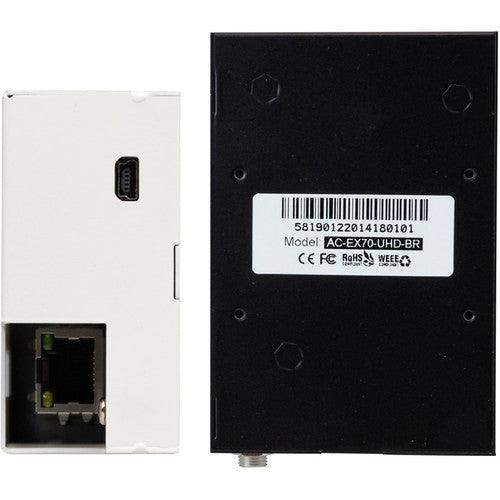

AVPro Edge AC-CXWP-HDMO-BKT ConferX’s HDBaseT Wall Plate Transmitter/Receiver Basic Kit
AVPro Edge AC-CXWP-HDMO-BKT ConferX’s HDBaseT Wall Plate Transmitter/Receiver Basic Kit is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
AVPro Edge AC-CXWP-HDMO-BKT ConferX’s HDBaseT Wall Plate Transmitte...
This is the ideal video extension solution for single office settings, home theaters, conference rooms, huddle spaces and any other place you need to deliver an HDMI signal over a long distance. Perfect for any basic HDMI extension job and able to handle resolutions from PC’s, Apple products, Tablets, Bluray Players or any other HDMI source outputting 4K at 30hz.
**These MUST be used as a kit – not for use as a transmitter or receiver for any matrix switch.**
Key benefits of using AC-CXWP-HDMO-BKT:
1) UHD over Category Cable: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. CAT-6A cables are available widely and can be reworked easily by the installer or end-user.
2) Distance: By using AC-CXWP-HDMO-BKT, the transmission distance for HD 1080P is 70 meters & 4K is up to 40 meters.
3) Single Gang: Save space and make a squeaky clean installation with the single gang configuration. This wall plate fits in more places than ever, it’s perfect for mounting in a wall, on a desk or podium top, or any other place where you need a solid and sleek HDMI connection.
The AC-CXWP-HDMO-BKT from AVPro Edge is designed to give a very affordable option in HDMI extension. This is our most basic HDMI extender, meaning it doesn’t have the features you would find in our other models. Ethernet, ARC, eARC, USB, Audio Extraction, I-Pass IR, and longer distances with 4K. For our full line up of extension products, please click here.
**These MUST be used as a kit – not for use as a transmitter or receiver for any matrix switch.**
- HDMI 2.0 Input
- 4K 30 4:4:4, 4K60 4:2:0 HDMI Support
- DCI 2K, 1080P, 1920x1080x60 VGA Support
- HDCP 2.2 & Earlier Supported
- 70 Meters (230ft) 0n 1080P, Up to 40 Meters (130ft) on 4K (Cat6a)
- No Local Power Necessary at Wall Plate (Powered by AC-EX70-UHD-BR)
- Single Gang, Low heat, Straight in rear RJ45 receptacle design.
- Point to Point HDMI Extension Solution
Specifications
- HDMI 2.0 (a/b)
- 4K 30 4:4:4, 4K60 4:2:0 HDMI Support
- DCI 2K, 1080P, 1920x1080x60 VGA Support
- HDCP 2.2 & Earlier Supported
- 70M (230ft) 0n 1080P, Up to 40m (130ft) on 4K (Cat6a)
- No Local Power Necessary at Wall Plate (Powered by AC-EX70-UHD-BR)
- Single Gang, Low heat, Straight in rear RJ45 receptacle design.
- Rugged, long-life chassis
- Plug & Play auto input sensing
- Designed for the conference/classroom room so your customer can focus on their meetings, not their video system
- Single UTP/STP LAN cable (CAT-6A) for all signals
- Single Gang Construction (Fits Decora Type USA single gang boxes and mud rings)
- Single Gang (Decora), Low heat, rugged, long-life chassis
- Compatible with HDBaseT displays, projectors, AVR's
- Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, Atmos
- AC-CXWP-HDMO-T (Transmitter)
- 1 x decora wall plate cover (white)
- 2 x long electrical outlet screws
- AC-EX70-UHD-BR (Reciever)
- 12V 2A Locking Power Supply
