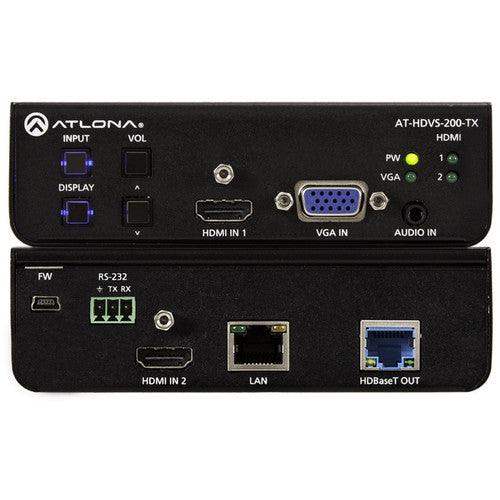

Atlona Three-Input HDMI/VGA to HDBaseT Switcher (PoE) - AT-HDVS-200-TX
Make the Atlona AT-HDVS-200-TX Three-Input HDMI/VGA to HDBaseT Switcher, with PoE, the center of a small automated A/V setup for a compact and versatile solution. Featuring two HDMI inputs and a VGA input with analog audio, the AT-HDVS-200-TX will accept video signals from most media players and computers and send them along an HDBaseT interface. HDBaseT carries video, audio, control, and other important signal types down a single category cable for reliable performance up to 328'. 4K video and surround-sound audio are supported via HDMI inputs. RS-232 and Ethernet ports offer options for advanced software control, in addition to the front panel buttons. No separate power supply is required as this device operates off 48V provided by the HDBaseT connection to the separately available receiver.
Features
- Auto-display control when using TCP/IP, RS-232, or CEC
- Auto-switching with video detection technology activated through RS-232, IP, or webGUI
- Control audio volume for HDBaseT output or display
- Analog audio embedding with standalone audio option
- Supports up to 4K resolutions at 60 Hz in 4:2:0 color space
- Ethernet pass-through for configuration, upgrading, and device management/control
- Supports Dolby TrueHD and DTS-HD Master Audio over HDMI
- HDCP and EDID management
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-HDVS-200-TX |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Model | AT-HDVS-200-TX |
| Product Name | Switcher for HDMI and VGA Inputs with HDBaseT Output |
| Product Type | Audio/Video Switchbox |
| Additional Product Specifications | |
| Full Product Specifications | Click to view |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 3 |
| Device Supported | Speaker |
| Display | |
| Projector | |
| Computer | |
| Number of Displays Supported | 1 |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| VGA In | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 2 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 2 |
| Number of VGA Inputs | 1 |
| Media & Performance | |
| Maximum Operating Distance | 328.08 ft |
| Miscellaneous | |
| Package Contents | Switcher for HDMI and VGA Inputs with HDBaseT Output User Guide Mounting Brackets |
| Warranty | |
| Limited Warranty | 10 Year |
