Atlona Single Gang Dual HDMI Wall Transmitter - AT-HDVS-210H-TX-WP

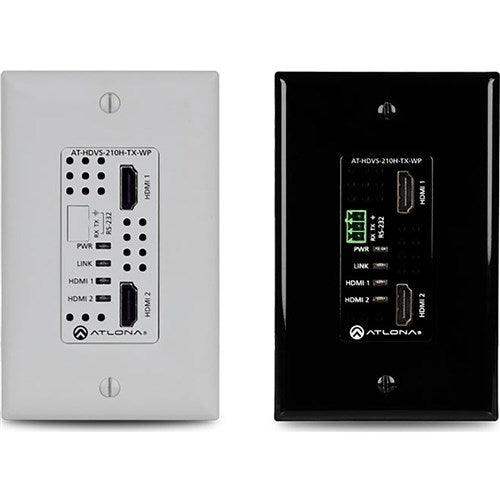

The Atlona AT-HDVS-210H-TX-WP is a 2x1 switcher and HDBaseT transmitter with two HDMI inputs. It features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio and control can be transmitted up to 330 feet (100 meters). The HDVS-210H-TX-WP is HDCP 2.2 compliant. It is designed for use with select HDVS Series receivers and scalers, as well as the AT-UHD-EX-100CE-RX-PSE receiver, and Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the UHD-EX-100CE-RX-PSE or other Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).
Features
- US one-gang enclosure for Decora®-style wallplate openings - interchangeable black or white trim kits
- 2×1 HDBaseTTM switcher with HDMI® inputs
- Ideal for the AT-HDVS-200-RX scaling receiver, AT-UHD-EX-100CE-RX-PSE receiver, and Atlona HDBaseT-equipped switchers
- HDBaseT transmitter for AV, power, and control up to 330 feet (100 meters)
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with the AT-UHD-EX-100CE-RX-PSE)
- Remotely powered via PoE (Power over Ethernet)
- Automatic input selection and automatic display control
- TCP/IP and RS-232 control
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-HDVS-210H-TX-WP |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Series | HDVS-200 |
| Product Model | AT-HDVS-210H-TX-WP |
| Product Name | 4K/UHD Two-Input Wallplate Switcher for HDMI with HDBaseT Output |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 2 |
| Device Supported | Blu-ray Disc Player |
| Computer | |
| Display | |
| Number of Displays Supported | 1 |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Maximum Operating Distance | 328.08 ft |
| Physical Characteristics | |
| Form Factor | Wall Plate |
| Warranty | |
| Limited Warranty | 10 Year |
