Atlona Power Over Ethernet Mid-Span Power Supply - AT-PS-POE

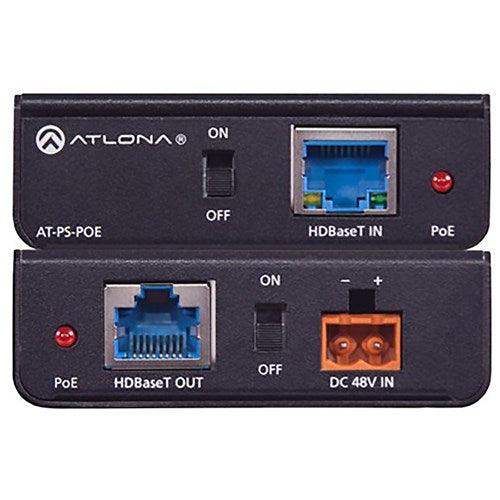

The Atlona AT-PS-POE is a 48 VDC mid-span power injector designed to send remote power to HDBaseT™ products that operate on IEEE 802.03af Power over Ethernet. When placed within an HDBaseT transmission line, it allows two PoE-powered products to work together. The power supply features two power switches to selectively send power up- or down-stream. Both power streams can operate simultaneously. With a bandwidth of 10.2 Gbps, the power supply supports 4K/UHD resolutions, multi-channel audio formats, and offers full 3-D pass-through and passes all HDCP signals. The AT-PS-POE is housed in a compact enclosure and can be conveniently placed anywhere between the transmitter and receiver to provide power for PoE-powered devices.
Features
- Power supply for remote powering for powered devices on HDBaseT transmission lines
- Mid-span power supply
- Power switches for incoming and outgoing line
- Supports 4K/UHD signals
- Upgrade for PoCc systems
- Low-profile, discreet enclosure
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-PS-POE |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Model | AT-PS-POE |
| Product Name | Power Over Ethernet Mid-Span Power Supply |
| Product Type | PoE Injector |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Maximum Output Voltage | 48 V DC |
| Maximum Input Current | 830 mA |
| Minimum Frequency | 50 Hz |
| Maximum Frequency | 60 Hz |
| Interfaces/Ports | |
| Input Ports | 1 Ethernet |
| Output Ports | 1 PoE |
| Miscellaneous | |
| Package Contents | Power Over Ethernet Mid-Span Power Supply User Guide 48 VDC Power Supply Mounting Brackets |
| Compatibility | Atlona Switchers: AT-HDVS-200 Series AT-HDVS-150 Series AT-PRO2HD1616M |
| Certifications & Standards | IEEE 802.03af CE, FCC Level VI cULus RCM CCC HDCP 2.2 CEC |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Warranty | |
| Limited Warranty | 10 Year |
