Atlona Omega Single Gang Wall Plate with USB-C Input and USB Data Support - AT-OME-EX-TX-WPC
Atlona Omega Single Gang Wall Plate with USB-C Input and USB Data Support - AT-OME-EX-TX-WPC is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Atlona Omega Single Gang Wall Plate with USB-C Input and USB Data S...
The Atlona AT-OME-EX-TX-WPC is an HDBaseT transmitter with USB-C input. It sends video up to 4K/30 4:4:4, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). It features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the Omega#8482; Series of integration products for modern AV communications and collaboration, the OME-EX-TX-WPC is HDCP 2.2 compliant and extends RS-232 control signals. The USB-C input is ideal for AV interfacing with newer Mac#174;, Chromebook#8482;, and Windows#174; PCs, as well as smartphones and tablets. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-TX-WPC includes a PC host interface over USB-C, plus a USB 2.0 interface for a peripheral device such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.
Features
- US one-gang enclosure for wallplate openings - interchangeable black or white trim kits
- HDBaseTTM transmitter for USB-C® (AV and host data), power, control, and USB (peripheral)
- USB 2.0 interfacing and extension up to 330 feet (100 meters)
- 4K/UHD capability @ 30 Hz with 4:4:4 chroma subsampling
- HDCP 2.2 compliant
- Remote powering over HDBaseT
- Remote powering over HDBaseT
- Multi-channel audio compliant
- Field-updatable firmware
- Front panel power and signal status LEDs

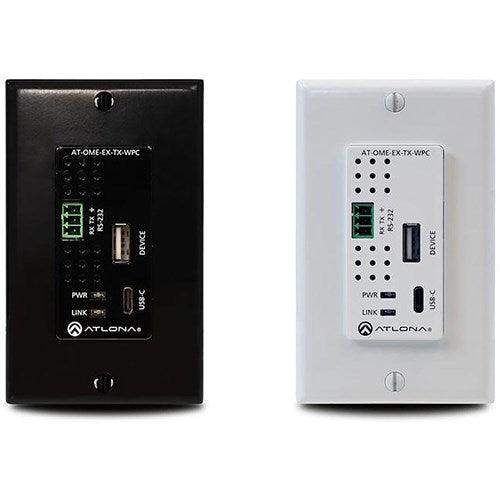

- Included accessories: Installation guide, interchangeable black and white wallplates and faceplates
- Award-winning 10 year limited product warranty
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-OME-EX-TX-WPC |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Model | AT-OME-EX-TX-WPC |
| Product Name | Wallplate Transmitter for USB-C |
| Product Type | Faceplate |
| Technical Information | |
| Number of Gangs | 1 |
| Interfaces/Ports | |
| Number of HDMI Ports | 1 |
| Number of RJ-45 Ports | 1 |
| Physical Characteristics | |
| Product Color | Black |
| White | |
| Miscellaneous | |
| Package Contents | Wallplate Transmitter for USB-C Installation guide Interchangeable black and white wallplates |
| Application/Usage | Audio/Video Device |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Warranty | |
| Limited Warranty | 10 Year |
