Atlona Omega 4K UHD HDMI/USB-over-HDBaseT Receiver (330') - AT-OME-EX-RX
Atlona Omega 4K UHD HDMI/USB-over-HDBaseT Receiver (330') - AT-OME-EX-RX is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Atlona Omega 4K UHD HDMI/USB-over-HDBaseT Receiver (330') - AT-...

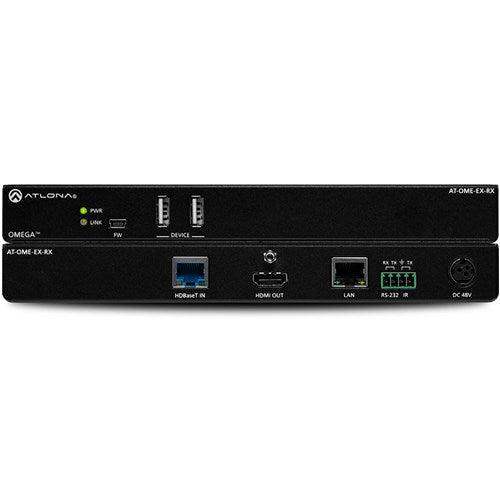

The Atlona AT-OME-EX-RX is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-RX is HDCP 2.2 compliant and receives IR, RS-232, and IP control signals. With a matching HDBaseT transmitter, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-RX includes two USB interfaces for devices such as a camera, soundbar, or display. This receiver is ideal for use with Omega Series transmitters as well as switchers with HDBaseT outputs. Also available is the OME-EX-KIT which includes the OME-EX-TX and OME-EX-RX.
The OME-EX-RX incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-EX-RX can remotely power the OME-EX-TX or other Omega Series transmitter through Power over Ethernet (PoE). It can also be remotely powered by an Omega Series switcher. The Ethernet port on the OME-EX-RX is for IP pass-through with the transmitter.
Features
- Receives 4K HDMI/USB from up to 330'
- Sends Power-over-HDBaseT to Transmitter
- Passes Through IP and RS-232 Signals
- Control Remote Devices with USB KB/Mouse
- HDCP 2.2 Compliant, Embedded Audio
- Works with Omega 4K Transmitters
- Also Works with Omega Matrix Switchers
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-OME-EX-RX |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Line | Omega |
| Product Model | AT-OME-EX-RX |
| Product Name | HDBaseT Receiver for HDMI with USB |
| Product Type | Video Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 3 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Physical Characteristics | |
| Receiver Height | 1.02" |
| Receiver Width | 8.62" |
| Receiver Depth | 5.98" |
| Receiver Weight (Approximate) | 1.92 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
