Atlona 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE (70m) - AT-UHD-EX-70C-RX
Atlona 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE (70m) - AT-UHD-EX-70C-RX is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Atlona 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE (70m)...

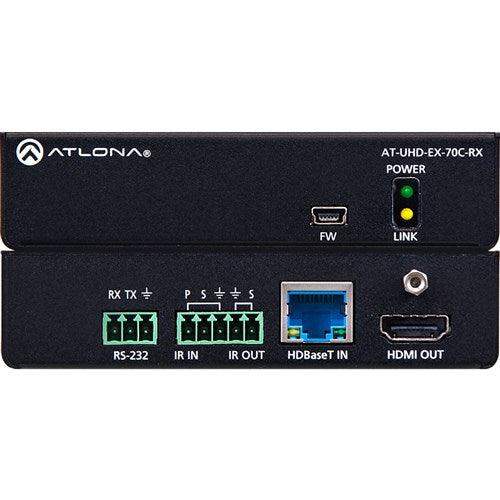

The Atlona AT-UHD-EX-70C-RX is an HDBaseT receiver for AV signals up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over Ethernet capability. It is compatible with video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V Power over Ethernet. The AT-UHD-EX-70C-RX is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter rack width metal enclosure for easy installation with rear panel I/O ports for uncluttered wire management. Use with an optional AT-IR-CS-RX IR receiver cable to capture IR remote commands for AV system control.
This receiver is used in commercial and applications that call for an HDBaseT receiver with a compact form factor that allows for simple mounting behind displays and at projectors. These applications will not require an AC outlet for the receiver, since the receiver is powered by an Atlona switching product. This receiver will also be used to simplify control of the AV system by working with 12 volt-based IR receivers as well as passing through RS-232 commands.
Features
- Receives 4K HDMI up to 230'
- Receives Power over HDBaseT
- Bidirectional IR Control
- Includes IR Emitter
- HDCP 2.2 Compliant
- Supports Multi-Channel Audio
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-UHD-EX-70C-RX |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Model | AT-UHD-EX-70C-RX |
| Product Name | 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE |
| Product Type | Video Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 229.66 ft |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Miscellaneous | |
| Package Contents | 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE User Guide Mounting Brackets IR Emitter |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Warranty | |
| Limited Warranty | 10 Year |
