ASHLY NE4250.70BD Network Amplifier with Dante and OPDAC4 Option Cards
ASHLY NE4250.70BD Network Amplifier with Dante and OPDAC4 Option Cards is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
ASHLY NE4250.70BD Network Amplifier with Dante and OPDAC4 Option Cards
The 4-Channel 1000W Network-Enabled Power Amplifier from Ashly delivers a minimum power of 250W RMS power per channel into 70V loads with all channels operating. The amplifier features OPDAC4 digital to analog converter with selectable high-pass filter and OPDante network audio interface cards; and is designed around an energy efficient Class-D platform with a switching power supply. When switched into bridged-mono mode, channels 1+2 or 3+4 of the amplifier delivers over 500W RMS into a 140V load.

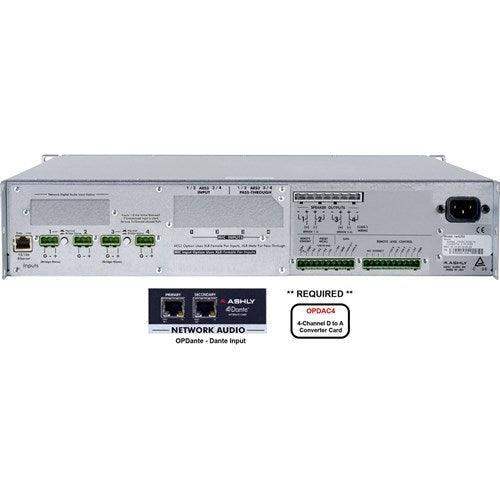

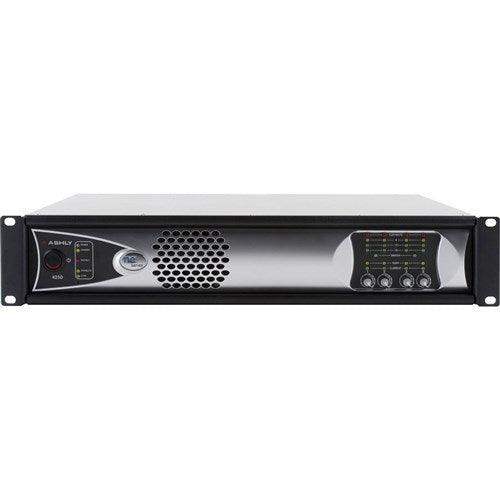

The power amplifier includes Euroblock input connectors, Euroblock output connectors, and balanced analog inputs. Besides remote standby for power up, DC remote level control, and contact closure preset recall, the amplifier also features Ethernet control & monitoring of power functions, level, mute, polarity, temperature, current, and amplifier fault conditions. The front panel indicates power status, standby, protect, power switch On/Off, signal level, bridge, temperature & current levels, and Ethernet communication. The amplifier mounts in a standard 19” rack using two spaces (3.5” high).
Features
- 10/100 Ethernet comes standard for remote control and monitoring
- 70V constant voltage
- OPDAC4 and OPDante input options
- DC voltage remote gain control
- Switched-mode power supply, Class-D output
- Stepped, calibrated input attenuators
- Remote power standby
- Disable all front panel controls via software
- Temperature sensitive variable speed fan with front-to-back airflow
- Selectable high-pass filter frequencies (80 Hz, 400 Hz, off)
- Four stage level meters
- Output current and temp indicators
- Safety/Compliance: cTUVus, CE, FCC, RoHS
Specs
| General Information | |
| Manufacturer | Ashly Audio, Inc |
| Manufacturer Part Number | NE425070BD |
| Manufacturer Website Address | http://www.ashly.com |
| Brand Name | Ashly |
| Product Series | NE |
| Product Model | ne4250 |
| Product Name | ne4250 Signal Amplifier |
| Product Type | Signal Amplifier |
| Technical Information | |
| Minimum Frequency | 20 Hz |
| Maximum Frequency | 20 kHz |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
