- HDMI/HDCP Switching with Simplicity of Analog - End-to-end distribution of HDMI/HDCP without interruption or key constraints using InstaGate Pro Technology
- 4K and Ultra High Definition (UHD) Content Ready – Designed to support future resolutions for years to come
- Industry Leading Data Rate - DXLink is leading the way with an optical transport rate of 10 Gbps
- Fiber Your Way - Designed for use with single strand multimode or single mode fiber with LC connectors providing ease of installation to meet the needs of any installation
- Field Serviceable SFP Fiber Modules - Reduces downtime by allow a single module to be replaced while other inputs and outputs (even those on the same board) continue to operate without interruption
- Analog to Digital Video Conversion with Scaled Outputs - Converts any source signal to digital and uses SmartScale Technology to automatically output video that is perfectly scaled for each connected display
- Secure and Isolated - Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
- HDCP Compliance Over Fiber - Use in conjunction with DXLink Fiber Transmitters and Receivers to send video and audio up to 20 kilometers on single mode fiber and 600 meters on multimode fiber (10 kilometers to the matrix switcher and 10 kilometers after the matrix switcher with single mode fiber, and 300 meters to the matrix switcher and 300 meters after the matrix switcher on multimode fiber)
- Fully Redundant Power Supplies - With independent power paths for maximum reliability
1
of
2
Loading...
Product Questions? Ask Our Experts!
888.230.3661
sales@creationnetworks.net
Contact us today for your best package pricing and product availability.

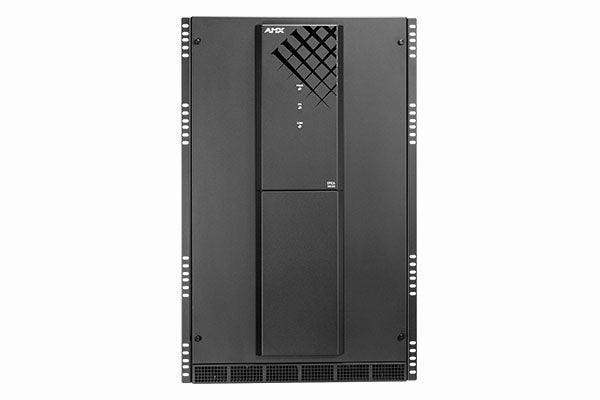

AMX EPICADGX288-ENC Epica DGX 288 Enclosure
Regular price
$210,365.00
Unit price
/
Unavailable
Shipping calculated at checkout.
AMX | SKU:
FG1055-288
AMX EPICADGX288-ENC Epica DGX 288 Enclosure is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
AMX EPICADGX288-ENC Epica DGX 288 Enclosure
Regular price
$210,365.00
Unit price
/
Unavailable
The Epica DGX 288 is a modular matrix switcher designed to transport uncompressed video, including HDMI with HDCP, and embedded audio, over single strand multimode or single mode fiber. With AMX exclusive DGX Technology, the system offers simple signal conversion between analog and digital signal source devices. Supporting 10 Gbps, the DGX and DXLink Fiber transport layer ensures perfect pixel for pixel reproduction of high-resolution content for today and tomorrow. This combined with maximum field serviceability makes the Epica DGX 288 the perfect solution when maximum signal quality, speed and security all need to be met without compromise

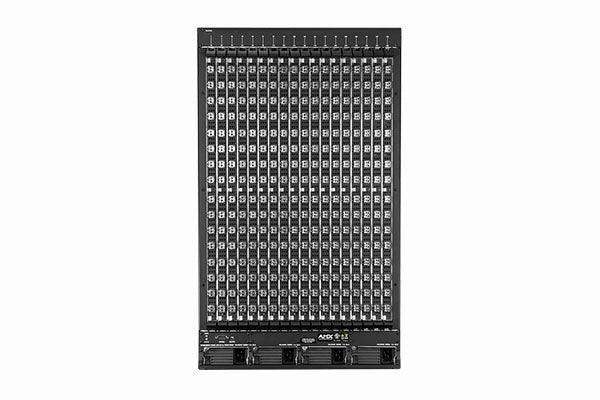

This dense 17 rack unit system utilizes LC fiber module connectors that contain both input and output connections on same connector resulting in a 288x288 matrix switcher that is just 1 rack unit larger than our 144x144. Start with the enclosure and customize the system with single mode or multimode fiber boards that contain 16 connections, for a full 16x16 matrix, on each board, up to 288x288. For flexibility, a combination of multimode and single mode boards can be used in the same enclosure with all inputs routing to any or all outputs.
Common Applications
The Epica DGX 288 routes and transmits pure high resolution analog and digital video up to 300 meters on multimode fiber, or 10 kilometers on single mode fiber making it the perfect solution for government agencies, command-and-control environments, universities, hospitals, casinos, retail environments or any facility that demands the highest quality video be shared between rooms, buildings or across an entire campus or city.
