Blackmagic Design Ultimatte Smart Remote 4 - ULTMSMTREM4
Blackmagic Design Ultimatte Smart Remote 4 - ULTMSMTREM4 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

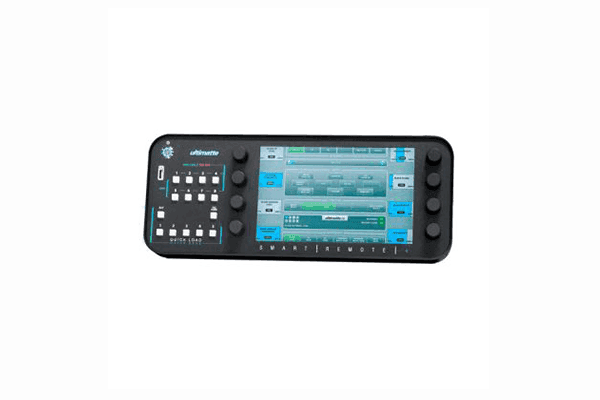

Blackmagic Design Ultimatte Smart Remote 4 - ULTMSMTREM4
- Capacitive touchscreen LCD screen
- Eight optical encoder knobs and unit selection buttons
- On Line and On Air indicators for each unit
- Five quick-save and quick-load buttons
Connections
Software Updates
2 x USB 2.0 and 1 x USB 3.0 for firmware updates.
SVGA Output
SVGA output allows for graphics to be viewed on an external VGA monitor.
Ethernet
2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12.
RS-422
2 x for controlling Ultimatte 11.
Product Specifics
Rotary Knobs
8 x rotary knobs for adjusting parameters.
Unit ID Buttons
8 x buttons. Illuminated blue for active.
Unit ID LED Indicators
Illuminated green for on line and red for on air.
Alt + Quick Load/Save Buttons
Alt button plus 5 buttons for saving files into volatile RAM.
Quick Load/Save Buttons
5 x buttons for loading files stored in volatile RAM.
File Clear Button
1 x button for One Touch Keying.
Alt + File Clear
Alt button plus file clear button for One Touch Keying using some user defined presets.
Customizable Menus
4 x menus for building your own menu with your most used controls.
LED Control
User adjustable brightness control for LEDs.
Fan Speed Control
User adjustable.
What's Included
- Ultimatte Smart Remote 4
- SD card contains software and manual
- Rack mount ears
Features
- Controls up to 8 Ultimatte Units
- Capacitive Touchscreen LCD
- Rotary Encoders
- User-Friendly Interface
- On Line and On Air Indicators per Unit
Specification
| Package Weight | 14 lb |
| Box Dimensions (LxWxH) | 20.3 x 12.4 x 7.8" |
