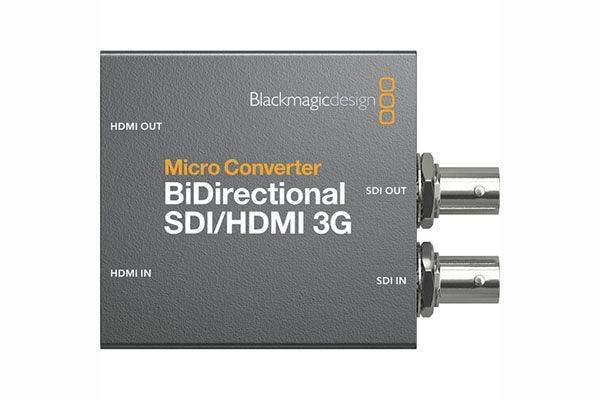

Blackmagic Design Micro Converter - BiDirectional SDI/HDMI 3G - CONVBDC/SDI/HDMI03G

Authorized Dealer

$79.00

Shipping calculated at checkout.

Blackmagic Design | SKU: CONVBDC/SDI/HDMI03G

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Easily combine SDI and HDMI components in your video setup with the Micro Converter BiDirectional SDI/HDMI 3G from Blackmagic Design. This compact bidirectional converter can simultaneously convert SDI to HDMI and vice versa, even when using different standards, and it supports resolutions up to DCI 2K in SDI and 1080p60 in HDMI. It also offers camera control conversion for Blackmagic HDMI cameras like the BMPCC 4K or 6K, enabling you to use them with an SDI-based live switcher. The Micro Converter BiDirectional SDI/HDMI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions including cine-style 48 fps, and both HDMI and SDI embedded audio input and output.

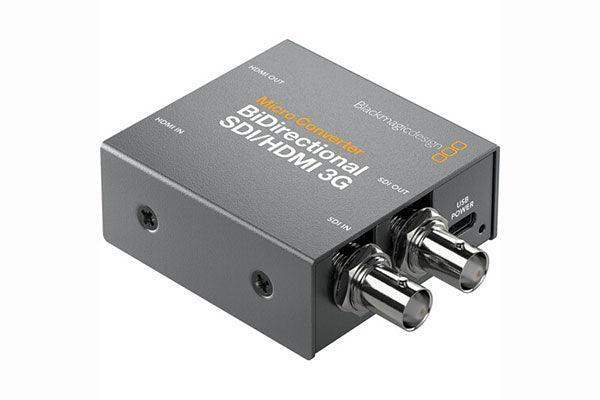

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the BiDirectional SDI/HDMI converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the separately available 100-240 VAC power supply, complete with four international socket adapters.

Compact, Rugged Design

Robust metal housing and rugged connectors
USB Type-C port for powering via a compatible component like a monitor or laptop
Updatable via the USB Type-C port and your Mac or PC

HDMI Camera Control

Camera control conversion for the HDMI-output BMPCC 4K or 6K, enables use with an SDI-based live switcher

SDI & HDMI Timecode

HD and SD timecode support
Converts HDMI timecode to SDI and vice versa

SDI Re-Clocking

Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
Compatible with SMPTE 259M/292M/296M/424M/425M level A and B

Wider Resolution Support

SDI support from NTSC and PAL up to DCI 2Kp60
HDMI support from NTSC and PAL up to 1080p60

Embedded Audio

Supports embedded SDI and HDMI input and output

LED Indicators

LED indicators for video and power signals

Versatile Power Options

Power from a monitor, laptop, or other component using the USB Type-C port

Features

Simultaneous SDI to HDMI & HDMI to SDI
1 x SD/HD/3G-SDI & 1x HDMI Input/Output
Supports up to DCI 2K60 Video
BMPCC Control & Tally via SDI Switcher
USB Power/SDI Re-Clocking/HDMI Timecode
Automatic Input Signal Detection
Embedded HDMI & SDI Input/Output
LED Video &Power Signal Indicators

Specification

Blackmagic Design Micro Converter Specs

Video Inputs	1 x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI (HDMI 2.0)
Audio Inputs	None
Video Outputs	1 x BNC (3G-SDI / HD-SDI / SD-SDI) 1 x HDMI (HDMI 2.0)
Audio Outputs	None
Other I/O	1 x USB-C Input
Expansion Slots	None
Input Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps HDMI (8/10-Bit 4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps
Output Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV) DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 29.97 fps 576i / 625 lines 25 fps
Embedded Audio	HDMI/SDI

Standards

Video Standard Compliance	SMPTE 259M/292M/296M/424M/425M-A/425M-B
HDCP Support	Version 2.2

Hardware

Tally Light	Yes
Wi-Fi	None
OS Compatibility	macOS 10.14.15 or Later Windows 10 *As of November, 2020: Check with manufacturer for the most up-to-date compatibility

Power

Power I/O	1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption	2.5 W

Environmental

Operating Temperature	32 to 72°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%

General

Dimensions	3.18 x 2.32 x 0.98" / 80.77 x 58.93 x 24.89 mm
Weight	6.13 oz / 174 g

Packaging Info

Package Weight	0.415 lb
Box Dimensions (LxWxH)	3.2 x 2.5 x 1.2"
