Blackmagic Design Mini Converter SDI to Analog 4K - CONVMASA4K

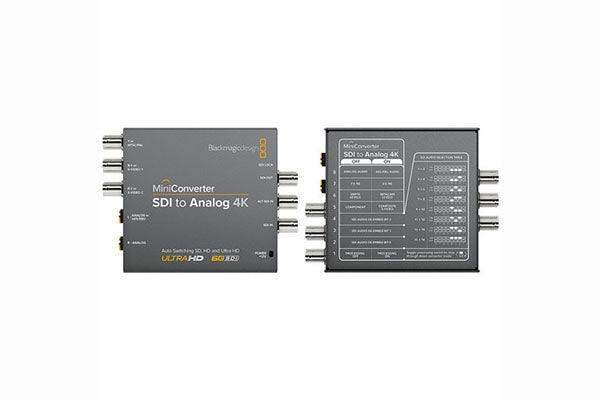

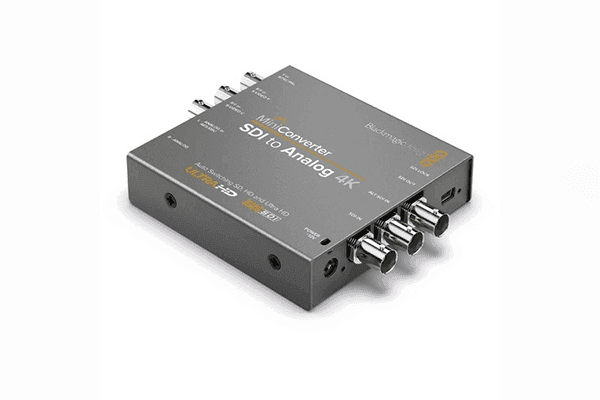

The Mini Converter SDI to Analog 4K from Blackmagic Design allows you to convert Single Link SD/HD/3G/6G-SDI to analog SD/HD component, composite, or S-Video. The down-converter lets you to connect professional SDI equipment which outputs resolutions up to Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) with SD and HD analog video monitors and other equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.
Using 6G-SDI technology, the Mini Converter supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals and automatically detects the input video format and instantly changes. A redundant SDI input is provided as an optional back up, and an SDI loop-through output is available for sending the SDI signal to an additional device. Up to 16 channels of de-embedded SDI input audio can be outputted as AES/EBU digital audio or balanced analog audio output via 1/4" output jacks.
The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.
Features
- Single Link SD/HD/3G/6G-SDI Input
- Component, Composite, & S-Video Output
- SD, HD, UHD 4K & DCI 4K Input Signals
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- Analog & AES-EBU Digital Audio Outputs
- 24-bit, 48 kHz Audio
- Control via DIP Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
- 4:2:2 Sampling and color precision
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, and ITU-R BT.601 standards
Specification
Blackmagic Design CONVMASA Specs
| Video Input | 1 x 6G-SDI 1 x 6G-SDI redundant input |
| Video Output | 3 x BNC connectors Analog SD/HD component, NTSC/PAL composite, and S-Video |
| Multi-Rate Support | Auto detection of SD, HD, or 6G SDI signals |
| Reclocking | Yes |
| Audio Input | Embedded audio from SDI input |
| Audio Output | 2 x 1/4" jack, 2 channels of analog or AES/EBU digital audio |
| Format Support | SD: NTSC 525/29.97 and 525/23.98 PAL 625/25 HD: 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K: 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25 UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 24 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, and ITU-R BT.601 |
| SDI Video Rates | Switchable between SD, HD, 3G, and 6G SDI |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | 24-bit, 48 kHz |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD, 3G, or 6G-SDI |
| Analog Format Support | SD: NTSC 525/23.98 and 525/29.97 PAL 625/25 HD: 720p 50/59.94/60 1080i 50/59.94/60 1080p 23.98/24/25/29.97/30 |
| Analog Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
| Format Conversion | HD down conversion |
| Settings Control | DIP switches or USB software for Mac PS X and Windows |
| Firmware Upgradeable | Via USB 2.0 |
| Power Supply | 12 VDC |
| Power Consumption | 8.04 W |
| Operational Voltage Range | 12 VDC |
| Operating Temperature | 32 to 104° F (0 to 40 ° C) |
| Storage Temperature | -4 to 113° F (-20 to 45 ° C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 4.84 x 3.63 x 0.90" (12.29 x 9.22 x 2.29 cm) |
| Weight | 10.68 oz (302.77 g) |
| Package Weight | 1.3 lb |
| Box Dimensions (LxWxH) | 5.6 x 5.4 x 2.6" |
