Blackmagic Design ATEM Mini Extreme ISO - SWATEMMINICEXTISO
Blackmagic Design ATEM Mini Extreme ISO - SWATEMMINICEXTISO is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Blackmagic Design ATEM Mini Extreme ISO - SWATEMMINICEXTISO
The Blackmagic Design ATEM Mini Extreme ISO is an 8-input live production switcher for live streaming. It features an integrated control panel and has advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. The switcher's ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB Type-C ports. The switcher automatically generates a DaVinci Resolve project file, so you can clean it up and make changes later. This versatile switcher's eight independent HDMI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.
Switch, add effects, color grade, and key in real time using the control surface's buttons, or via the software control panel. CCU functions are available for controlling Blackmagic Studio and URSA Mini/Broadcast/Micro Studio cameras from the switcher. The ATEM Mini Extreme ISO supports up to nine layers, with four upstream and two downstream keyers, up to four chroma keyers, up to four linear keyers, two DVE with borders and drop shadow, five pattern generators, and two color generators. Designed for live streaming or webcam, the Mini Extreme ISO has HDMI outputs to feed monitors and supports up to 16-screen multiview.
Stream Live
Control Interface

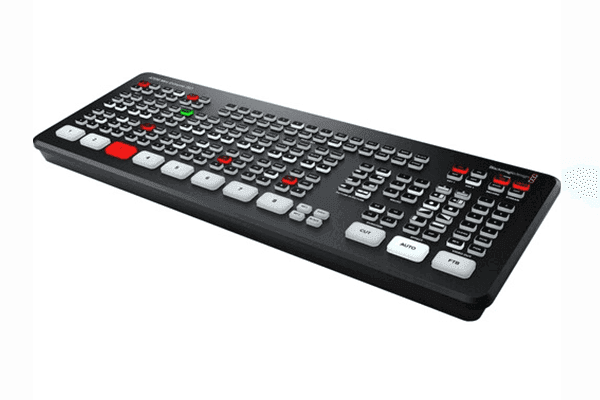

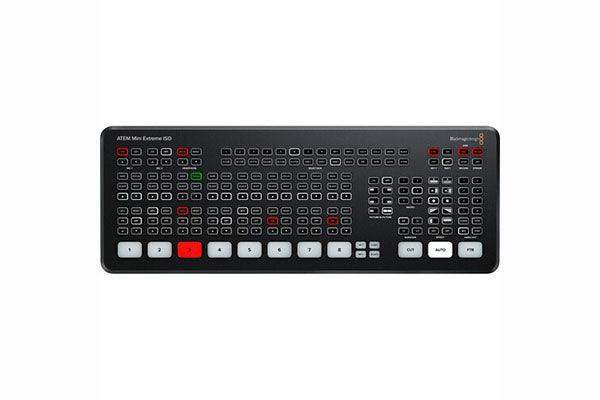

The front panel includes easy-to-use buttons for selecting sources, video effects, and transitions. The source buttons are large, allowing you to operate them by feel. Included on the ATEM Extreme ISO are buttons for audio mixing, recording, and streaming control, as well as output selection buttons that let you change the video output between cameras, program, and multiview. On the rear panel, there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out, plus an HDMI "AUX" output for program video.
Output
4G and 5G Phone Support
Features
- 8-Channel HDMI Live Streaming Switcher
- Supports up to 1080p60
- RTMP Streaming via Ethernet or USB-C
- Record Program Out and Individual Inputs
- 11-Input, 2-Channel Audio Mixer
- Input Frame Rate and Format Converter
- Re-Sync on All HDMI Inputs
- HD Multiview Output with up to 16 Views
- Local and Software Switching
- 4 x Upstream, 2 x Downstream Keyers
Specs
Blackmagic Design ATEM Mini Extreme Specs
| Available M/E Layers | 9 M/E |
| Effect Types | 2 x DVE 4 x Luma Key 4 x Chroma Key |
| Graphics Memory | 20 Images |
| Downstream Keys | 2 x Chroma, Luma, DVE |
| Generators | 5 x Pattern 2 x Color |
| Audio Mixing | 2-Channel Mixing |
| Switching Type | Pushbutton, Software |
| Processing Resolution | 1080p |
| Number of Video Input Sources | 8 |
| Video Inputs | 8 x HDMI |
| Input Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
| Audio Inputs | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Video Output Channels | 2 |
| Video Outputs | 2 x HDMI |
| Output Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
| Audio Outputs | 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female |
| Embedded Audio Output | HDMI: 2-Channel |
| Multiview Output | 16-Way Multiview viaHDMI |
| Other I/O | 1 x RJ45 2 x USB-C |
| HDCP Support | None |
| IP Video | H.264: 1920 x 1080 Encoding |
| Transport Protocols | RTMP |
| Simultaneous Streams | 1 Streams |
| Recording Modes | 1920 x 1080p up to 60 fps (MP4) |
| OS Compatibility | macOS 10.15 macOS 11.1 or Later Windows 10 *As of February, 2021: Check with manufacturer for the most up-to-date compatibility |
| Wi-Fi | None |
| Bluetooth | None |
| Power I/O | 1 x Barrel (12 VDC) Input |
| Power Consumption | Device: 36 W |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 0 to 70% |
| Dimensions | 14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm |
| Weight | 2.72 lb / 1.23 kg |
| Package Weight | 4.375 lb |
| Box Dimensions (LxWxH) | 19.7 x 7.3 x 3" |
