Blackmagic Design ATEM Mini Extreme ISO - SWATEMMINICEXTISO

Availability: Call for Availability
Availability: Direct Ship
Blackmagic Design SKU: SWATEMMINICEXTISO
No reviews
Price:
$1,295.00

Description

Spec Sheet

The Blackmagic Design ATEM Mini Extreme ISO is an 8-input live production switcher for live streaming. It features an integrated control panel and has advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. The switcher's ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB Type-C ports. The switcher automatically generates a DaVinci Resolve project file, so you can clean it up and make changes later. This versatile switcher's eight independent HDMI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.

Switch, add effects, color grade, and key in real time using the control surface's buttons, or via the software control panel. CCU functions are available for controlling Blackmagic Studio and URSA Mini/Broadcast/Micro Studio cameras from the switcher. The ATEM Mini Extreme ISO supports up to nine layers, with four upstream and two downstream keyers, up to four chroma keyers, up to four linear keyers, two DVE with borders and drop shadow, five pattern generators, and two color generators. Designed for live streaming or webcam, the Mini Extreme ISO has HDMI outputs to feed monitors and supports up to 16-screen multiview.

Stream Live

 Live stream to YouTube, Facebook Live, Skype, Twitch, Zoom, Microsoft Teams, and other platforms that support RTMP protocols.



Control Interface

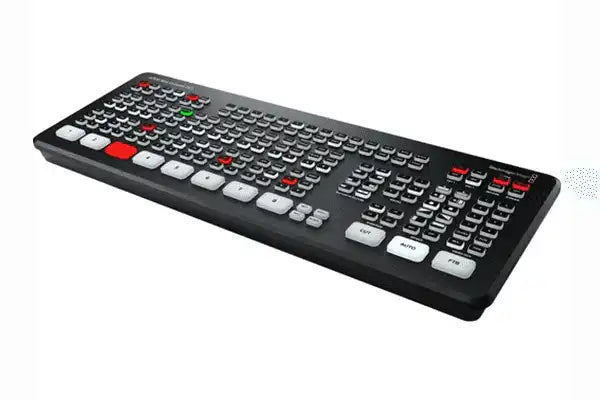

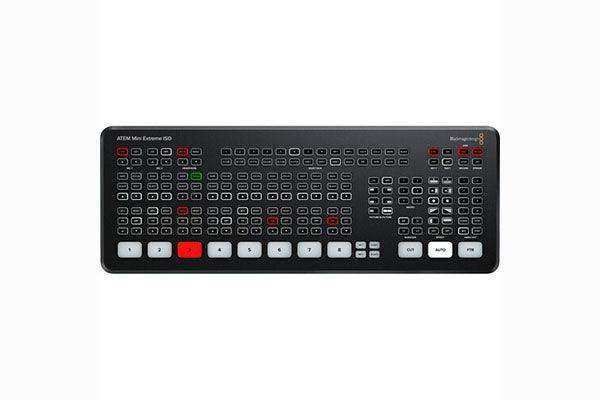

The front panel includes easy-to-use buttons for selecting sources, video effects, and transitions. The source buttons are large, allowing you to operate them by feel. Included on the ATEM Extreme ISO are buttons for audio mixing, recording, and streaming control, as well as output selection buttons that let you change the video output between cameras, program, and multiview. On the rear panel, there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out, plus an HDMI "AUX" output for program video.

Output

 You can output using the Ethernet connection to your network or use the USB Type-C output to have your switched show recognized as a webcam input by virtually any video software such as Zoom, Microsoft Teams, Skype, Open Broadcaster, XSplit Broadcaster, and others.



4G and 5G Phone Support

 If you're doing live production on location, the ATEM Mini Extreme models support connecting an Apple or Android phone to the USB port to use mobile data. It's also a great backup for the main Ethernet connection, so you don't drop your stream if your hardwired connection gets interrupted. The switcher will automatically switch to using the phone as the primary connection, and the USB port will also power your phone, so the battery won't drain.
  • 8-Channel HDMI Live Streaming Switcher
  • Supports up to 1080p60
  • RTMP Streaming via Ethernet or USB-C
  • Record Program Out and Individual Inputs
  • 11-Input, 2-Channel Audio Mixer
  • Input Frame Rate and Format Converter
  • Re-Sync on All HDMI Inputs
  • HD Multiview Output with up to 16 Views
  • Local and Software Switching
  • 4 x Upstream, 2 x Downstream Keyers

Blackmagic Design ATEM Mini Extreme Specs
Available M/E Layers 9 M/E
Effect Types 2 x DVE
4 x Luma Key
4 x Chroma Key
Graphics Memory 20 Images
Downstream Keys 2 x Chroma, Luma, DVE
Generators 5 x Pattern
2 x Color
Audio Mixing 2-Channel Mixing
Processing
Switching Type Pushbutton, Software
Processing Resolution 1080p
Input
Number of Video Input Sources 8
Video Inputs 8 x HDMI
Input Video Format HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Inputs 2 x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format Analog
Embedded Audio Input HDMI: 2-Channel (per Input)
Output
Video Output Channels 2
Video Outputs 2 x HDMI
Output Video Format HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Output HDMI: 2-Channel
Multiview Output 16-Way Multiview viaHDMI
Connectivity
Other I/O 1 x RJ45
2 x USB-C
HDCP Support None
IP Video H.264:
1920 x 1080 Encoding
Transport Protocols RTMP
Simultaneous Streams 1 Streams
Recording Modes 1920 x 1080p up to 60 fps (MP4)
Hardware
OS Compatibility macOS 10.15
macOS 11.1 or Later
Windows 10
*As of February, 2021: Check with manufacturer for the most up-to-date compatibility
Wi-Fi None
Bluetooth None
Power I/O 1 x Barrel (12 VDC) Input
Power Consumption Device: 36 W
Environmental
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 0 to 70%
General
Dimensions 14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm
Weight 2.72 lb / 1.23 kg
Packaging Info
Package Weight 4.375 lb
Box Dimensions (LxWxH) 19.7 x 7.3 x 3"
