Vaddio AV Bridge MatrixMIX Production System - Live Event AV Switcher Bundle

Product Overview

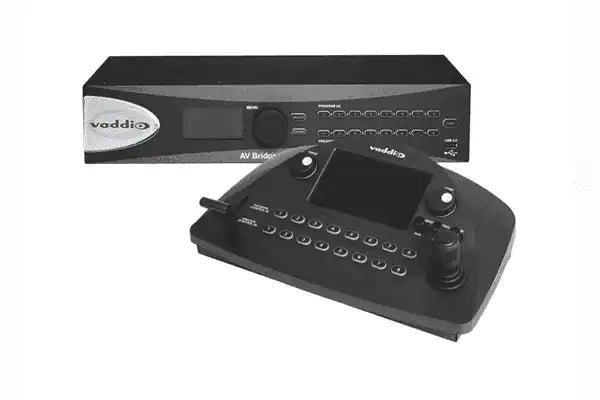

The Vaddio AV Bridge MatrixMIX Production System (SKU: 999-5660-500) is a complete live production AV switcher bundle that combines the AV Bridge MatrixMIX 8x2 video mixer with the PCC MatrixMIX Camera Controller. Designed for conference rooms, lecture halls, houses of worship, and enterprise broadcast environments, this production system handles analog, HDMI, USB, and IP audio channels while delivering simultaneous RTSP IP and USB 3.0 streaming. The system gives integrators a single, coordinated production-ready solution covering switching, camera control, graphics overlay, and USB conferencing from two rack-mount appliances.

Product Description

The AV Bridge MatrixMIX Production System delivers Vaddio's flagship AV production switcher alongside the PCC MatrixMIX controller for hands-on live production control. The 8x2 video mixer provides simultaneous multiviewer output, letting operators monitor all inputs while selecting program and preview signals without interrupting the live feed. Its 11x7 audio mixer handles analog, HDMI, USB, and IP audio channels—covering virtually every signal type found in modern commercial AV installations without requiring external format converters.

Two graphic keying layers per output channel allow logos, lower thirds, or presentation overlays to be added to program output, supporting corporate broadcast and higher education lecture capture workflows where branding and content annotation are required. Simultaneous RTSP IP and USB 3.0 streaming outputs allow the same production to be sent to a UC platform (Zoom, Teams, Webex), an external IP encoder, and a local recorder at the same time—a common requirement in all-hands rooms and hybrid event spaces.

The PCC MatrixMIX Camera Controller provides physical production control for real-time camera switching and scene selection. This is critical in live event and house of worship environments where operators need immediate, reliable control without navigating a software interface during a broadcast. The system also supports full remote management over IP, enabling centralized operation of multi-room deployments from a single control center—a key capability in large enterprise and higher education campus installations.

Key Features

• 8x2 Video Mixer with Multiviewer Output - Simultaneously monitors all inputs while providing independent program and preview outputs, giving operators full situational awareness during live production.
• 11x7 Audio Mixer - Handles analog, HDMI, USB, and IP audio channels in a single unit, eliminating the need for external format converters in most commercial AV deployments.
• Simultaneous RTSP IP and USB 3.0 Streaming - Enables concurrent delivery to conferencing platforms, IP encoders, and local recording devices from a single appliance.
• Two Graphic Keying Layers Per Output - Overlay logos, text, or lower thirds on each output channel for broadcast-quality live production presentations.
• PCC MatrixMIX Camera Controller Included - Physical production controller for real-time camera switching and scene selection without software dependency in live event environments.
• Remote IP Management - Full web-based and Telnet control over IP supports centralized operation of multiple rooms from a single control center.
• Rack-Mount Design - Both units ship with rack ears for clean equipment room integration in commercial AV installations.
• Vaddio Deployment Tool Compatible - Supports mass firmware updates and remote troubleshooting across all Vaddio devices on a network via the Vaddio Deployment Tool.

Typical Applications

• Boardroom / executive conference room
• House of worship live streaming
• All-hands room / corporate town hall
• Lecture hall with lecture capture
• Broadcast studio / corporate broadcast
• Auditorium / multi-purpose event venue
• Higher education media production

Technical Specifications

Frequently Asked Questions

What cameras work with the AV Bridge MatrixMIX Production System?
The system integrates natively with Vaddio PTZ cameras including the RoboSHOT series. Third-party cameras can connect via HDMI or SDI inputs. For full camera control integration, Vaddio PTZ cameras are recommended. See compatible cameras at creationnetworks.net/collections/vaddio.

Is the PCC MatrixMIX controller included?
Yes. The 999-5660-500 bundle includes both the AV Bridge MatrixMIX Switcher and the PCC MatrixMIX Camera Controller. If you only need the switcher without the controller, the 999-5660-000 is available separately at creationnetworks.net.

Can this system stream to Zoom, Microsoft Teams, or Google Meet simultaneously with other outputs?
Yes. The USB 3.0 output presents as a standard USB UVC device, making it compatible with all major UC platforms on Windows and macOS without additional drivers. The RTSP IP output runs concurrently, enabling simultaneous delivery to an encoder or recorder.

Can the system be controlled from a centralized AV operations center?
Yes. Full remote control via web UI and Telnet over IP enables centralized management of multiple rooms from a single control station, making it practical for large enterprise or campus deployments.

Is the system rack-mountable?
Yes. Both the AV Bridge MatrixMIX and PCC MatrixMIX are rack-mountable. Rack ears are included in the 999-5660-500 package.

What is the warranty on Vaddio products?
Vaddio products carry a standard 2-year warranty. Contact Creation Networks for warranty service at creationnetworks.net.

What audio formats does the 11x7 mixer support?
The mixer handles analog line-level, embedded HDMI audio, USB audio, and IP/AoIP audio channels, covering the most common signal types in commercial AV without requiring external format converters.
