TOA Electronics IP Paging Gateway - IP-A1PG

$1,402.00 $1,134.00

Shipping calculated at checkout.

TOA | SKU: IP-A1PG

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Broadcast audio to multiple rooms with the TOA IP-A1PG, a PoE-powered gateway unit that integrates multiple IP Audio devices by converting the SIP voice or ONVIF Backchannel audio into multicast audio streaming. The unit can also transmit a built-in sound source or input audio as multicast audio streaming. Trigger event broadcasting by control input, scheduler or remote API (HTTP) as well as the command set that sends multiple HTTP commands simultaneously are also available.

Features

For Multicast Streaming
Integrates Multiple IP Audio Devices
Broadcast to Multiple Rooms
Power over Ethernet (PoE)

Specs

Connectors	Audio Input: 1 Channel, Electronically Balanced, 10 Kilohms LINE/MIC selectable (Rated Input: LINE: 0 dB, MIC: -60 dB PAD Function (-20 dB, Phantom Power ON/OFF (12 VDC), Volume Adjustable, Removable Terminal Block (6 Pins) Control Input: 4 Channels, No-Voltage Make Contact Inputs, Open Voltage: 5 VDC, Short-Circuit Current: 2 mA or Less, Removable Terminal Block (6 Pins) Monitor Output: 1 Channel, Electronically Balanced, 600 Ohms or Less Rated output: 0 dB (*2), RCA Jack Mute Control In: 1 Channel, 24 VDC Cut Signal, Control Current 5 mA or Less, Removable Terminal Block (2 Pins) Control Output: 1 Channel, Open Collector Output, Withstand Voltage: 30 VDC, Control Current: 10 mA or Less, Removable Terminal Block (6 Pins)
Audio	Audio Transmission Method: Multicast Audio Streaming Audio Codec: PCMU (G.711u), PCMA (G.711a), G.722 Audio Delay Time: Minimum 100 ms
Functions	Functions Broadcasting: Audio Transmission Transmit Internal Messages by Multicast Audio Streaming Transmit Audio from Audio Input Connected Devices by Multicast Audio Streaming Audio Conversion Convert SIP Voice to Multicast Audio Stream and Transmit Convert ONVIF Audio Backchannel Audio to Multicast Audio Stream and Transmit Functions Scheduler: Scheduled Broadcasting and Control by WEB-UI (Max Schedule Settings: 2000) Configurable Actions: Internal Message Broadcast, Audio Input Broadcast, Control Output, Command Set Transmission Functions Event Execute Event Triggered by Control Input Configurable Actions: Internal Message Broadcast, Audio Input Broadcast, Command Set Transmission, Broadcast Disable, System Mute
System Requirements	PC Requirements Display: Recommended Resolution: 1920 x 1080 OS Windows 10 Pro (64-Bit Edition) Windows 10 Home (64-Bit Edition) Windows 11 Pro Windows 11 Home Web Browser: Google Chrome, Microsoft Edge

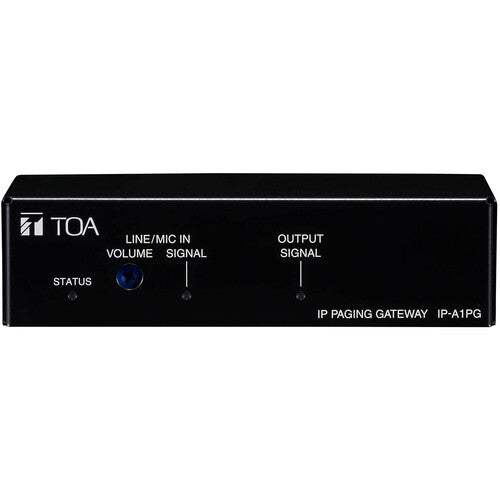

Indicators	Status (Green/Blue/Orange/Red) Line/Mic In (Green/Red) Output (Green), Link/Act (Green)

Inputs/Outputs

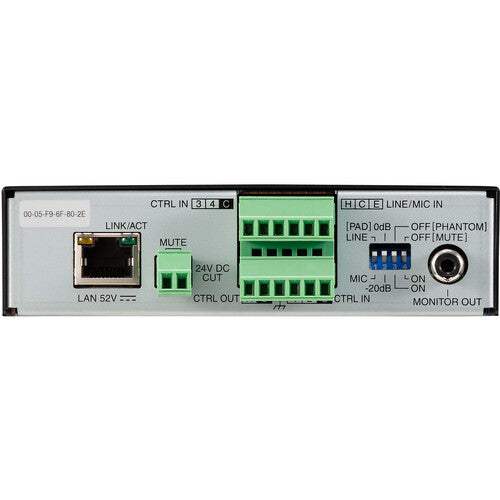

Audio I/O	1x Block 6-Pin Line/Mic Input 1x RJ45 TS Monitor/Speaker Output
Network	1 x RJ-45 Network Port (PoE)
Control Port	1 x 6-Pin Block Connector (Top Row Control Input: 3 Left Pins, Mic/Line Input 3 Right Pins) 1 x 6-Pin Block Connector (Bottom Row Control Output: 3 Left Pins, Control Input: 3 Right Pins) Mute: 1 x 2-Pin Block Connector

Power

Power Source	PoE
Power Consumption	2.5 W
