Shure SCM268 Four-Channel Transformer Balanced Microphone Mixer wit...

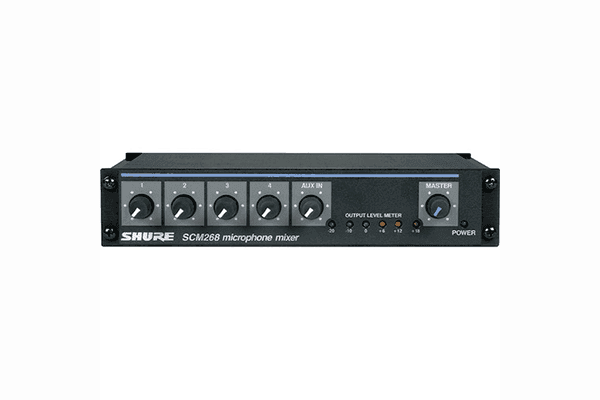

The Shure SCM268 4-Channel Microphone Mixer offers simplicity and routing flexibility in a convenient, compact, and rugged enclosure. The SCM268 features 4 high quality transformer-balanced XLR inputs and mic/line level switchable XLR output. Transformer balanced I/O provides maximum audio gain, minimizing hum and line noise. Two stereo paired (4 mono) RCA inputs except line level signal from consumer audio devices such as CD and cassette players, DVD players, VCR's etc.
Also provided is an additional, independent AUX line level input with level control via a single RCA connector. Six sealed rotary pots provide level control for mic channels 1 through 4, AUX input channel and Master. The SCM268 also provides 12V phantom power for condenser microphones.
Features
Specification
| Inputs | 4 - Balanced XLR Microphone 2 - Stereo (L/R) RCA line inputs |
| Output | 1 - Balanced XLR output (mic/line level) 1 - AUX unbalanced RCA Phono |
| Link Input/Output | No |
| Impedance | Input MIC (XLR): Designed for use with 19-600 ohm load, 1.2k ohms actual, -5dBV clipping level AUX: Designed for use with - / < 2k ohm load, 21k ohms actual, >28 dBV clipping level Outputs MIC: Designed for use with low-Z inputs, 0.2 ohms actual, -21 dBV clipping level LINE: Designed for use with > 600 ohms, 72 ohms actual, +18 dBV clipping level AUX: Designed for use with > 2k ohms, 870 ohms actual, +7dBV clipping level |
| Gain | Low-Impedance Mic Input (150 ohms): MIC 32dB, LINE 72dB, AUX 60dB - Outputs Line Input: MIC -9dB, LINE 31dB, AUX 19dB - Outputs Stereo Input: MIC -5dB, LINE 35dB, AUX 23dB - Outputs |
| Hum & Noise | Equivalent Input Hum and Noise: -124 dBV (150 ohm source; 22Hz to 22kHz) Output Hum and Noise: (22 Hz to 22kHz; channel controls full counterclockwise) Master full counterclockwise -92dBV Master full clockwise -70dBV |
| Metering | 6-segment LED meters |
| Controls | Sealed Rotary Potentiometers: MIC 1-2, STEREO 1-3 and MASTER gain controls. BASS and TREBLE control. DIP Switches |
| Phantom Power | 12 Vdc open-circuit through 340 ohm series resistors |
| Operating Temperature | Operating: -7 to 49 degrees C (20 to 120 degrees F) Storage: -29 to 74 degrees C (-20 to 165 degrees F) |
| Power | SCM268: 100 - 120 Vac, 50/60 Hz, 60mA SCM268E: 220 - 240 Vac, 50/60 Hz, 30mA |
| Dimensions | 1.72 x 8.60 x 6.37 in. (43 x 218 x 162mm) |
| Weight | 2.62 lbs (1.20 kg) |
| Package Weight | 5.465 lb |
| Box Dimensions (LxWxH) | 13.8 x 10.1 x 3.5" |
