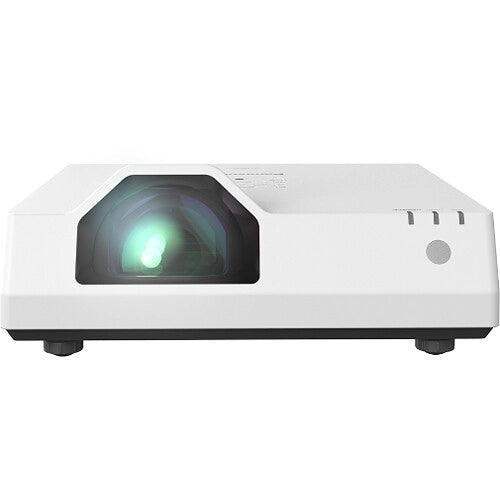

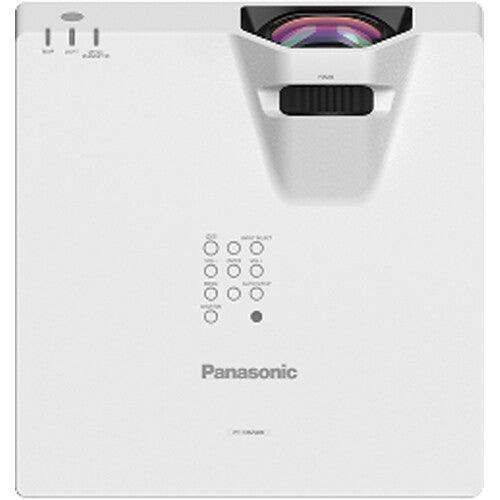

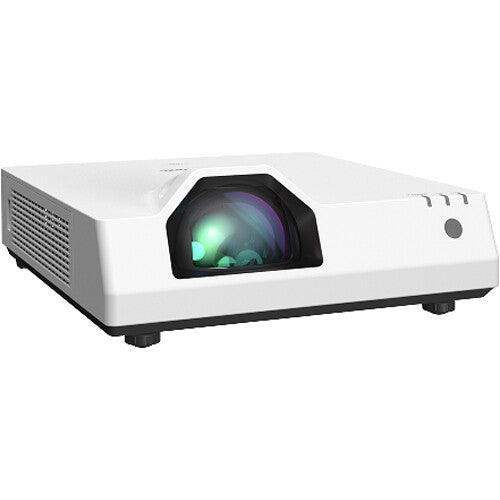

Panasonic PT-TMZ400U 4000 Lumens, WUXGA, Short Throw, Laser
From conference rooms to home theaters, the PT-TMZ400U 4000-Lumen WUXGA Short-Throw Laser 3LCD Projector from Panasonic can project a large and bright image to make presentations pop and movies more cinematic and engaging. The TMZ400U's laser light source can deliver 4000 lumens of brightness, making it ideal for dark to brightly lit spaces. The 3LCD system offers HD output at a wide 16:10 aspect ratio at sizes from 50 to 105". Thanks to the short 0.47 to 0.59:1 throw, you can conveniently place the projector close to the wall or (optional) screen. This narrows the distance, minimizing the chance of someone walking in front of the lens, and provides flexibility in your installation options.
- 360° installation
- Up to 20,000-hour laser lifespan under normal brightness
- One USB-A port for 5V/2A power output and support for an optional AJ-WM50 wireless module
- 10W mono speaker built-in
Features
- Brightness of 4000 Lumens
- WUXGA 1920 x 1200 Native Resolution
- Short 0.47 to 0.59:1 Throw Ratio
- 2 x HDMI & 2 x VGA Inputs
- 50 to 105" Screen Size
- Vertical & Horizontal Keystone
- 360° Installation
- Up to 20,000-Hour Normal Laser Lifespan
- 10W Mono Speaker Built-In
- Remote Control Included
Specs
Panasonic TMZ400U Specs
| Display System | LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Minimum: VGA - 712 x 483 @ 60 Hz Maximum: 4K UHD - 3840 x 2160 @ 30 Hz |
| Maximum Brightness | 4000 Lumens |
| Aspect Ratio | Native: 16:10 Supported: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio | 3,000,000:1 |
| Scan | Horizontal: 15.7 to 91.1 kHz Vertical: 24 to 85 kHz |
| Focus | Manual |
| Lens | f/1.8 (f = 6.08 mm) |
| Throw Distance | 1.48 - 14.96' / 0.45 - 4.56 m |
| Throw Ratio | 0.43 to 0.54:1 (80" Screen Size @ 28.74" / .73 m) |
| Projection Size | 50 - 105" / 1.3 - 2.7 m |
| Keystone Correction | Auto / Manual-Vertical: ± 15° Manual-Horizontal: ± 15° |
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 10W |
| Projection Tilt Option | Yes |
| Remote | Yes |

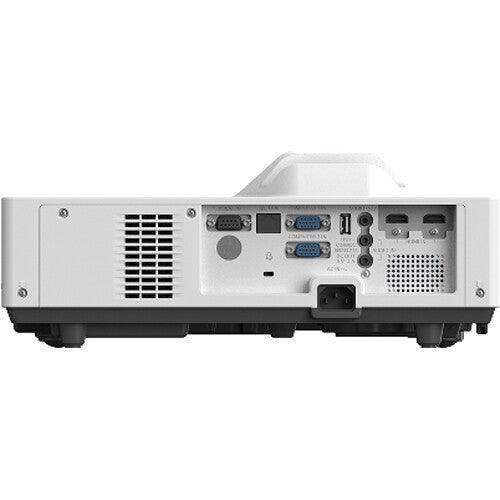

| Inputs/Outputs | 2 x HDMI Audio, Video Input 2 x DE-15/DB-15 (VGA) Video Input 2 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x DE-9/DB-9 (RS-232) Control Input 1 x RJ45 (Ethernet) Control, LAN Input/Output |
| HDCP Support | Version 1.4 |
| Mobile App Compatible | No *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
| Bluetooth | None |
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 20,000 Hours Low Brightness: 24,000 Hours |
| Fan Noise | Medium Brightness: 35 dB Low Brightness: 24 dB |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 240 W Medium Brightness: 215 W Low Brightness: 160 W Standby Mode (Lamp Off): 0.5 W |
| Operating Altitude | 2296' / 700 m |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 20 to 80% (Non-Condensing) |
| Dimensions (W x H x D) | 13.7 x 5.4 x 14.6" / 349.0 x 138.0 x 370.0 mm |
| Weight | 10.8 lb / 4.9 kg |
