JBL NPATCH BLK Nano Patch+ Compact 2-Channel Passive Volume Controller
JBL NPATCH BLK Nano Patch+ Compact 2-Channel Passive Volume Controller is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00

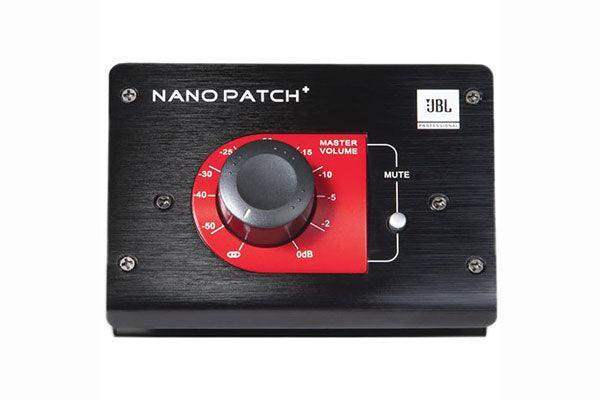

JBL NPATCH BLK Nano Patch+ Compact 2-Channel Passive Volume Controller
The Nano Patch+ from JBL is a versatile passive volume controller in a compact desktop format. It can be used as a physical volume attenuation knob for audio software applications, when connected between a computer audio interface, or soundcard master output and a pair of active (powered) monitor speakers.
Reducing levels from your software only reduces the audio bit depth. The Nano Patch+ allows you to maintain a maximum audio resolution and attenuate your monitoring volume with the confidence that your audio is not compromised. The Nano Patch+ has no active circuitry, buffers, transistors, batteries, or power supply and limits interference to the main passive outputs. It delivers attenuated signal, that is naturally transparent.

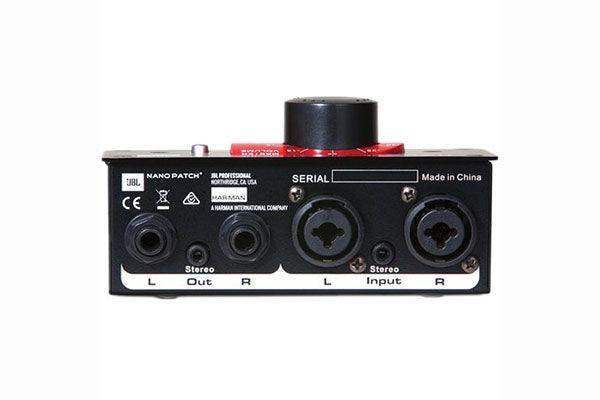

| Input 1 | 2 x combination XLR/TRS 1/4" (6.3 mm) balanced/unbalanced |
| Input 2 | 1/8" (3.5 mm) mini-jack |
| Maximum Input Level | +26 dB |
| Input Impedance | 5 kOhms |
| Output 1 | 2 x TRS 1/4" (6.3 mm) balanced/unbalanced |
| Output 2 | 1/8" (3.5 mm) |
| Maximum Output Level | > +26 dB |
| Impedance | 0 to 5 kOhms |
| Frequency Response | 10 Hz to 40 kHz (0/0.15 dB) |
| Signal to Noise | Better than -120 dB |
| Channel Cross Talk | > -80 dB |
| Distortion | < 0.0004% |
| Dimensions | 5.1 x 3.75 x 2.0" (130 x 95 x 51 mm) |
| Weight | 0.8 lb (.34 kg) |
