DJI MATRICE 30T Enterprise Drone Combo - Shield Plus - 1 yeas Support

DJI SKU: CP.EN.00000383.SP
No reviews

Price:
Sale price$14,040.00

Description

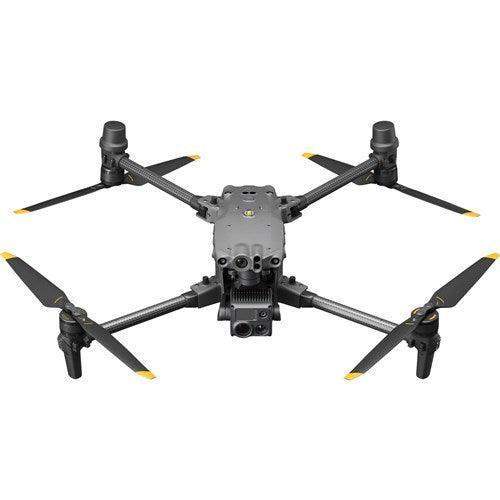

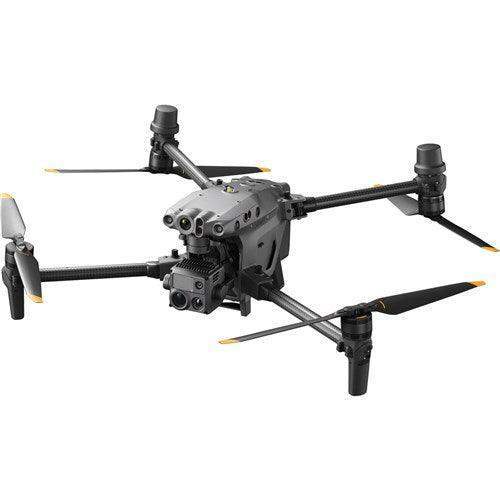

DJI MATRICE 30T Enterprise Drone Combo



Introducing the new DJI Matrice 30T - one of the most compact and feature filled enterprise drones on the market. The M30T series integrates a 48MP 1/2'' CMOS sensor zoom camera with a 5x-16x optical zoom that also features a 200x digital zoom capability. The 12MP wide-angle camera can capture photos in 8K or 4K video at 30 frames per second. The laser range finder provides precise coordinates for objects up to 3937 feet (1200 meters) away. Additionally - the M30T also features a 640x512 radiometric thermal camera. This platform was designed to withstand the harshest of environments and features an Ingress

Protection rating of IP55 with an operating temperature -4 to 122 °F (-20 to -50°C). Equipped with a long list of safety features - this package includes a low-light lens for nighttime operations and built-in redundancies and backup systems - including the ability to land with three working motors in the event something goes wrong during flight. The four-antenna OcuSync 3 transmission system and LTE link support backup allows you to retain connection in complex terrains and working conditions. The M30T series comes equipped with all the advanced features of the Matrice 300 in a compact airframe that is slightly larger than a Mavic Enterprise - making it one of the best commercial solutions for professionals across the board.

With a coverage limit equivalent to the product's value, an unlimited number of free repair can be offered within one year after the product is activated and includes 1 standard maintenance service.

The new DJI Matrice 30T is DJI Enterprise's flagship drone that fits in a backpack. It integrates multiple high-performance sensors into one single camera payload, is controlled with an ingenious redesigned remote control and runs on upgraded Pilot 2 software, which significantly improves the flight experience. The M30T model offers much more power, endurance and capability for rugged professional uses, while its size makes it ideal for easy transportation and fast setup.

Apart from its outstanding performance and new format, the DJI M30T allows professionals to fly and perform beyond their immediate surroundings. It integrates smoothly with the new DJI FlightHub 2 fleet management cloud-based software and the DJI Dock for collaboration with remote and unattended operations, bringing efficiency innovation to various industries.

Best in Class Hybrid Thermal Data Imagery

The M30T model integrates a 48 megapixel 1/2'' CMOS sensor zoom camera with 5×~16× optical and 200× digital zoom, a 12  megapixel wide-angle camera, 8k photo 4K/30 fps video resolution, and a laser rangefinder which can give the precise coordinates of objects up to 1,200 meters away. The M30T also features an additional 640x512 px radiometric thermal camera.

A Robust, Safe and Reliable Aerial Platform with Extraordinary Resistance

With IP55 ingress protection, the M30T offers outstanding performance in harsh environments, in heavy rains, high winds, high altitudes, even in icy and snowy conditions and extreme temperatures from -20° C to 50° C.

The DJI M30T also offers an improved first-person view pilot camera for low light conditions, built-in redundancies and backup systems, three-propeller emergency landing, a Health Management System, and six-way obstacle avoidance sensors enabling the pilot to focus on the mission. Its four-antenna OcuSync 3 Enterprise transmission ensures a strong redundancy, and it supports LTE link backup, in the face of complex terrain and working conditions.

Unlike other commercial drones, the DJI M30T adopts a foldable integrated lightweight design (3.7 kg take-off weight) that is easy to unfold, store and carry anywhere. Its new self-heating TB30 battery design can support at least 400 charge cycles and allows a 41-minute flight time. Its smart BS30 charging case allows quick battery charging from 20% to 90% in 30 minutes. The M30T also has a new self-locking system and can be folded by just pressing a button. This makes it the fastest, easiest high-performance DJI Enterprise drone to set up.

DJI Care Enterprise Plus for one year


Improved Transmission System

The all-new OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel3 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz4 enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.

Enhanced Flight Performance

The refined airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions.

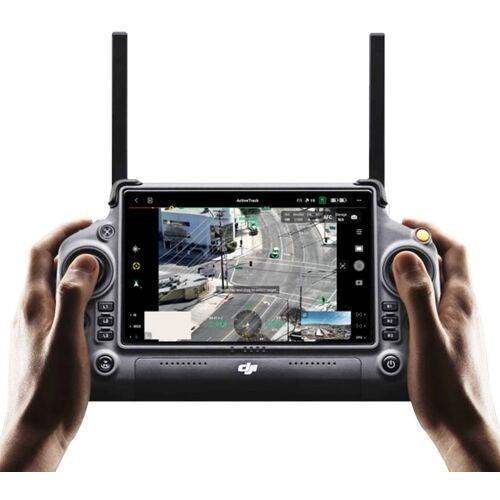

Advanced Dual Control

Either operator can now obtain control of the aircraft or payload with a single tap. This creates new possibilities for mission strate- gies as well as higher flexibility during operations.

A Powerful Vision System You Can Rely On

To enhance in-flight safety and aircraft stability, dual-vision and TOF sensors appear on all six sides of the aircraft, offering a maximum detection range of up to 40m, with options to customize the aircraft’s sensing behavior via the DJI Pilot App. Even in complex operating environments, this 6 Directional Sensing and Positioning system helps keep the aircraft and the mission safe.

  • 41-min Max Flight Time
  • 15m/s Wind Resistance
  • 7000m Service Ceiling
  • 23m/s Max Speed
  • IP55 Protection
  • Temperatures from -20C to 50C
  • Dual-Vision and ToF Sensors
  • ADS-B Receiver
  • Built-in Advanced Redundancies and Backup Systems
  • Wide Angle Camera: 12MP 1/2" CMOS Sensor
  • Zoom Camera: 48MP 1/2" CMOS Sensor
  • Thermal Imaging Camera with Laser Rangefinder

Base Configuration:

  • Aircraft Body*1
  • DJI Smart Controller Enterprise *1
  • USB Charger *1
  • USB-C Cable *1
  • WB37 Intelligent Battery *1
  • 2110 Propeller (CW) *2
  • 2110 Propeller (CCW) *2
  • Landing Gear *2
  • Spare Stick Cover (pair) *1
  • Spare Propeller Holder *2
  • Spare Gimbal Damper *4
  • USB Cable (with Double A Ports) *1
  • Vision System Calibration Plate *1
  • Carrying Case *1
  • Smart Controller Lanyard *1
  • Rubber Port Cover (Set) *1
  • Screws and Tools

Combo Configuration:

  • Aircraft Body*1
  • DJI Smart Controller Enterprise *1
  • USB Charger *1
  • USB-C Cable *1
  • TB60 Intelligent Flight Battery *2
  • WB37 Intelligent Battery *1
  • 2110 Propeller (CW) *2
  • 2110 Propeller (CCW) *2
  • Landing Gear *2
  • Spare Stick Cover (pair) *1
  • Spare Propeller Holder *2
  • Spare Gimbal Damper *4
  • USB Cable (with Double A Ports) *1
  • Vision System Calibration Plate *1
  • Carrying Case *1
  • Smart Controller Lanyard *1
  • Rubber Port Cover (Set) *1
  • Screws and Tools
  • BS60 Intelligent Battery Station *1

Aircraft

Operation Frequency 2.4000-2.4835 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE
Hovering Accuracy Vertical:'+/-0.1 m (Vision System enabled);'+/-0.5 m (N-mode with GPS);'+/-0.1 m (RTK)
Horizontal:'+/-0.3 m (Vision System enabled);'+/-1.5 m (N-mode with GPS);'+/-0.1 m (RTK) (windless or breezy)
RTK Positioning Accuracy 1 cm+1 ppm (horizontal)
1.5 cm+1 ppm (vertical) (fixed RTK enabled)
Max Angular Velocity Pitch: 150 Degree /sec.; Yaw: 100 Degree /sec.
Max Tilt Angle 35 Degree (N-mode and Forward Vision System enabled: 25 Degree )
Max Ascent/Descent Speed 6 m/s, 5 m/s
Max Tilt Descent Speed 7 m/s
Max Horizontal Speed 23 m/s
Max Service Ceiling Above Sea Level 5,000 m (with 1671 propellers)
7,000 m (with 1676 propellers) (without other payload)
Max Wind Resistance 15 m/s
12 m/s during taking off and landing
Max Hover Time 36 min
GNSS 41 min
Ingress Protection Rating IP55
Dimensions (L x W x H) Unfolded, excl. propellers: 18.5 x 23 x 8.4" (470 x 585 x 215mm)
Folded: 14.3 x 8.4 x 7.6" (365 x 215 x 195mm)
Max Takeoff Weight 8.8 lbs (4kg)

TB30 Intelligent Flight Battery

Capacity 5880 mAh
Voltage 26.1 V
Battery Type LiPo 6S
Energy 131.6 Wh
Operating Temperature -4 Degree to 122 Degree F (-20 Degree to 50 Degree C)
Storage Temperature 20 Degree to 30 Degree C (68 Degree to 86 Degree F)
Charging Temperature -20 Degree to 40 Degree C (-4 Degree to 104 Degree F)(When the temperature is lower than 10 Degree C (50 Degree F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Chemical System LiNiMnCoO2

Gimbal

Angular Vibration Range +/-0.01 Degree
Controllable Range Pan:'+/-90 Degree
Tilt: -120 Degree to'+45 Degree
Mechanical Range Pan:'+/-105 Degree
Tilt: -135 Degree to'+60 Degree
Roll:'+/-45 Degree

Zoom Camera

Sensor 1/2" CMOS, Effective pixels: 48M
Lens Focal length: 21-75 mm (equivalent: 113-405 mm)
Aperture: f/2.8-f/4.2
Focus: 5 m to Infinite

Wide Camera

Sensor 1/2" CMOS, Effective pixels: 12M
Lens DFOV: 84 Degree
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to Infinite

FPV Camera

Resolution 1920 x 1080
DFOV 161 Degree
Frame Rate 30 fps
