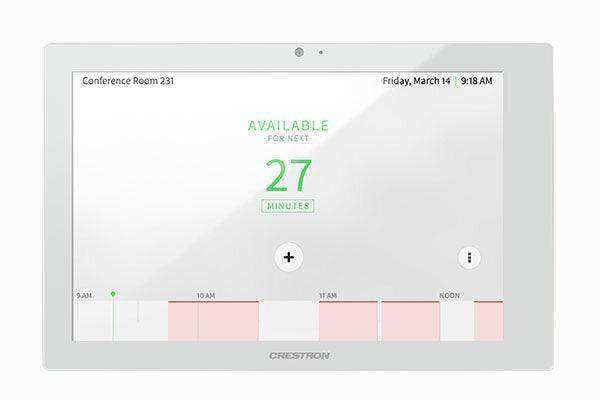

Crestron TSS-1070-W-S 10.1 in. Room Scheduling Touch Screen, White Smooth

Product Overview

The Crestron TSS-1070-W-S is a 10.1 in. room scheduling touch screen in a white smooth finish, designed for enterprise meeting room and huddle space scheduling. It mounts at the entrance to a room and runs the Crestron Scheduling app for direct integration with popular calendaring services. Powered over Ethernet and managed through the XiO Cloud service, it provides a purpose-built alternative to consumer tablets. Optional light bar and hallway sign accessories increase room availability visibility.

Product Description

The TSS-1070-W-S is engineered for permanent installation and reliable continuous operation in corporate, education, and conference center environments. The 10.1 in. TFT active matrix display runs at 1920 x 1200 WUXGA resolution with 400 nits brightness, 1000:1 contrast, and projected capacitive five-point multitouch. Running the Crestron Scheduling app, the panel integrates with Crestron Fusion software, Microsoft Exchange Server and Office 365, Google Calendar and G Suite, CollegeNET 25Live, and Ad Astra software, with support for various third-party scheduling apps delivered via firmware. Connectivity is provided through a single Ethernet connection with PoE or PoE+ power, plus Wi-Fi for deployments without structured cabling, and dual USB 2.0 host ports for an optional light bar or hallway sign accessory. Enterprise-grade security includes 802.1X authentication, TLS encryption, HTTPS, SNMP, and Active Directory service integration. A built-in Bluetooth beacon and proximity sensor support touchless wake and the Crestron mobile apps, and the panel checks nightly for app updates. Note that PoE+ is required when a light bar or hallway sign is connected via USB. For specifications not listed here, refer to the Crestron data sheet.

Key Features

• 10.1 in. Capacitive Display — 1920 x 1200 WUXGA resolution, 400 nits brightness, 1000:1 contrast, and five-point projected capacitive multitouch.
• Purpose-Built for Scheduling — Runs the Crestron Scheduling app as a managed alternative to consumer tablet devices.
• Broad Scheduling Integration — Works with Crestron Fusion, Microsoft Exchange and Office 365, Google Calendar and G Suite, CollegeNET 25Live, and Ad Astra software.
• PoE / PoE+ Powered — Single Ethernet run powers the panel; PoE+ required when a USB light bar or hallway sign is connected.
• Wi-Fi Option — IEEE 802.11a/b/g/n/ac wireless connectivity for spaces without available Ethernet cabling.
• Accessory Ready — Dual USB 2.0 host ports support optional light bar, hallway sign, or RFID card reader accessories.
• Enterprise Security — 802.1X authentication, TLS, HTTPS, SNMP, and Active Directory service integration.
• XiO Cloud Management — Cloud-based provisioning, monitoring, and firmware management across an enterprise.
• Proximity and Bluetooth — Built-in proximity sensor wakes the screen and a Bluetooth beacon supports the Crestron mobile apps.

Typical Applications

• Corporate conference rooms and huddle spaces requiring door-mounted scheduling.
• Higher education classrooms and lecture halls using CollegeNET 25Live or Ad Astra.
• Enterprise campuses standardizing on Microsoft Exchange or Google Calendar booking.
• Facilities planning to add an optional light bar or hallway sign for availability indication.

Technical Specifications

Frequently Asked Questions

Does this include a light bar?
No. The TSS-1070-W-S is the touch screen panel only. A light bar is included with the TSS-1070-W-S-LB KIT, or accessories can be added separately via the USB ports.

What power does it require?
The panel is powered over Ethernet and supports PoE and PoE+. PoE+ is required when a light bar or hallway sign accessory is connected via USB.

Which scheduling platforms are supported?
The Crestron Scheduling app integrates with Crestron Fusion, Microsoft Exchange and Office 365, Google Calendar and G Suite, CollegeNET 25Live, and Ad Astra software.

Can it connect over Wi-Fi?
Yes. The panel supports IEEE 802.11a/b/g/n/ac Wi-Fi for installations without available Ethernet cabling.

What is the warranty?
Crestron provides a 3-year limited warranty. For assistance with specification, integration, or ordering, Contact Creation Networks.
