HD-MD2X1-8K 2x1 8K AV Switcher and Smart Display Controller

Professional 8K AV Switching for Modern Commercial Environments

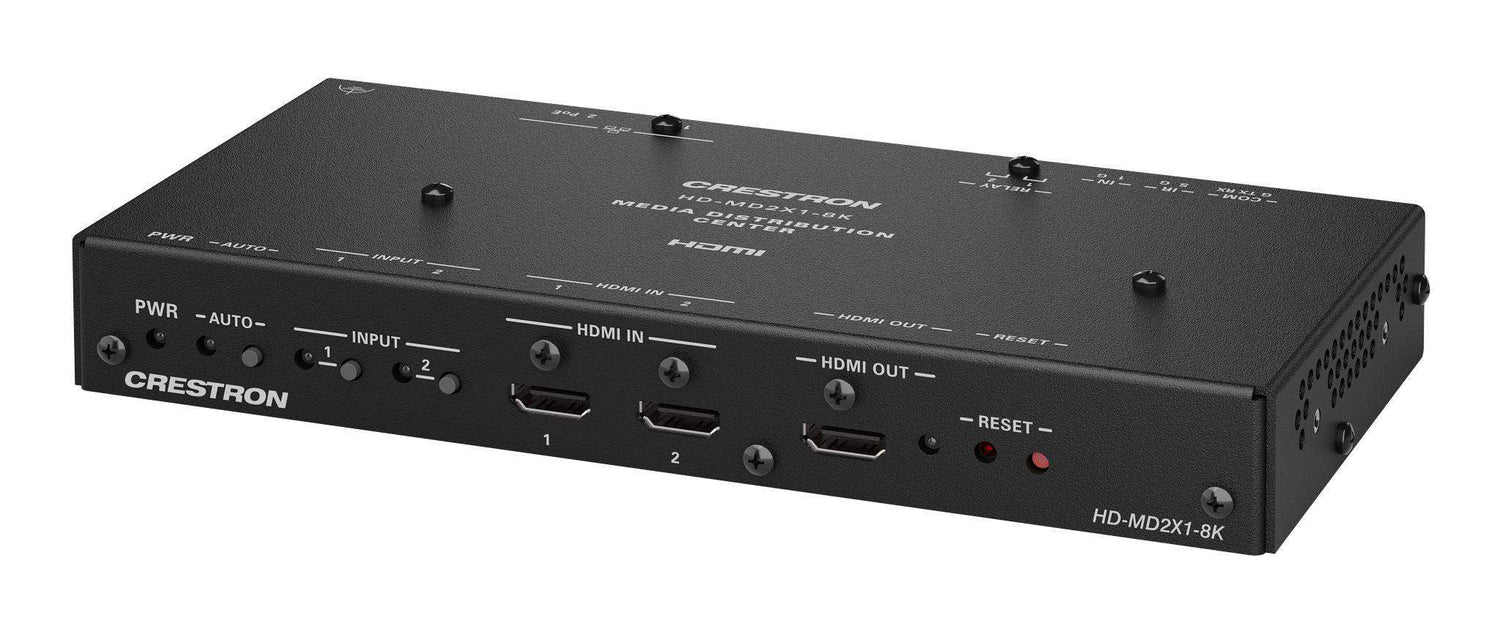

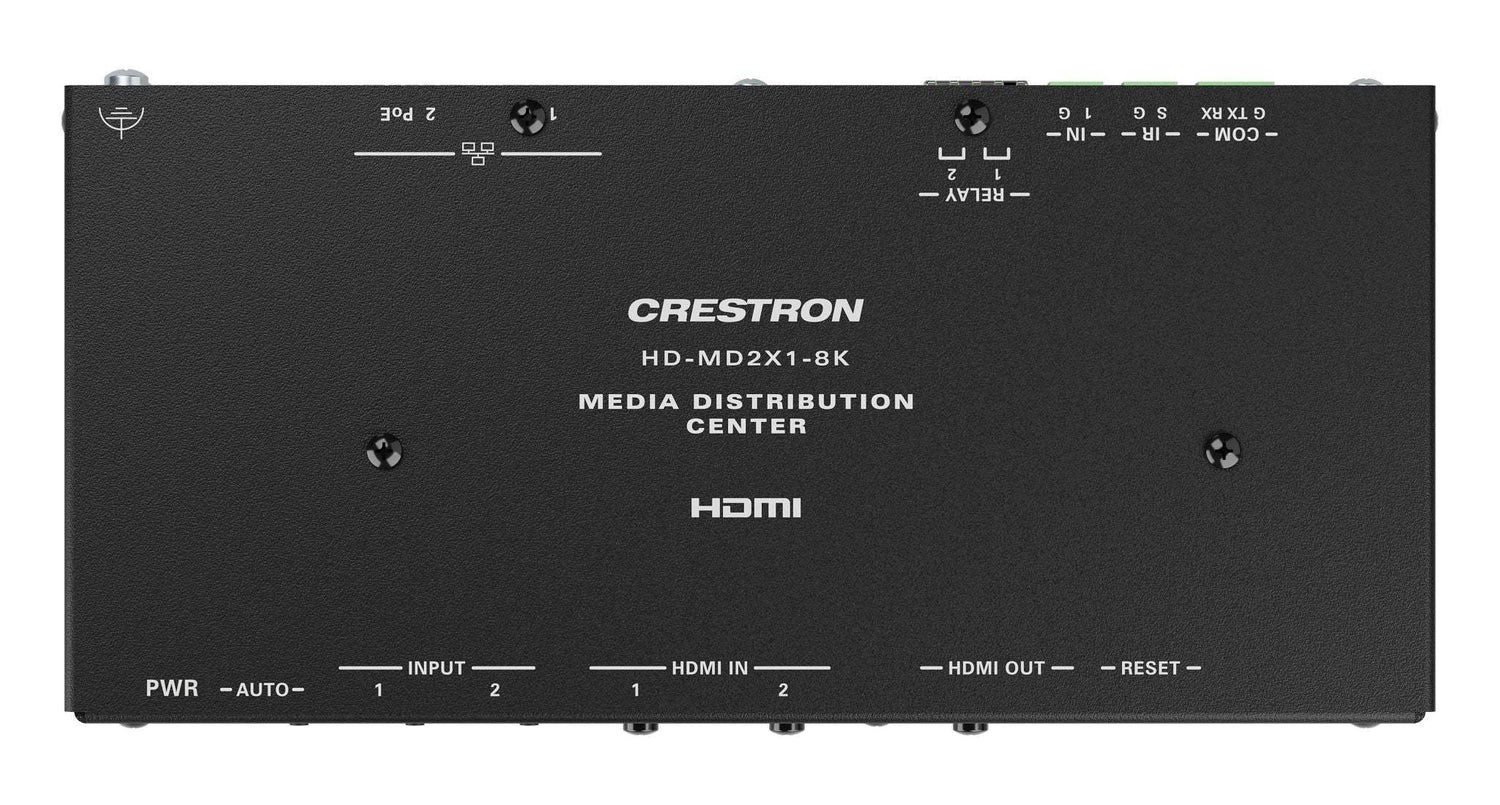

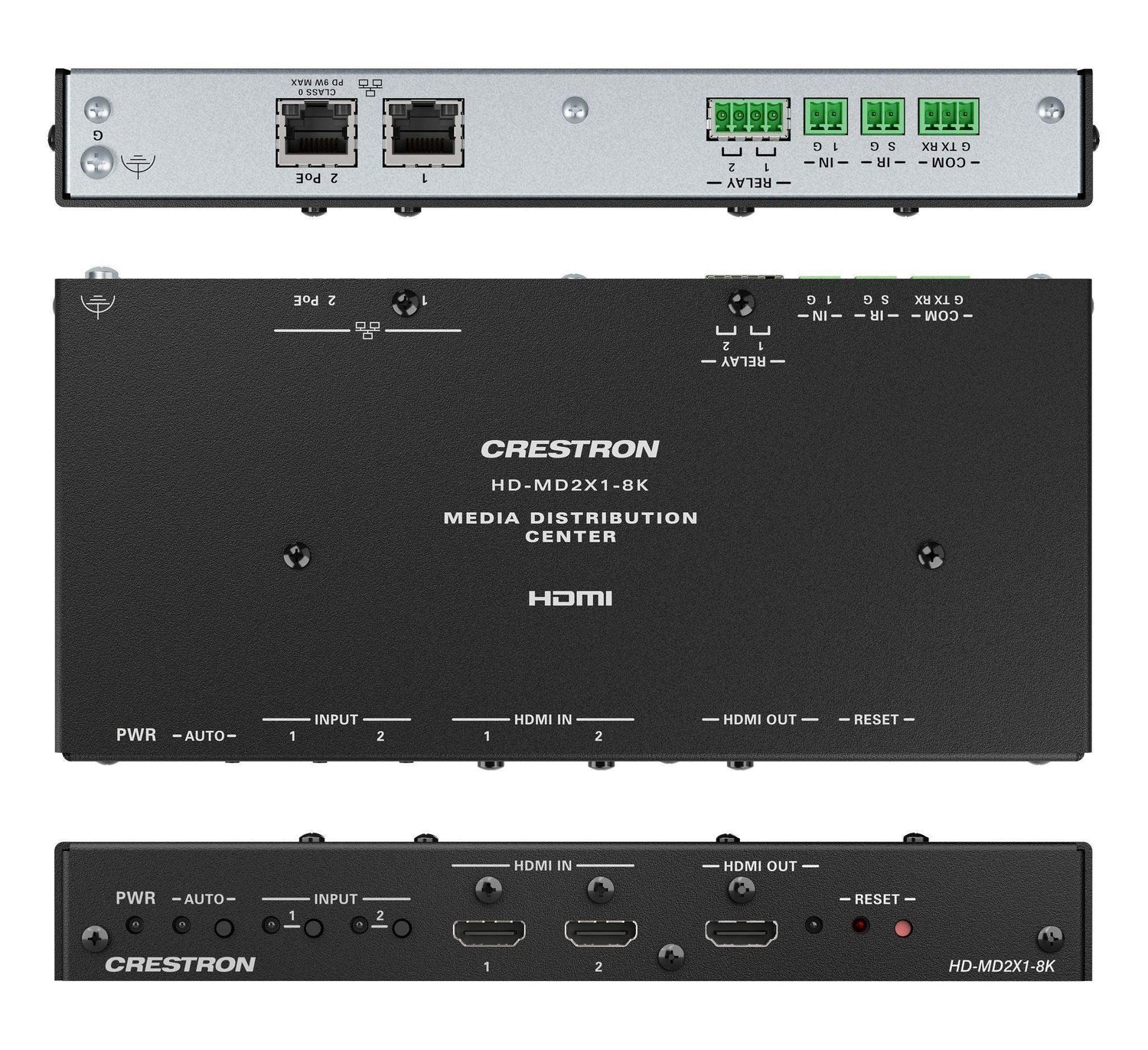

The Crestron® HD-MD2X1-8K is a high-performance 2x1 8K HDMI® switcher and smart display controller designed for seamless control of commercial-grade displays—without the need for a separate control processor. Ideal for professional AV installations, it provides automated input switching, display power scheduling, and device control through a variety of protocols.

Engineered for use in:

• Boardrooms

• Conference rooms

• Houses of worship

• Government spaces

• Higher education facilities

• Commercial meeting spaces

• Multi-purpose rooms

• All-hands collaboration environments

• Digital signage applications

Key Features & Advantages

Unmatched Display Control Versatility

• Supports CEC control via HDMI for streamlined display automation

• Device control via RS-232, IR, relay outputs, and digital input for integrated source control

• Enables display on/off scheduling by video sync, occupancy, or manual schedule

Ultra-HD Performance with HDR Support

• Supports resolutions up to 8K60 4:4:4 for crystal-clear presentations

• Fully compatible with HDR10, HDR10+, and Dolby Vision® formats

• HDMI 2.1 and HDCP 2.3 compliant for next-generation content compatibility

Plug-and-Play Smart Switching

• Automatic input switching based on active signal or priority setting

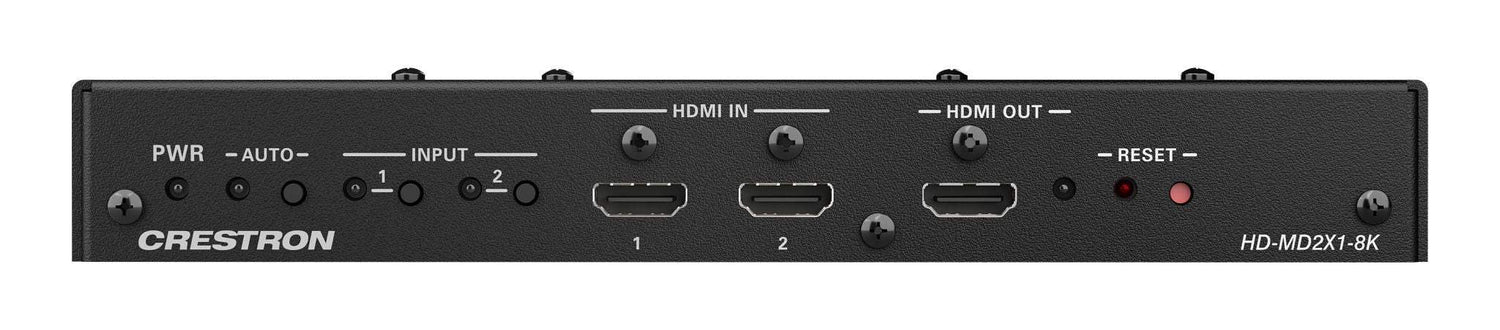

• Manual front-panel pushbuttons allow quick source selection without additional equipment

• EDID management ensures optimal resolution and format display across connected sources

Secure, Scalable, and Network-Ready

• Enterprise-grade security including 802.1X, PKI, Active Directory® integration, TLS, SSH, and HTTPS

• Supports PoE (Power over Ethernet) for simple installation and power delivery

• Built-in web interface enables fast configuration and duplication across devices

• Fully integrable with Crestron XiO Cloud®, Crestron Home OS®, and custom drivers

Technical Specifications

Video

• Input: HDMI (2x), with 8K60 4:4:4, HDR, Deep Color, Dolby Vision® support

• Output: HDMI (1x), with full HDR and 8K support

Audio

• Formats: Dolby Digital®, DTS:X®, LPCM (up to 8 channels), Dolby Atmos®, and more

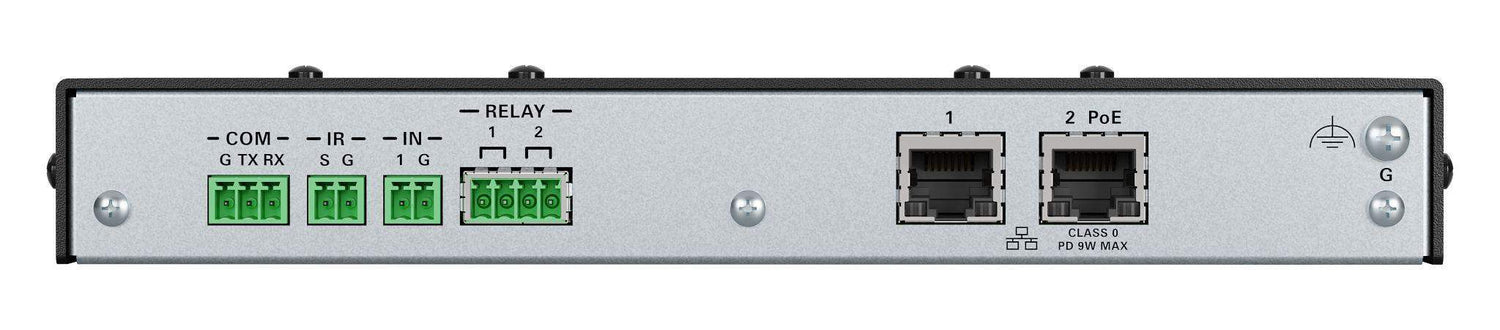

Control Ports

• RS-232 COM port with software handshaking

• IR control port (60 kHz compatible)

• 2 relay outputs (1A, 30V), MOV arc suppression

• Digital input (0–24VDC logic input range)

Connectivity

• Dual Ethernet ports (PoE Class 3 supported)

• Web interface for device setup and duplication

• Detachable terminal blocks for flexible installation

Build and Environment

• Compact form factor: 1.12" H x 8.36" W x 3.88" D

• Vented metal chassis with rack or surface mounting options

• Operating temperature: 32° to 104°F (0° to 40°C)

Why Choose the HD-MD2X1-8K?

• No control processor needed – Perfect for spaces without full automation systems

• 8K-ready AV switching – Stay ahead with future-proof signal compatibility

• Flexible control protocols – Easily integrates with commercial and residential AV systems

• Reliable AV automation – Supports occupancy-based display control, scheduling, and more

• Streamlined deployment – With PoE power, web configuration, and replicable setup

Competitor Comparison Highlights

• Display Automation Without Processor: Unlike many switchers requiring external control processors, the HD-MD2X1-8K supports CEC, RS-232, and IR directly.

• 8K and HDR Support: Not all commercial AV switchers offer 8K60 4:4:4 resolution and full HDR10+/Dolby Vision® compatibility.

• Enterprise-Grade Security: Advanced protocols like TLS and Active Directory® make it compliant for government and corporate AV environments.

• Integrated Web Interface: Configure and replicate across multiple rooms easily—reducing deployment time.
