Crestron Enclosure for DIN Rail Devices, 6 DIN Rails, 18 M Wide - DIN-EN-6X18
Crestron Enclosure for DIN Rail Devices, 6 DIN Rails, 18 M Wide - DIN-EN-6X18 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Crestron Enclosure for DIN Rail Devices, 6 DIN Rails, 18 M Wide - D...

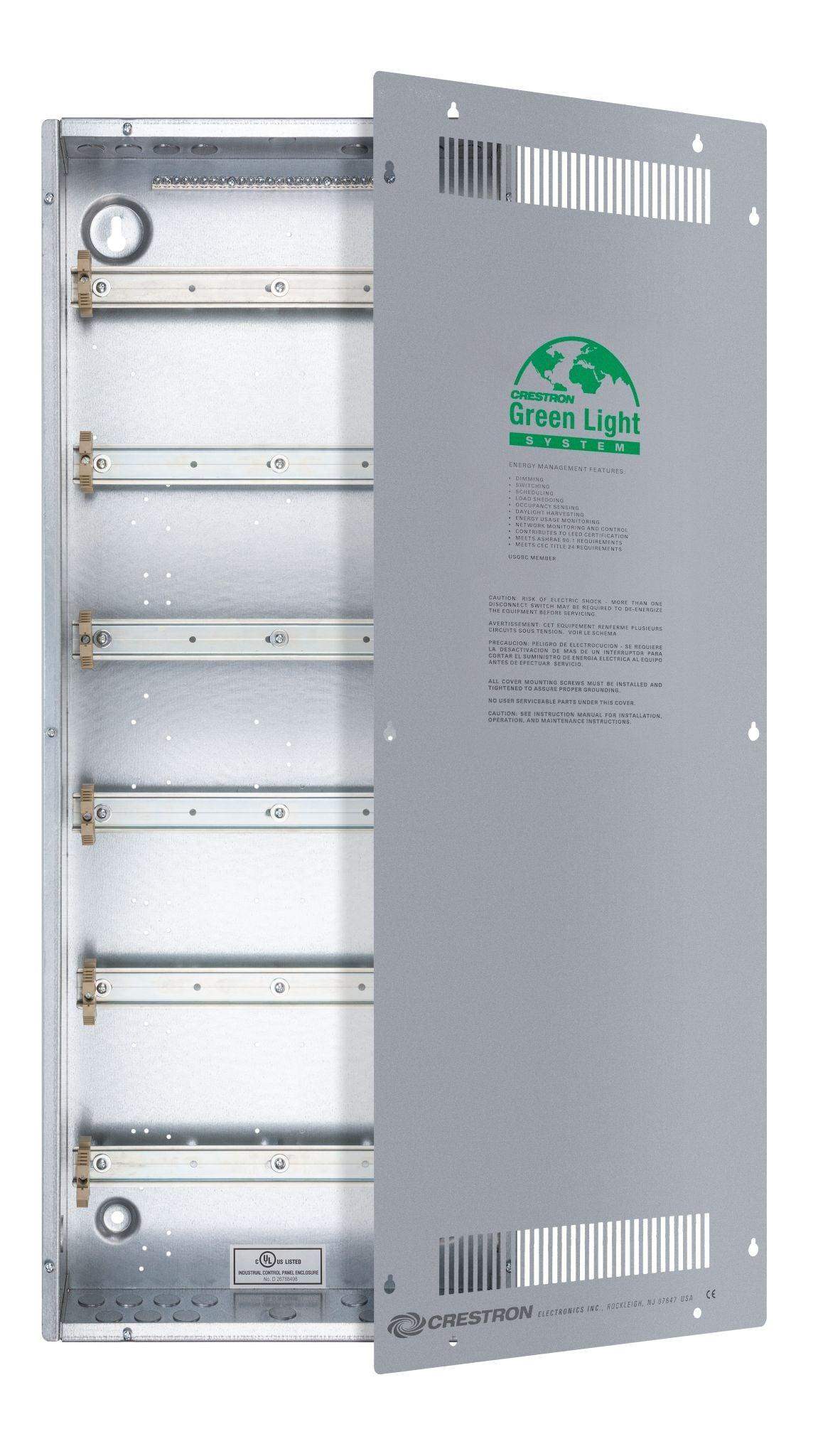

The Crestron® DIN‑EN series of UL® Listed enclosures provide centralized mounting solutions for DIN rail products such as the DIN‑AP3, DIN‑DALI‑2, and DIN‑1DIMU4. Third‑party DIN devices can also be installed. Included with these enclosures is a removable front cover for easy access to installed devices.
DIN Rail Mounting
Crestron DIN‑EN enclosures utilize 18 M wide DIN rails with 1 M (18 mm) of extra space between the end of the DIN rail and the enclosure wall to provide room for DIN device locking blocks or for wiring along the sides of the enclosure. Each enclosure is available in three sizes to accommodate two, three, or six DIN rails.
Key Features
- DIN rail enclosure for Crestron® DIN devices
- Available with 2, 3, or 6 DIN rails, 18 M wide
- Removable front cover for easy device access
- UL® Listed
Specifications
| DIN Rail Detail | ||
| DIN-EN-2X18 | (2) 342 mm x 35 mm rails | |
| DIN-EN-3X18 | (3) 342 mm x 35 mm rails | |
| DIN-EN-6X18 | (6) 342 mm x 35 mm rails | |
| Environmental | ||
| Temperature | 32° to 104° F (0° to 40° C) | |
| Humidity | 10% to 90% RH (noncondensing) | |
| Construction | ||
| Enclosure | 16-gauge galvanized steel | |
| Cover | 16-gauge galvanized steel; Gray powder coat finish |
|
| Mounting | Surface wall mount | |
| Dimensions | ||
| DIN-EN-2X18 | Height: 12.32 in. (323 mm); Width: 14.13 in. (359 mm); Depth: 4.38 in. (111 mm) |
|
| DIN-EN-3X18 | Height: 23.50 in. (597 mm); Width: 14.38 in. (366 mm); Depth: 4.44 in. (113 mm) |
|
| DIN-EN-6X18 | Height: 38.88 in. (989 mm); Width: 14.38 in. (366 mm); Depth: 4.44 in. (113 mm) |
|
| Weight | ||
| DIN-EN-2X18 | 11.4 lb (5.17 kg) | |
| DIN-EN-3X18 | 20.3 lb (9.18 kg) | |
| DIN-EN-6X18 | 30.5 lb (13.83 kg) | |
| Compliance | ||
| UL Listed | ||
