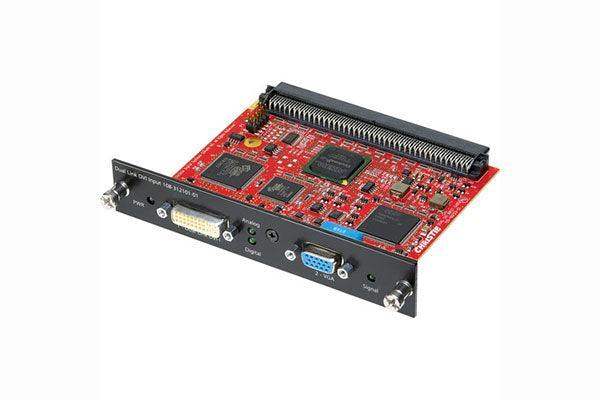

Christie Dual-Link DVI Input Card for Select Projectors - 108-312101-02

Product Overview

The Christie Dual-Link DVI Input Card (108-312101-02) adds DVI and VGA connectivity to a wide range of Christie modular projectors, including J Series, M Series, Boxer 4K30, Mirage, Roadie, Roadster, and Matrix platforms. The card carries a DVI-I connector supporting single- or dual-link DVI with HDCP, plus a 15-pin Sub-D VGA connector for analog sources. Both inputs can operate simultaneously, with a digital signal on the DVI port and an analog signal on the VGA port. It installs in the standard Christie option-card slot.

Product Description

Many installed Christie 3DLP platforms rely on a modular card-cage input system, and the Dual-Link DVI Input Card remains a key module for integrating DVI and legacy analog sources. The DVI-I connector accepts single-link or dual-link DVI signals with HDCP support, covering high-resolution computer sources and protected content. The 15-pin Sub-D VGA port handles analog RGB signals from legacy computers, signal generators, or facility infrastructure. Because the card supports a digital DVI signal and an analog VGA signal at the same time, one slot can serve two distinct sources without swapping cables. Per Christie vendor data, compatible platforms include the Boxer 4K30, Christie D4K2560 and D4K3560, J Series, M Series, DLV1400-DL and DLV1920-DL, HD/SXGA+/WUXGA DLP LED models, Matrix series, Mirage series, Roadie series, and Roadster series. Find more Christie input cards in our Christie Digital collection.

Key Features

• Dual-Link DVI with HDCP — DVI-I input supports single- or dual-link DVI HDCP video signals.
• VGA Analog Input — 15-pin Sub-D connector handles analog RGB sources.
• Simultaneous Inputs — supports a digital DVI signal and an analog VGA signal at the same time.
• Broad Platform Compatibility — fits Boxer 4K30, D4K2560/D4K3560, J/M Series, Mirage, Roadie, Roadster, Matrix, and more.
• Modular Card-Slot Installation — installs in the standard Christie option-card architecture.

Typical Applications

Used to connect DVI and legacy VGA sources in Christie 3DLP projection systems — staging and rental fleets, simulation and visualization facilities running Mirage or Matrix platforms, and installed auditorium systems that still serve analog infrastructure.

Technical Specifications

Specifications sourced from Christie vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Does this card support HDCP-protected sources?

Yes. The DVI-I input supports single- or dual-link DVI signals with HDCP per Christie vendor data.

Can the DVI and VGA inputs be used at the same time?

Yes. The card simultaneously supports a digital signal on the DVI input and an analog signal on the VGA port.

Which Christie projectors accept this card?

Compatible platforms include Boxer 4K30, D4K2560/D4K3560, J Series, M Series, DLV1400-DL/DLV1920-DL, Matrix, Mirage, Roadie, Roadster, and HD/SXGA+/WUXGA DLP LED models. Confirm your exact model with Creation Networks.

Is this the right card for legacy analog infrastructure?

If your facility still distributes analog RGB over VGA, this card lets a modern Christie card-cage projector accept those sources alongside a DVI feed in a single slot.
