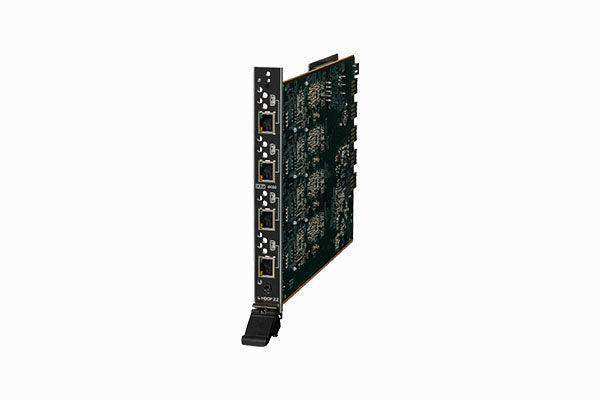

AMX DGX-O-DXL-4K60 – Enova DGX DXLink 4K60 Twisted Pair Output Board
AMX DGX-O-DXL-4K60 – Enova DGX DXLink 4K60 Twisted Pair Output Board is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
AMX DGX-O-DXL-4K60 – Enova DGX DXLink 4K60 Twisted Pair Output Board
AMX DGX-O-DXL-4K60 – Enova DGX DXLink 4K60 Twisted Pair Output Board
Product Overview
The AMX DGX-O-DXL-4K60 is the premium DXLink twisted pair output board for Enova DGX enclosures, distributing full 4K60 4:4:4 HDR matrix outputs over Cat-5e/6 to remote displays via DX-RX-4K60 receivers — the current-generation DXLink output board for DGX systems routing 4K60 content to distributed displays across a building or campus.
Product Description
The AMX DGX-O-DXL-4K60 modular DXLink 4K60 twisted pair output board routes full 4K60 4:4:4 HDR signals from the Enova DGX matrix over Cat-5e/6 structured cabling to remote displays via DX-RX-4K60 receivers — enabling 4K60 DGX matrix outputs to reach displays across a building or campus without HDMI cable infrastructure. It is the recommended DXLink output board for all new Enova DGX deployments where 4K60 display distribution over structured cabling is required, pairing with DGX-I-HDMI-4K60 or DGX-I-DXL-4K60 input boards for a complete 4K60 AV distribution system through the DGX matrix.
Key Features
- 4K60 4:4:4 HDR DXLink output — Full 4K60 over Cat-5e/6 to remote displays.
- Works with DX-RX-4K60 receivers — Complete 4K60 DXLink signal chain to display endpoints.
- DGX modular slot board — All DGX enclosure sizes.
- Current-generation DXLink output board — Recommended for new 4K60 DGX deployments.
Technical Specifications
| Specification | Value |
|---|---|
| Output Type | DXLink twisted pair (Cat-5e/6) |
| Signal | 4K60 4:4:4 HDR |
| Compatible Enclosures | DGX800, DGX1600, DGX3200, DGX6400 |
| SKU | FG1061-582 |
Typical Applications
- 4K60 4:4:4 signal distribution over twisted pair within 100m in enterprise conference rooms and boardrooms
- Enova DGX systems distributing 4K60 video to DXLink receivers at display endpoints throughout commercial facilities
- Digital signage networks requiring 4K60 signal transport over installed UTP cable infrastructure
- Government and corporate facilities expanding existing DGX matrix systems with 4K60 capability
- Large venue AV systems distributing 4K60 signals to multiple display zones over structured cabling
Frequently Asked Questions
What is the maximum cable run for the DGX-O-DXL-4K60?
DXLink twisted pair boards support runs up to 100 meters over compatible UTP or STP cabling to a compatible DXLink twisted pair endpoint.
Which enclosures is the DGX-O-DXL-4K60 compatible with?
The DGX-O-DXL-4K60 is compatible with Enova DGX 8, 16, 32, and 64 Digital Media Switcher Enclosures.
Does the DGX-O-DXL-4K60 support HDCP 2.2?
Yes. The DGX DXLink 4K60 boards support HDCP 2.2 for compliant 4K content distribution in commercial installations.
