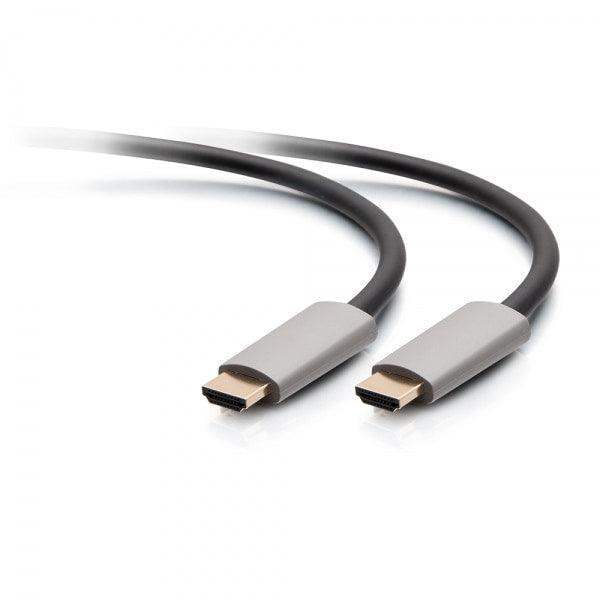

C2G 20ft Select High Speed HDMI® Cable with Ethernet 4K 60Hz - In-Wall CL2-Rated - CG50632
C2G 20ft Select High Speed HDMI® Cable with Ethernet 4K 60Hz - In-Wall CL2-Rated - CG50632 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
C2G 20ft Select High Speed HDMI® Cable with Ethernet 4K 60Hz - In-W...
The Select High Speed HDMI Cable with Ethernet supports all HDMI 2.0 features and is the perfect solution for connecting multimedia source devices in home theater, desktop or commercial audio video applications requiring high speed HDMI features. The CL2 rated cable jacket is designed to meet the requirements for in-wall installations. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection.
Features
Experience the latest HDMI features including:
• 4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution
• 3D video, Deep Color and x.v. Color™
• Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
• Up to 1536kHz audio sample frequency for the highest audio fidelity
• Simultaneous delivery of dual video streams to multiple users on the same screen
• Simultaneous delivery of multi-stream audio to multiple users (up to 4)
• Support for the wide angle theatrical 21:9 video aspect ratio
• Dynamic synchronization of video and audio streams
• CEC extensions for control of consumer electronics devices through a single control point
Specs
| Color : | Black |
|---|---|
| Length : | 20.00 Foot |
| Jacket Rating : | In Wall |
| UPC : | 757120506324 |
| Warranty : | Lifetime |
| Vendor : | C2G |
| Weight : | 1.252 LB |
Electrical Characteristics
• Signal bandwidth - 18Gbps
• Nominal impedance - 100Ω
• Nominal capacitance - 115.9pF/m
• Insulation resistance - 10MΩ
• Nominal attenuation - 300KHz-825MHz at 8dB, 825MHz-2.475GHz at 21dB, 2.475GHz-4.125GHz at 30dB
Physical Characteristics
• Temperature rating - 80°C
• Operating temperature - -20°C - 80°C
• Storage temperature - -20°C - 80°C
• Packaging - Polybag
Conductor 1 (5 pair)
• Conductor Type - 28AWG (7/0.127), Copper
• Insulation - Foamed PE SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 1.05mm
• Drain Wire - 28AWG (7/0.127), Copper
• Shield - Aluminum Foil, 125% Coverage
Conductor 2 (4 conductors)
• Conductor Type - 28AWG (7/0.127), Tinned Copper
• Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.7
Overall Cable
• Foil Shield - Aluminum Foil, 125% Coverage
• Braided Shield - 16/10/0.12, CCAM
• Jacket - PVC, Black, O.D. - 7.3 ± 0.2mm
Connectors (2)
• Connector Type - HDMI - Type A
• Plating - 1µm Gold
• Dimensions (HxWxL) - 13.0 x 21.0 x 39.0mm
