Williams Sound IR E4 IR+ Emitter

Name: Williams Sound IR E4 IR+ Emitter
Brand: Williams Sound
SKU: IR E4
Price: 615.50 USD
Availability: InStock

Authorized Dealer

$615.50

Shipping calculated at checkout.

Williams Sound | SKU: IR E4

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

The IR+ features a distributed IR emitter array architecture allowing up to four emitters either stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations.

The IR E4 Emitter can be paired with an IR M1 modulator. Up to 4 emitters can be connected to the IR M1 directly, and up to 16 emitters can be connected with the use of IR A4 arrays.

The IR E4 is not a stand alone system and requires an IR M1 modulator to function.

System Includes

(1) BKT 024 wall / ceiling mounting bracket

Specifications

IR E4

Dimensions:	7.5” (W) x 1.4” (H) x 3.6” (D) (19.1 cm x 3.6 cm x 9.1 cm)
Weight:	0.8 lb (362 g)
Color:	Black
Power:	48 VDC supplied by IR M1 via CAT 5e cable.
Coverage Area:	Up to 18,000 (1670 m²) square feet in single channel mode

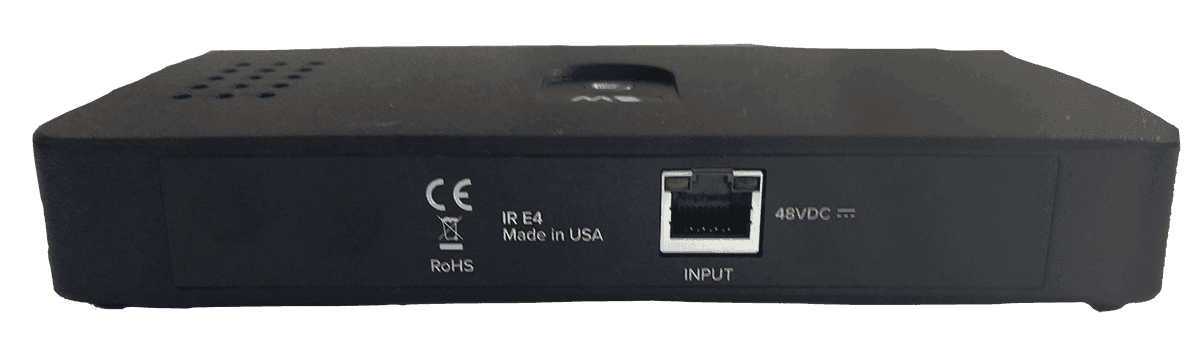

Connectivity:	+48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1.
Operating requirements:	0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Approvals:	CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty:	2 years on Emitter; 90 days on accessories

Warranty

2 Years
