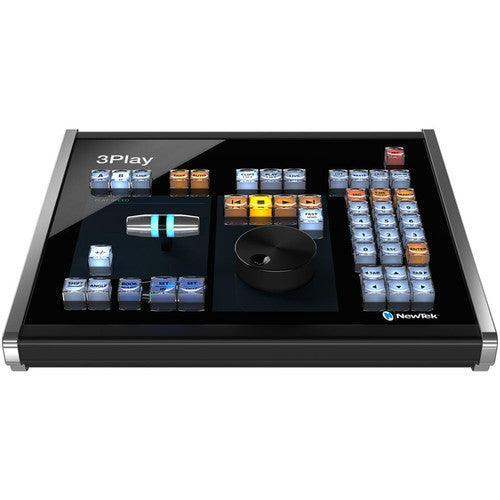

Vizrt 3P1CS 3Play 3P1 Control Surface - FG-002101-R001

Name: Vizrt 3P1CS 3Play 3P1 Control Surface - FG-002101-R001
Brand: Vizrt
SKU: FG-002101-R001
Price: 4195.00 USD
Availability: InStock

Authorized Dealer

$4,195.00

Shipping calculated at checkout.

Vizrt | SKU: FG-002101-R001

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Engineered with a purpose and built with a commitment to ensuring you have everything you need for professional sports production, the NewTek 3Play 3P1 Control Surface provides the most comprehensive set of tools and capabilities of any video replay solution.

IP and SDI Production

3Play 3P1 is a team player—no matter what equipment makes up your production infrastructure. From its natural chemistry with NewTek IP Series and TriCaster TC1 production systems; to its native integration of NDI, NewTek's innovative Network Device Interface technology, and connection to the most prolific IP-based workflow in the industry; to its compatibility with conventional gear running baseband 3G-SDI or HD-SDI video with embedded or analog audio-3Play 3P1 has a championship-level connection with any workflow.

LivePanel Compatibility

NewTek 3Play 3P1 natively supports control from the browser of any compatible networked device via NewTek LivePanel. Available as an optional purchase for 3Play 3P1, LivePanel includes a touchscreen-friendly software control panel and LivePanel Builder for custom user interfaces, with premium customization services also available through NewTek Professional Services.

Intuitive Asset Management

Exercise your clock management skills as you save valuable time logging, organizing, and retrieving content. From tagging events and clips with detailed metadata in a flash using your own custom coding system, to instantly filtering top plays by team, player, type, or period with the intelligent search engine, managing your assets with 3Play 3P1 is fast, efficient, and a fraction of the work from ingest to archive.

Coverage and Capture

Take advantage of unprecedented freedom in planning your coverage, then capture every angle of the action to high-quality, full-resolution QuickTime files. Supporting input both locally via SDI and over IP from any location on your network via NDI, plus synchronized, continuous recording of 4 simultaneous video channels, 3Play 3P1 introduces game-changing possibilities for positioning cameras and acquiring content.

Replay and Play Review

Present your audiences with the best view of cool, critical, and controversial plays-in real time, slow motion, or frame-by-frame-with 2 independent output channels deliverable both locally via SDI and over IP to any NDI destination on your network. With outputs optionally combining for a switcher-style program-preview workflow, the ability to change angles while playback is progress, and support for video layering to include stacking live feeds and replay perspectives, 3Play 3P1 effortlessly accommodates your distinct brand of replay.

Social Media Integration

Take over timelines and feeds without leaving the live environment, sharing real-time highlights and screencaps directly from 3Play 3P1 to your social media accounts. Upload the best shots and clips to Facebook, Twitter, YouTube, and more—complete with comments and hashtags—and provide instant updates for fans and followers on their computers and mobile devices.

Features

3G SDI, hybrid, and end-to-end IP connectivity
Support for up to 4 external inputs and 2 outputs—SDI or NDI
4 multi-viewer outputs
Synchronized, continuous, full-resolution capture
Record and playback simultaneously
Preview all angles simultaneously while recording and playing back video
Show all angles of recording synced on output
Build playlists with full transitions, audio, sound effects, and stinger animations
Per output overlays with positioning and transitions
Integrated dual channel telestration with remote transport control
LivePanel option to build browser-based user interfaces and workflows
Multi-purpose video server with clip preview
Real-time social media export or transcode files for immediate delivery
Import external video, audio, and stills in common formats
Intuitive asset management and tagging system
Automation with custom macro commands
Support for MIDI, GPI, AMP protocol, and much more

Specs

General

Compatibility

Not Specified by Manufacturer

Inputs / Outputs

USB I/O	4 x USB-A 2.0 Integrated Male Input/Output 4 x USB-A 3.0 / 3.1/3.2 Gen 1 Integrated Male Input/Output
Video I/O	4 x RJ45 Input 4 x BNC (3G-SDI) Input 4 x BNC (3G-SDI) Output 1 x HDMI Output 1 x DVI-I Output 1 x DisplayPort Output
Audio I/O	2 x XLR 3-Pin Input 6 x 1/4" Input 2 x XLR 3-Pin Output 2 x 1/4" Output 1 x 1/4" Headphone Output

Power

Power Source

AC Input

Physical

Mounting	1 x Set of Rack Ears
Cable Length	Not Specified by Manufacturer
Dimensions	19.6 x 19 x 3.5" / 49.7 x 48.3 x 8.9 cm
Weight	26.5 lb / 12 kg

Packaging Info

Package Weight	8.9 lb
Box Dimensions (LxWxH)	14 x 12 x 7"
