Visionary Solutions PacketAV DuetD-2 Decoder 4K UHD over IP Cinema Quality Ultra-Low Latency

Visionary Duet has been nothing short of a paradigm shift for networked AV. True convergence; a single platform to support DanteT/AES67 and Video over IP. Building on their success and wide adoption, the next generation of PacketAVr Duet endpoints continue to provide powerful 4K UHD Video and DanteT/AES67 Audio - now over a single Gigabit Ethernet port, with USB-C connectivity and other enhanced features.

Visionary's PoE 4K UHD over IP cinema quality, ultra-low latency [~1 frame - visually lossless], encoders and decoders bypass the constraints of traditional switch matrix distribution systems by continuing to harness the flexibility and scalability of converged IP networks.

With the growing demand for 4K UHD video, professional AV designers and IT directors - in an increasingly converged AV/IT environment - have been using Visionary's products as an alternative to conventional distribution systems.

Visionary's PackeTV and PacketAV products can be deployed on any industry standard IP network. They can be used on existing enterprise IP networks or a physically separate parallel network [private network] to offload traffic, using the same network protocols, methods, and devices but without intermingling of video traffic with data or voice; with equal ease of installation.

Features

Specs

• • Encoding / Decoding
  • Video Codec: JPEG2000 based visually lossless video compression algorithm
  • Audio Codec: Dante / AES67
  • Bit Rates: 50 to 800 Mbps
  • Latency: Ultra-Low Latency, 17ms @ 1080p60 & 4K60 4:2:0, 32ms @ 4K30 4:4:4
  • Streaming Protocols: IP, UDP, TCP, ICMP, IGMP
  • Copy Protection: HDCP 2.2, AES-128 Encryption

    Video
  • Maximum Resolutions:
    High Dynamic Range (HDR)
    4K60 4:2:0 HDR 8 bit
    4K30 4:4:4 HDR 8 bit
    1080p60 4:4:4 HDR 12 bit
    1080p30 4:4:4 HDR 12 bit
  • Input Signal Types (Encoder): 2 x HDMI and 1 x USB-Capable of receiving source input video formats up to 4K60 4:2:0
    (DisplayPort Alt Mode for USB Type-C or Thunderbolt)
  • Output Signal Types:
    Decoder: 1 x HDMI capable of scaling and outputting video formats up to 4K30 4:4:4
    Decoder: 1 x USB-C capable of scaling and outputting video formats up to 1080p60 4:4:4
    Encoder: (HDMI Loop Out) capable of outputting video formats up to 4K60 4:4:4
  • Switcher (Encoder): 2 x HDMI and 1 x USB-C input and 1 x HDMI output
  • Scaler (Decoder): Supports a wide range of resolutions and rates, up to 4K

    Audio
  • Input Signal Types: HDMI Audio, Analog Stereo Audio Dante AES67, Network Audio (Up to 4 Channels)
  • Output Signal Types: HDMI Digital Audio (NLPCM pass-through), Analog Stereo Audio, Dante
  • Digital Formats: Dolby Digital Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos
  • Analog Formats: Stereo 2-channel
  • Analog-to-Digital Conversion: 24-bit 48kHz
  • Digital-to-analog Conversion: 24-bit 48kHz
  • Dante/AES67: 24-bit 48 kHz
  • Analog Output Volume Adjustment: -80 to +20 dB

    Communication % Control of External Devices
  • Ethernet: Network connectivity for control and IP traffic pass-through to remote LAN devices
  • USB: USB 2.0 host or device signal extension and routing
  • GPIO: For extension and control of third-part devices
  • Serial / RS-232: Bi-directional device control and monitoring
  • IR: Device control via infrared
  • HDMI: HDCP 2.2, EDID (encoder), CEC (decoder)

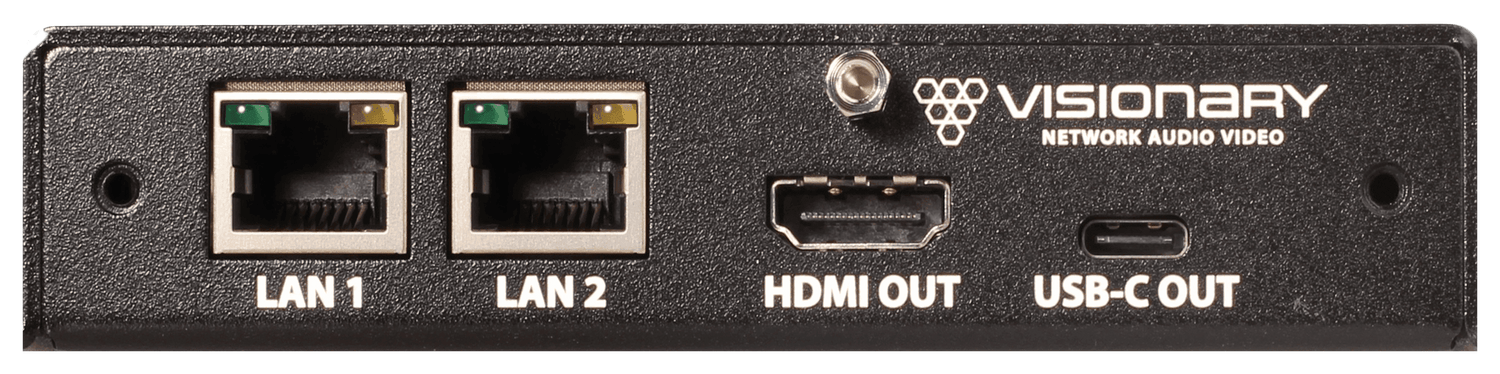

    Connectors
  • LAN 1: 8-pin RJ-45 connector, female; 100BASE-TX / 1000BASE-T Ethernet port / PD Port
  • LAN 2: 8-pin RJ-45 connector, female; 100BASE-TX / 1000BASE-T Ethernet port / PSE port
  • HDMI Input 1 and 2 (Encoder): 2 x HDMI Type A Connectors, female; HDMI Digital video/audio Inputs
  • HDMI Outputs (Encoder Loop through and decoder output): HDMI Type A Connectors, female; HDMI Digital video/audio inputs
  • USB-C: Encoder Input: 1 x USB Type C Connector, female, Decoder Output: 1 x USB Type C Connector, female

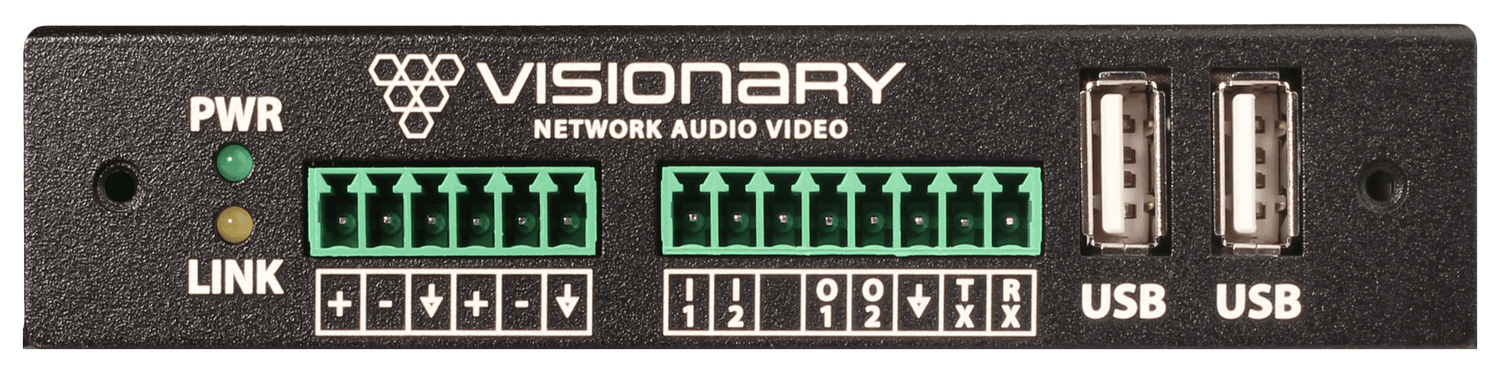

  • 6 Pin Euroblock 3.81mm Pitch Connector: Shared GPIO / RS-232 / IR Ports

    Power
  • Power Consumption: 12 W Typical


• Warranty:

  • 1 Year Extended Warranty
