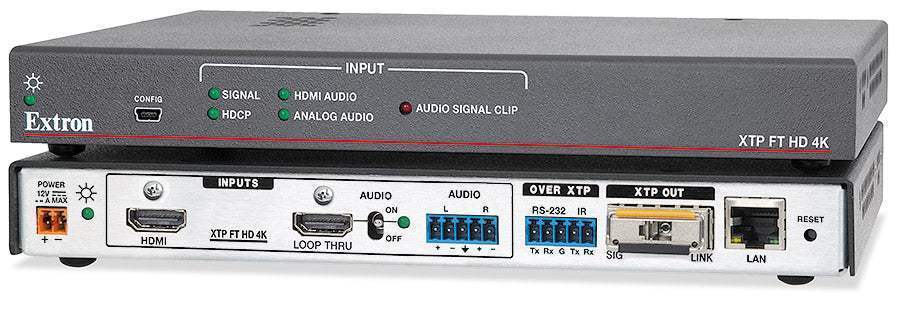

Extron XTP FT HD 4K SM HDMI Transmitter - Singlemode

The Extron XTP FT HD 4K is an XTP^® transmitter that enables extension of video, audio, bidirectional control, and Ethernet over one fiber optic cable. This HDCP-compliant transmitter supports video signals at resolutions up to 4K with 4:4:4 color sampling. For streamlined integration, it features an HDMI loop-through with selectable audio control and enables embedding of analog stereo audio signals. Ethernet extension and insertion of bidirectional RS‑232 and IR allow LAN access and AV device control at remote locations. Signals can be sent up to 500 meters (1,640 feet) over OM4 multimode fiber optic cable and up to 10 km (6.21 miles) when using singlemode cable. The XTP FT HD 4K is ideal for XTP Systems^® that require secure, long-haul distribution of pixel-for-pixel video, audio, and control signals.

The XTP FT HD 4K transmitter uses Extron all-digital technology to deliver pixel-perfect HDMI video signals at resolutions up to 4K. The features include support of data rates up to 10.2 Gbps, Deep Color up to 12‑bit, 3D, and HD lossless audio formats. To ensure device compatibility and optimal signal transmission between devices, DDC channels are actively buffered, maintaining continuous EDID and HDCP communication with the source and display. As an added benefit, the XTP FT HD 4K provides an active HDMI output that includes selectable support of embedded audio. This allows connection of a local monitor for operation visibility and troubleshooting.

Built for Professional Integration

To enhance and simplify integration of digital and analog AV devices, XTP endpoints utilize two Extron technologies: EDID Minder and Key Minder. EDID Minder automatically manages EDID communication between input sources and display devices, to ensure that sources power up properly and reliably send content for display. For HDMI and DisplayPort signals with protected content, Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching. If HDCP-encrypted content is sent to a non‑compliant display, a full-screen green signal is transmitted to the destination, providing immediate visual confirmation that protected content cannot be viewed on the selected display.

In addition to high performance video, the transmitter extends audio signals over the one cable. The XTP FT HD 4K supports multiple embedded digital audio formats with HDMI embedded audio available on the HDMI connector. It includes the capability to embed separate balanced/unbalanced analog stereo audio signals in place of HDMI-embedded audio for extended transmission. To allow precise control of the audio, the transmitter features audio input gain and attenuation adjustment and muting capabilities. This flexibility simplifies system design and reduces the number of cable runs between endpoints.

The XTP FT HD 4K can be used with an XTP receiver or scaling receiver for simple point-to-point installations or in combination with an XTP CrossPoint^® matrix switcher for AV signal switching and distribution applications. Integrated with an XTP CP Fiber I/O board mounted in the matrix switcher, the XTP FT HD 4K provides streamlined transmission of 4K video. This design takes advantage of system level controls and the ability to extend inserted RS‑232 and IR between the equipment room and a remote endpoint.

The XTP transmitter includes an RS‑232 and IR insertion port, allowing bidirectional control of an AV device using the same fiber optic cable. This feature simplifies integration with a control system for managing the source device. In addition, centralized 10/100 Ethernet communication can be implemented via the Ethernet extension port to reduce the number of independent network drops required within a system.

Multimode and Singlemode Models Available

The transmitter provides industry standard LC‑type connectivity and is available in two formats: multimode and singlemode. The XTP FT HD 4K MM model supports OM4 multimode fiber optic cable, which is typically used within office towers, retail centers, and larger houses of worship with moderate-range transmission distances of up to 500 meters (1,640 feet). The XTP FT HD 4K SM model supports singlemode cable, offering long-range transmission capability up to 10 km (6.21 miles). It is used in large facilities, including digital signage and staging applications as well as connecting over very long distances between locations, such as corporate and university campuses. Because transmission of content is inherently secure and immune to outside interference, fiber applications are also favored in government, military, medical, and other sensitive environments.

Extron XTP Systems

Extron XTP Systems provide a completely integrated switching and distribution solution for multiple digital and analog formats. They support local connectivity as well as extended transmission capability for sending high resolution video, audio, RS‑232, and Ethernet up to 330 feet (100 meters) over a shielded CATx cable and even greater distances over fiber optic cabling. Each system is HDCP compliant and delivers ultra‑fast, highly reliable digital switching with Extron's SpeedSwitch^® Technology.

At the heart of a system is an XTP CrossPoint matrix switcher. The modular matrix switchers are expandable from 4x4 to 64x64, depending on frame size, and can be populated with a wide variety of XTP I/O matrix boards. Input and output boards provide direct HDMI, SDI, DVI, VGA, video, and audio connections to local sources and displays, and signal extension to remote endpoints when using XTP transmitters and receivers. The matrix switcher can also provide power to a remote XTP device over CATx cabling, depending on transmitter model.

The online XTP System Builder gives convenient access for complete system design. The tool also features a printable bill of materials, pricing, and quote submittal. Once the order is confirmed and received, the included XTP System Configuration Software enables easy setup and configuration right out of the box.

To configure, operate, and monitor the system in real time, user-friendly control software offers a complete view of all XTP devices from a computer. With hot‑swappable modular components, a wide selection of XTP transmitters and receivers, and advanced 24/7 system monitoring, XTP Systems are designed to provide continuous, trouble-free operation in the most critical applications.

Features

• Transmits video, audio, bidirectional RS-232 and IR control, and Ethernet over one fiber optic cable — The XTP FT HD 4K provides high reliability and maximum performance over long distances on fiber optic cabling.
• Supports computer and video resolutions up to 4K — Resolutions up to 4K/24 4:4:4, UHD/30 4:4:4, and UHD/60 4:2:0 over one fiber are supported.
• HDMI loop-through with selectable audio — The XTP FT HD 4K features an active HDMI output with support of embedded audio for connection to a local monitor.
• HDCP compliant — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
• Bidirectional RS-232 and IR insertion for AV device control — Bidirectional RS-232 control and IR signals can be inserted into the XTP output, allowing remote AV devices to be controlled without the need for additional cabling.
• Ethernet extension — Centralized 10/100 Ethernet communication can be implemented via an Ethernet pass-through port to reduce the amount of independent network drops required within a system.
• Supported HDMI 1.4 specification features include data rates up to 10.2 Gbps, Deep Color up to 12‑bit, 3D, and HD lossless audio formats
• User-selectable HDCP authorization — Allows the unit to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non‑HDCP mode.
• Comprehensive EDID management — Use XTP System Configuration Software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.1 software is available for advanced EDID editing and creating custom EDID files.
• EDID Minder^® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
• Key Minder^® continuously verifies HDCP compliance for quick, reliable switching — Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source to multiple displays.
• HDCP Visual Confirmation — When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
• Internal color bars test pattern for setup and calibration
• Supports multiple embedded audio formats — The XTP FT HD 4K is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI devices.
• Selectable analog stereo audio input embedding — By embedding stereo audio into the signal stream, the transmitter supports balanced/unbalanced audio for extended transmission. This feature enables direct connection of separate stereo audio signals from a laptop, Blu-ray player, or other device.
• Audio input gain and attenuation adjustment — Allows the level of gain or attenuation to be set, eliminating noticeable volume differences when switching between sources.
• Supports EDID and HDCP transmission — DDC channels are actively buffered, allowing continuous communication between source and display.
• Available as a multimode model for moderate-range transmissions up to 500 meters (1,640 feet) and a singlemode model for extreme distances up to 10 km (6.21 miles)
• Industry standard LC connector provides reliable physical connectivity and precise fiber core alignment
• LED indicators for signal presence, HDCP, and power — Provides visual indication of system status for real‑time feedback and monitoring of key performance parameters.
• LC connector signal and link status LEDs for XTP port — Provides a means for validating signal flow and operation from transmitter to receiver, allowing quick identification of connectivity issues.
• Compatible with all XTP products — XTP Systems provide a flexible signal switching and distribution solution that is completely integrated, ensuring reliable routing of multiple digital and analog formats.
• Front panel USB configuration port — Provides convenient access for setup, configuration, and firmware updates.
• Easy setup and commissioning with Extron XTP System Configuration Software
• DoDIN APL Approved Product available — This product is available as a Department of Defense Information Network Approved Product version upon request. Please contact Extron with your specific needs.
• 1" (2.5 cm) high, half rack width metal enclosure — Compact, low profile enclosure for discreet placement and concealment.
• Includes LockIt^® cable lacing brackets — Securely fastens HDMI or USB C^® cables to a device, eliminating risk of disconnection.
• External Extron Everlast™ power supply included, replacement part #70-1174-01 — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty

XTP FT HD 4K
specification
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4, 4:2:2, or 4:2:0
Color bit depth1	8 bits per color
Signal Type	DisplayPort 1.1, DVI 1.0, HDMI 1.4a, HDCP 1.4
Max. video data rate	8.91 Gbps (2.97 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
NOTE     The XTP FT HD 4K transmitter can be used with XTP receivers, with a fiber optic cable linking the transmitter and receiver, or with other Extron XTP products.
NOTE     These transmitters are class 1 laser products. They meet the safety regulations of IEC 60825-1.
Video
NOTE     Extron strongly recommends compatibility testing while designing, and before installing, any 3D system. There are several unique 3D formats in use by source devices and display manufacturers. The level of 3D product support is governed by pixel clock, signal format, and communication between source and sink devices. Please contact an Extron Applications Engineer for more information.
Gain	Unity
Resolution range	Up to 2560x1600 @ 60 Hz*, 1080p @ 120 Hz or 4K (4096x2160) @ 24 Hz, UHD (3840x2160) @ 30 Hz, UHD @ 60 Hz with 4:2:0 chroma subsampling * reduced blanking
Signal Type	Single-link HDMI (or DVI-D or DisplayPort)
Color bit depth	8, 10, or 12 bits — subject to the maximum data rate limit
Maximum data rate	8.91 Gbps (2.97 Gbps per color)
Maximum pixel clock	300 MHz
Formats	RGB and YCbCr digital video
Standards	DisplayPort 1.1, DVI 1.0, HDMI 1.4a, HDCP 1.4
Video input and loop-through
Number/signal type	1 single link HDMI (or DVI-D or DisplayPort) input 1 single link HDMI (or DVI-D) loop-through
Connectors	2 female HDMI type A: 1 input, 1 loop-through
Optical fiber interconnection between transmitter and receiver
Number/signal type	1 set of proprietary signals
Connectors	1 LC fiber connector
Operating distance
NOTE     Operating distance is approximate. These are typical maximum distances that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
Singlemode	10 km (6.21 miles) with singlemode cable
Multimode	200 m (650') with 62.5 μm OM1 multimode cable 300 m (980') with 50 μm OM2 multimode cable 400 m (1312') with 50 µm OM3 2000 MHz bandwidth laser optimized multimode cable 500 m (1640') with 50 µm OM4 4700 MHz bandwidth laser optimized multimode cable
NOTE     Multimode units are compatible with OM1 and OM2 multimode cables, but at reduced operating distances.
Nominal peak wavelength
Singlemode	1490 nm, 1550 nm, 1310 nm
Multimode	850 nm, 980 nm, 780 nm
Data rate	8.5 Gbps
Transmission power
Singlemode	-6 dBm, typical
Multimode	-5 dBm, typical
Maximum receiver sensitivity
Singlemode	-15 dBm, typical
Multimode	-13 dBm, typical
Optical loss budget
Singlemode	9 dB, maximum
Multimode	8 dB, maximum
Audio
Gain	Unbalanced output: 0 dB; balanced output: +6 dB
Frequency response	20 Hz to 20 kHz, ±0.5 dB
THD + Noise	<0.1%, 20 Hz - 20 kHz at nominal level
S/N	>90 dB, at maximum balanced output (unweighted)
Crosstalk	≤-80 dB @ 1 kHz, fully loaded
Stereo channel separation	>80 dB @ 1 kHz
Sampling Rates	32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Bit depths	16, 20, 24 bit
Audio input
Number/signal type	1 analog stereo, balanced/unbalanced or 1 digital audio, de-embedded from HDMI
Connectors	(1) 3.5 mm captive screw connector, 5 pole 1 female HDMI type A (shared with video input)
Source formats	LPCM up to 7.1/24-bit/192 kHz, Dolby Atmos™, Dolby TrueHD, Dolby Digital Plus™, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio™, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel, analog stereo
Impedance	10k ohms, unbalanced, 20k ohms balanced
Nominal level	+4 dBu (1.23 mVrms) balanced, -10 dBV (316 mVrms) unbalanced
Maximum level	+21 dBu balanced, +15 dBu unbalanced
Input gain adjustment	-18 dB to +24 dB, 1 dB steps, adjustable
NOTE     0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
Communications — transmitter
USB control ports	1 front panel female mini USB B
USB standards	USB 2.0, low speed
Program control	Extron control/configuration program for Windows® Extron Simple Instruction Set (SIS™)
Communications — external device (pass-through, unidirectional or bidirectional)
Serial control pass-through port	RS-232 (+5 V) via a (1) 3.5 mm, 5 pole captive screw connector (uses 3 poles) (connector is shared with the IR control port)
Baud rates	Up to 115200 baud
Protocol	Data bits = 5 - 8 Stop bits = 1 or 2 Parity = odd, even, none Flow control = XON, XOFF, none
Serial control pin configuration	1 = Tx, 2 = Rx, 3 = GND
IR control port	(1) 3.5 mm, captive screw connector, 5 pole (uses 3 poles) (connector is shared with the RS-232 control port) TTL level (0 to 5 V) modulated infrared control from 30 kHz up to 56 kHz
IR control pin configuration	3 = GND, 4 = IR Tx, 5 = IR Rx
Ethernet pass-through port	1 female RJ-45 connector
Ethernet data rate	10/100Base-T, full duplex with autodetect
General
Power supply	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1.5 A, 18 watts
Power consumption
Device	8.1 watts
Device and power supply	10 watts
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, vents
Thermal dissipation
Device	26.2 BTU/hr
Device and power supply	32.8 BTU/hr
Mounting
Rack mount	Yes, with optional 1U high rack shelf
Furniture mount	Yes, with optional under-desk mounting kit
Enclosure type	Metal
Enclosure dimensions	1.0" H x 8.75" W x 6.0" D (half rack wide) (2.5 cm H x 22.2 cm W x 15.2 cm D) (Depth excludes connectors.)
Product weight	1.6 lbs (0.7 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance	CE, c-UL, UL, IEC 60825-1, C-tick, FCC Class A, ICES, VCCI Complies with the appropriate requirements of RoHS and WEEE.
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(5749-D13)
